Compact Text Display for Machine-Level HMI

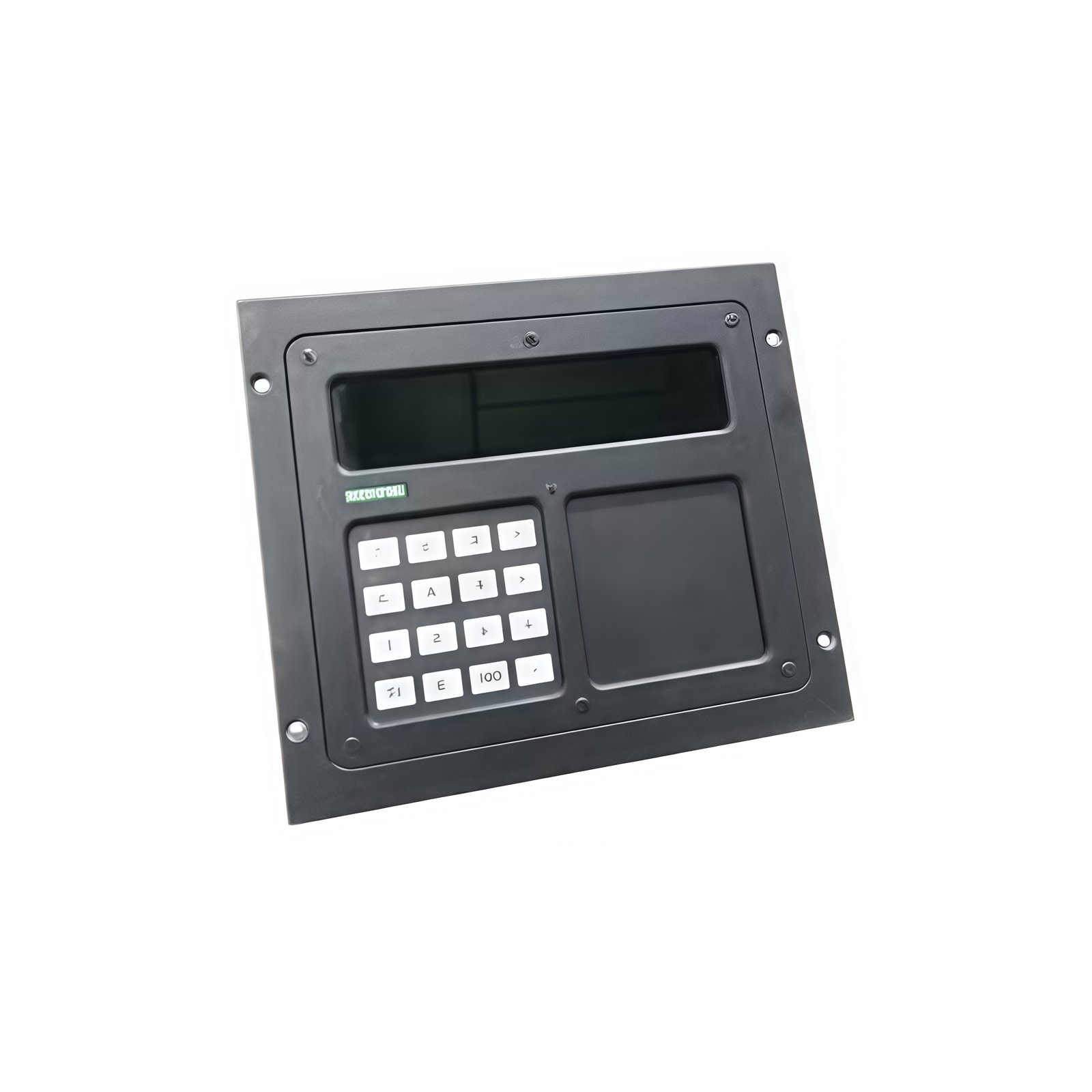

This text display panel provides a simple yet effective operator interface for machine control. The 6AV1142-0BA10 presents process information clearly on its backlit LCD screen. It uses a membrane keypad with tactile feedback for reliable operator input. The panel belongs to the Siemens OP3 series, offering a compact form factor. Its straightforward design suits small to medium-sized automation systems perfectly.

Technical Specifications and Physical Attributes

The 6AV1142-0BA10 features a 2-line LCD display with 16 characters per line. It operates on a 24 V DC power supply for industrial compatibility. The panel includes an RS-485 interface for seamless connection to PLCs and controllers. It also offers 8 function keys for quick access to critical operations. The unit measures approximately 92 mm in width and 54 mm in height. It weighs about 0.3 kg for easy installation. Furthermore, the 6AV1142-0BA10 operates within a temperature range of 0 °C to 50 °C. Its IP65 front protection ensures resistance to dust and water.

Installation and Application Guidance

This display panel serves as a cost-effective HMI solution for simple machine control. First, mount the 6AV1142-0BA10 securely into the designated panel cutout. Then, connect the RS-485 communication cable to the PLC or controller. For power, wire the 24 V DC supply to the appropriate terminals. Finally, configure the display parameters using the appropriate programming software. The 6AV1142-0BA10 excels in conveyor systems, packaging machines, and small process skids.
