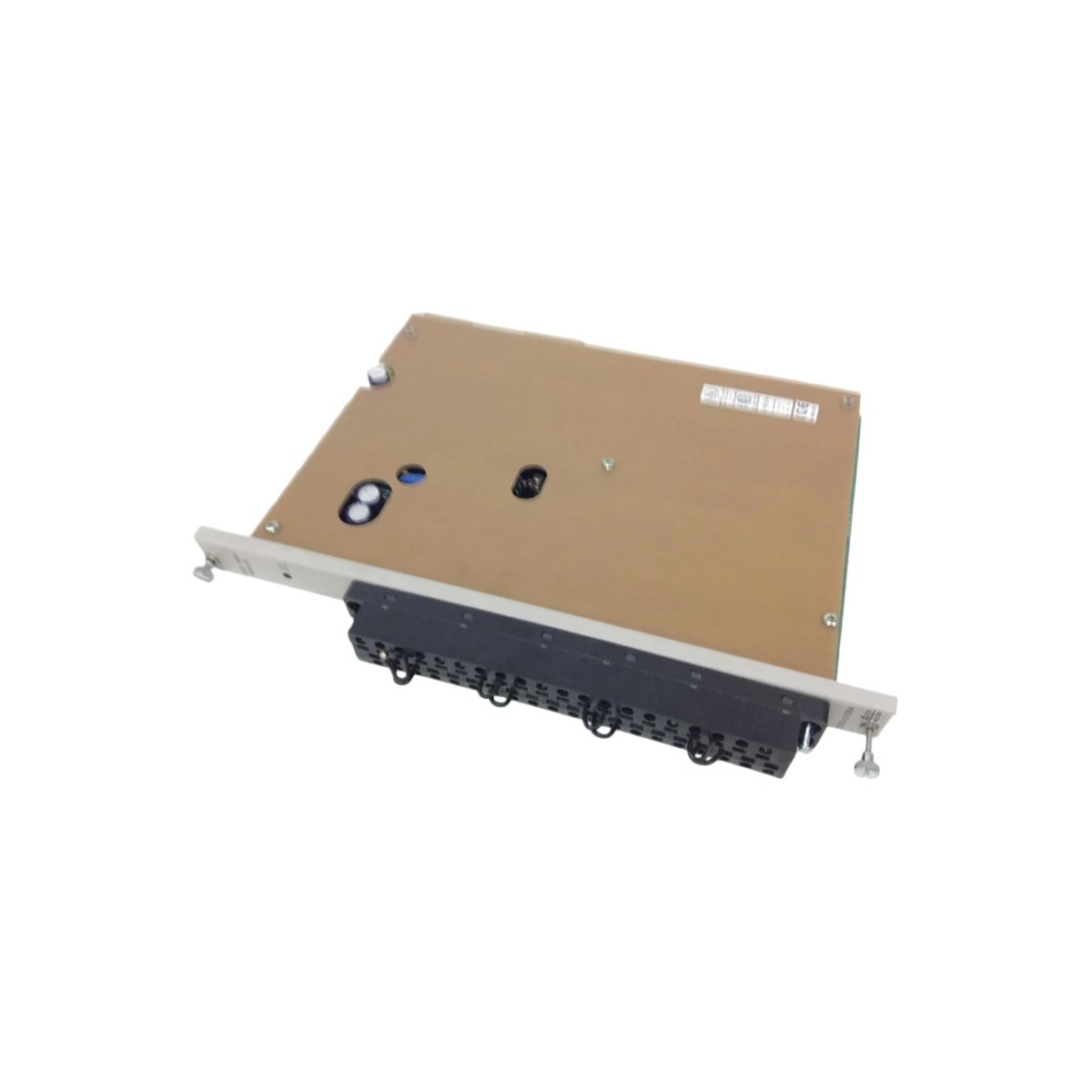

The Siemens 505-6108 converts analog field signals into digital data for PLCs. This module belongs to the Siemens 505 series product family. You will find this input board in process control and factory automation applications. It handles 4-20mA current loop signals from sensors and transmitters.

Manufacturer: Siemens
Series: 505 (formerly TI505)
Category: Analog Input Module (8-Channel)

Physical Dimensions and Weight

The Siemens 505-6108 measures 12.0 inches in length. Its width reaches 1.6 inches for single-slot occupancy. The board thickness sits at 5.5 inches including components. This standard form factor fits into any 505 series rack. The total weight comes to approximately 0.4 kilograms.

Technical Specifications and Channel Configuration

This analog input module provides eight differential input channels. Each channel accepts 4-20mA signals from field devices. The module converts each signal with 12-bit resolution. Therefore, you get 4,095 discrete steps across the full range. The update time for all channels reaches 25 milliseconds.

Energy Storage and Signal Conditioning

The Siemens 505-6108 includes a capacitor bank for each input channel. These capacitors store 0.1 microfarads per channel for noise filtering. A common mode rejection filter removes electrical interference effectively. Consequently, you get clean, stable readings from noisy industrial environments. The board also provides 24V DC loop power for two-wire transmitters.

Interface and Connectivity

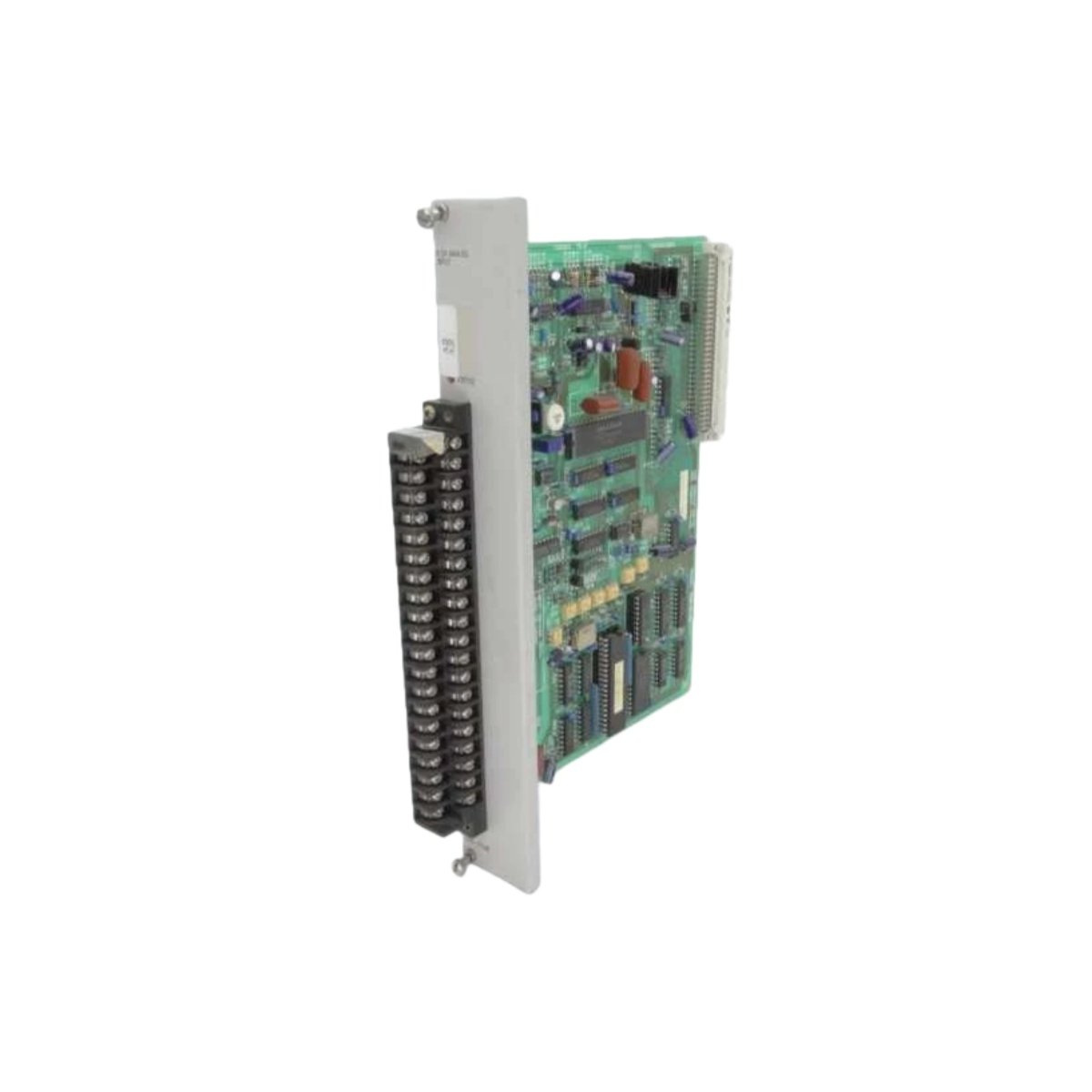

This input module uses a 40-pin edge connector for backplane communication. A removable terminal block accepts field wiring for all eight channels. Each channel has two terminals for signal positive and negative. LED indicators show active communication with the CPU. You can diagnose channel status without special tools.

Component Layout and Construction

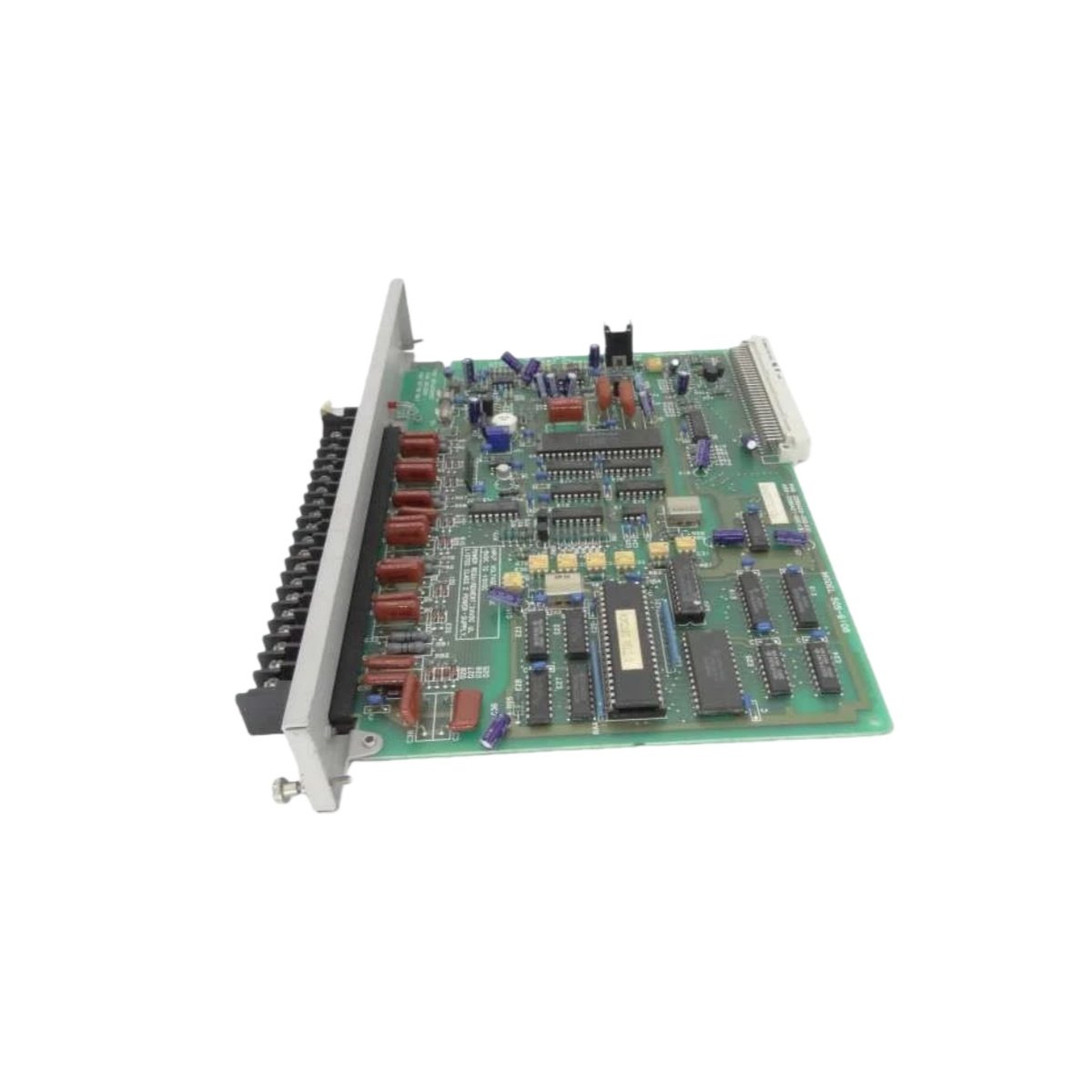

The Siemens 505-6108 contains 45 discrete components on a four-layer PCB. Key parts include eight precision resistors and twelve ceramic capacitors. An onboard microcontroller handles all analog-to-digital conversion tasks. All components meet industrial temperature ratings from 0°C to 60°C. This robust construction ensures reliable operation for many years.

Integration and Compatibility

Use the Siemens 505-6108 with any 505 series CPU module. It works alongside 505-6104 or 505-6110 I/O boards. This analog input supports all standard 505 series rack configurations. For similar industrial control solutions, explore the RMS-TSG-TZ-C Static Trip device [link removed per instruction]. Order this original Siemens module to expand your analog input capacity today.
