Technical Specifications and Output Features

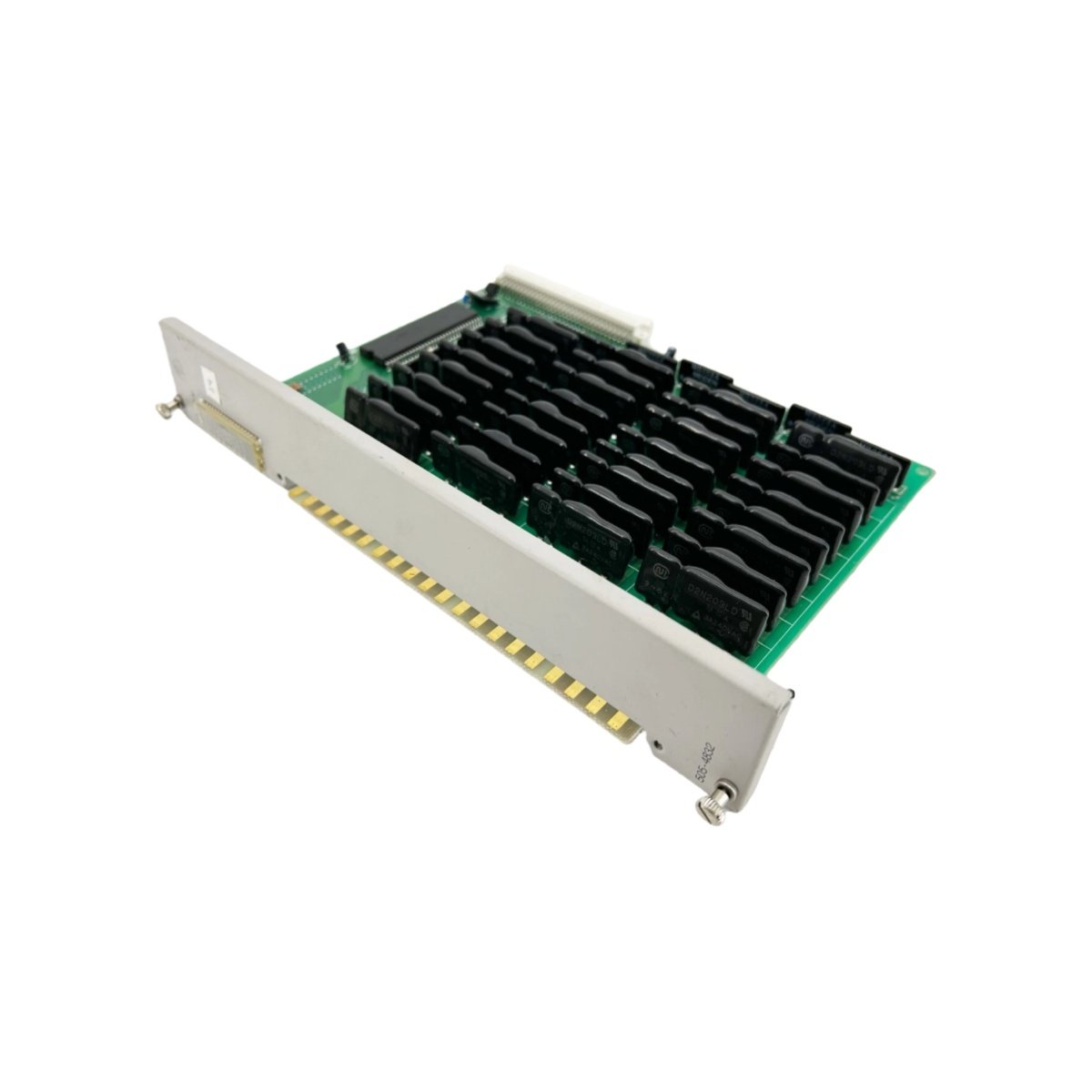

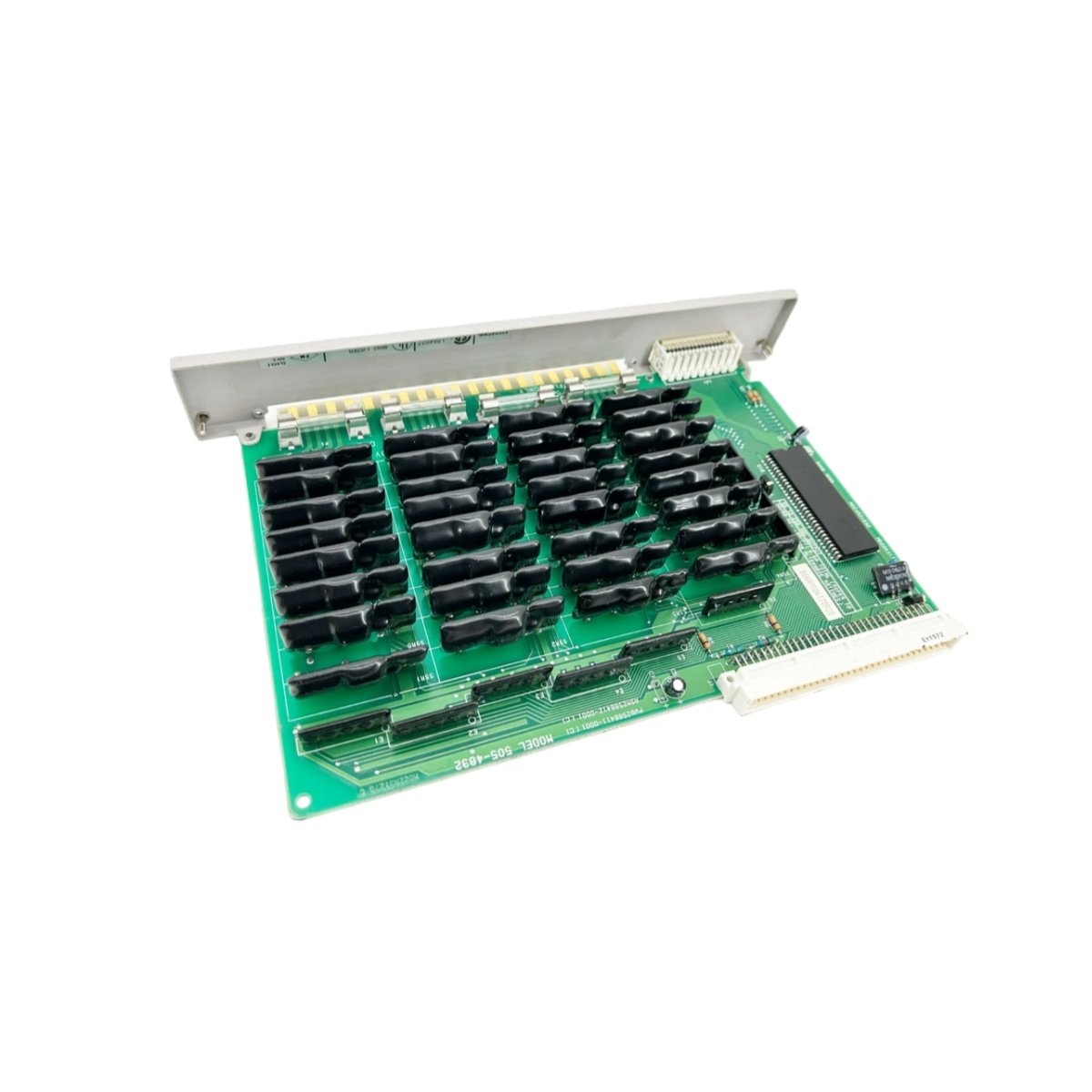

The Siemens 505-4832 digital output module belongs to the SIMATIC 505 product family and offers high-speed switching for demanding control applications. This module provides 16 digital output channels with a rated output current of 1A per channel at 24V DC. It features eight SPDT output channels, each capable of handling up to 1A. The module communicates via Profinet and also supports Modbus protocol for flexible network integration. Its dimensions measure approximately 115 mm x 90 mm x 90 mm and it weighs about 0.4 kg.

Functional Capabilities

The 505-4832 module actively drives outputs to control actuators, relays, and other field devices with precision. It converts the PLC’s logic signals into electrical power suitable for industrial loads. A built-in diagnostic system provides real-time monitoring and alerts for potential issues. The module features LEDs that indicate output states and fault conditions. Its industrial-grade plastic construction ensures durability in harsh manufacturing environments.

Application Scenarios

This digital output module suits manufacturing facilities requiring reliable control of multiple output devices. It enables precise on/off control in conveyor systems, packaging lines, and process automation. The 505-4832 integrates seamlessly into existing SIMATIC 505-based architectures. Its robust design ensures dependable operation across a wide temperature range
