Technical Overview of the DC Output Module

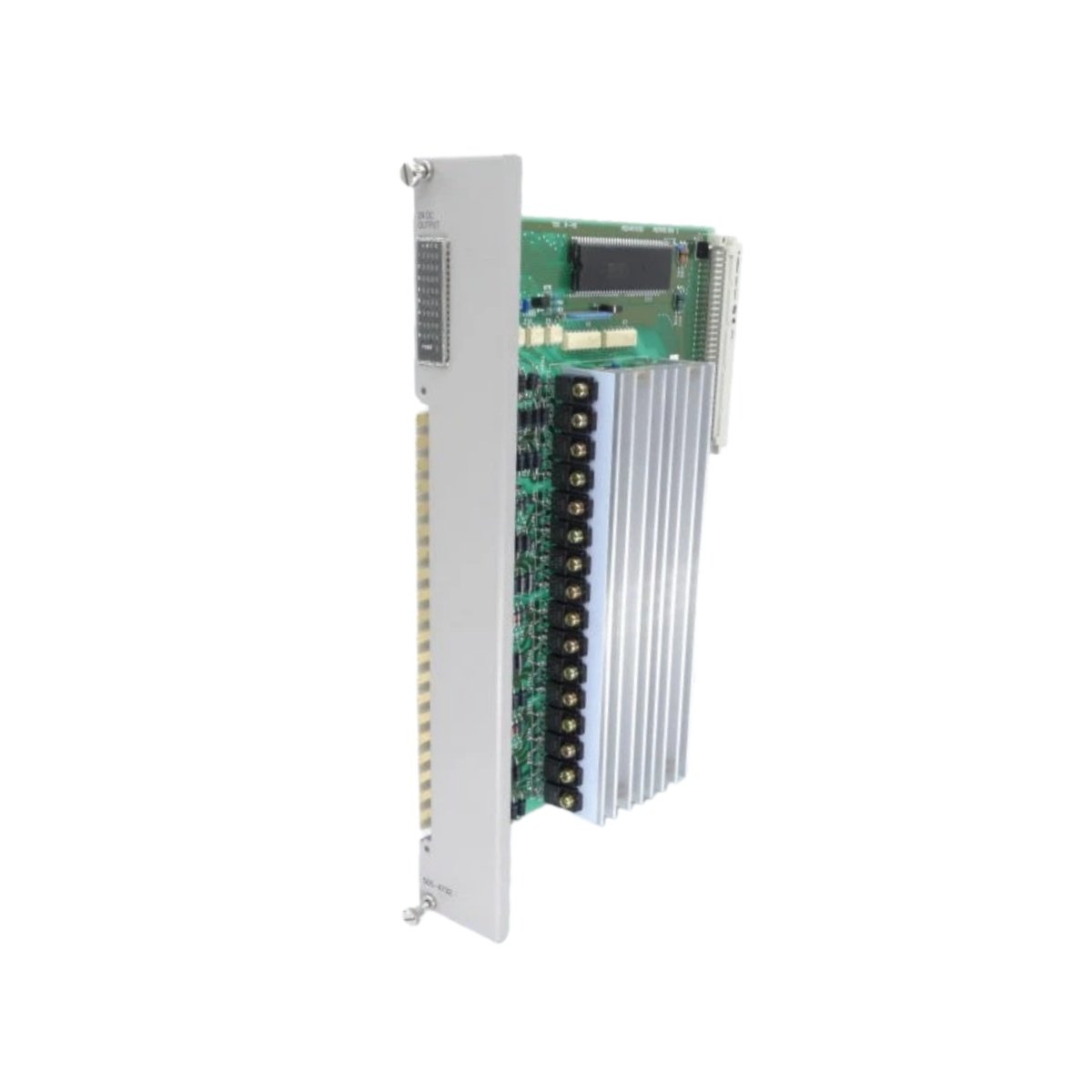

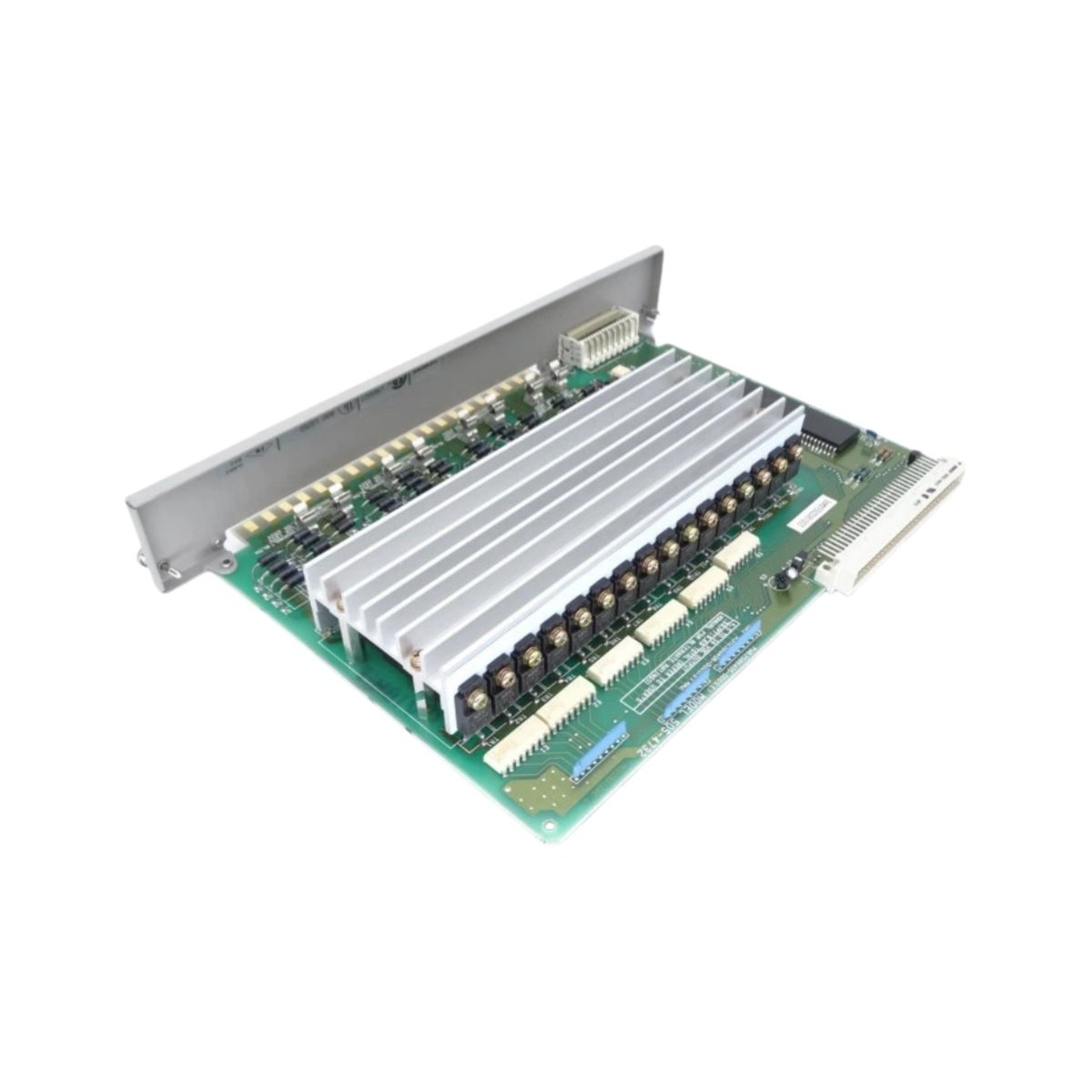

The Siemens 505-4732 provides a DC output module for the SIMATIC TI545 programmable controller. This module drives actuators, relays, and indicator lamps in industrial applications. It converts CPU logic signals into field-level switching actions. The design supports 24V DC outputs with short-circuit protection.
Key Technical Specifications
This section lists the precise parameters for the Siemens 505-4732 DC output module. Use these figures to verify compatibility with your field devices.
| Parameter | Specification |
|---|---|
| Part Number | 505-4732 |
| Type | DC Output Module |
| Product Family | SIMATIC TI545 |
| Number of Outputs | 16 Digital Outputs |
| Output Voltage | 24V DC |
| Output Current | 0.5 A per channel (resistive load) |
| Short-circuit Protection | Electronic, per channel |
| Status Indicators | LEDs for each output |
| Isolation | 1500V DC between field and logic |
| Dimensions (W x H x D) | Approx. 250 x 40 x 200 mm |
| Weight | Approx. 0.8 kg |
| Compatibility | SIMATIC TI545 PLC racks |
Application and System Integration
This output module inserts into the TI545 rack backplane. It drives solenoids, contactors, and signal lamps in industrial systems. The Siemens 505-4732 transmits output commands from the CPU to field devices. Each channel includes a status LED for visual confirmation. Consequently, operators can quickly identify output states.
Reliability and Performance Characteristics
The electronic short-circuit protection prevents damage from wiring faults. This feature ensures stable operation even in demanding conditions. The module’s robust construction handles industrial vibration and temperature variations. Engineers trust the Siemens 505-4732 for its proven field reliability.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
