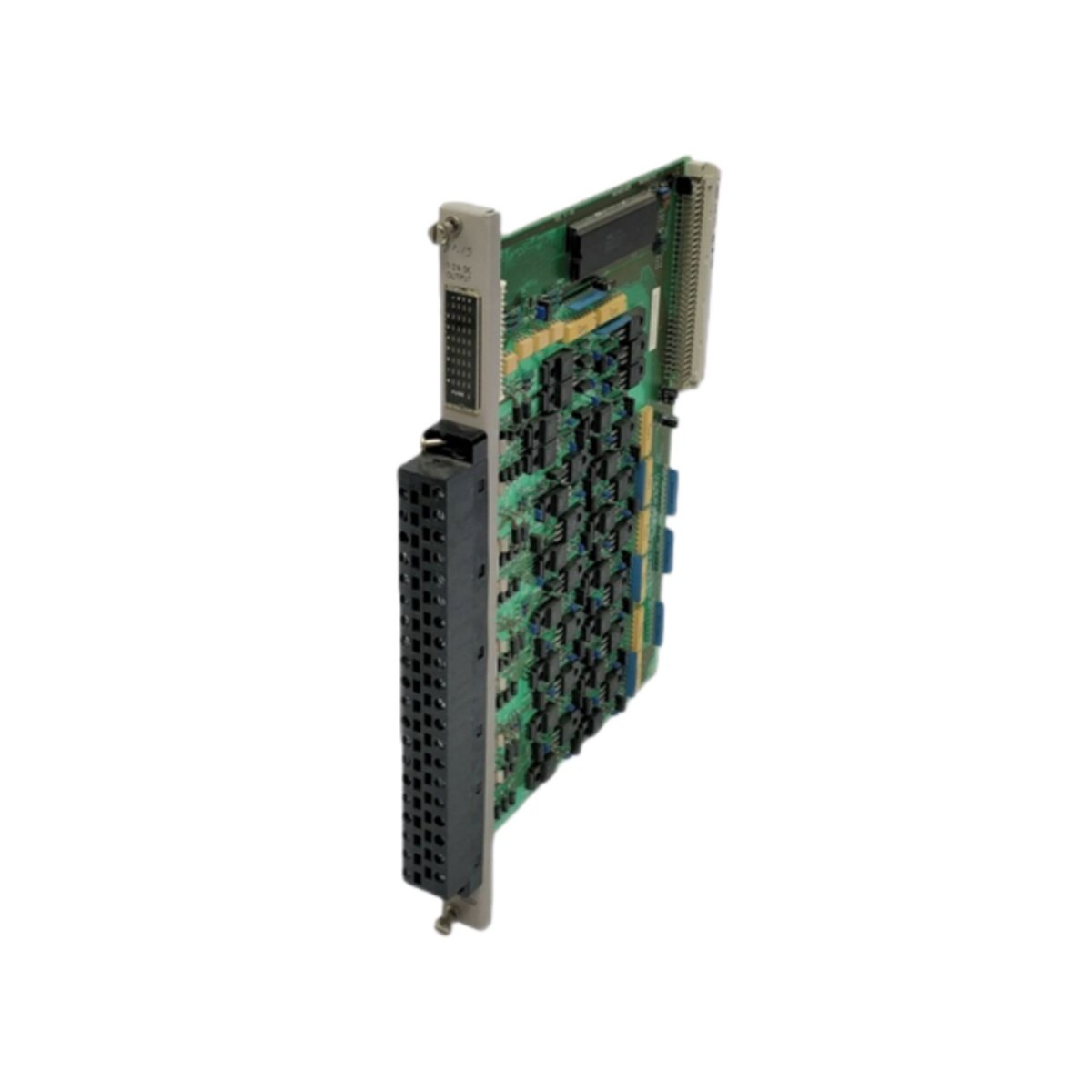

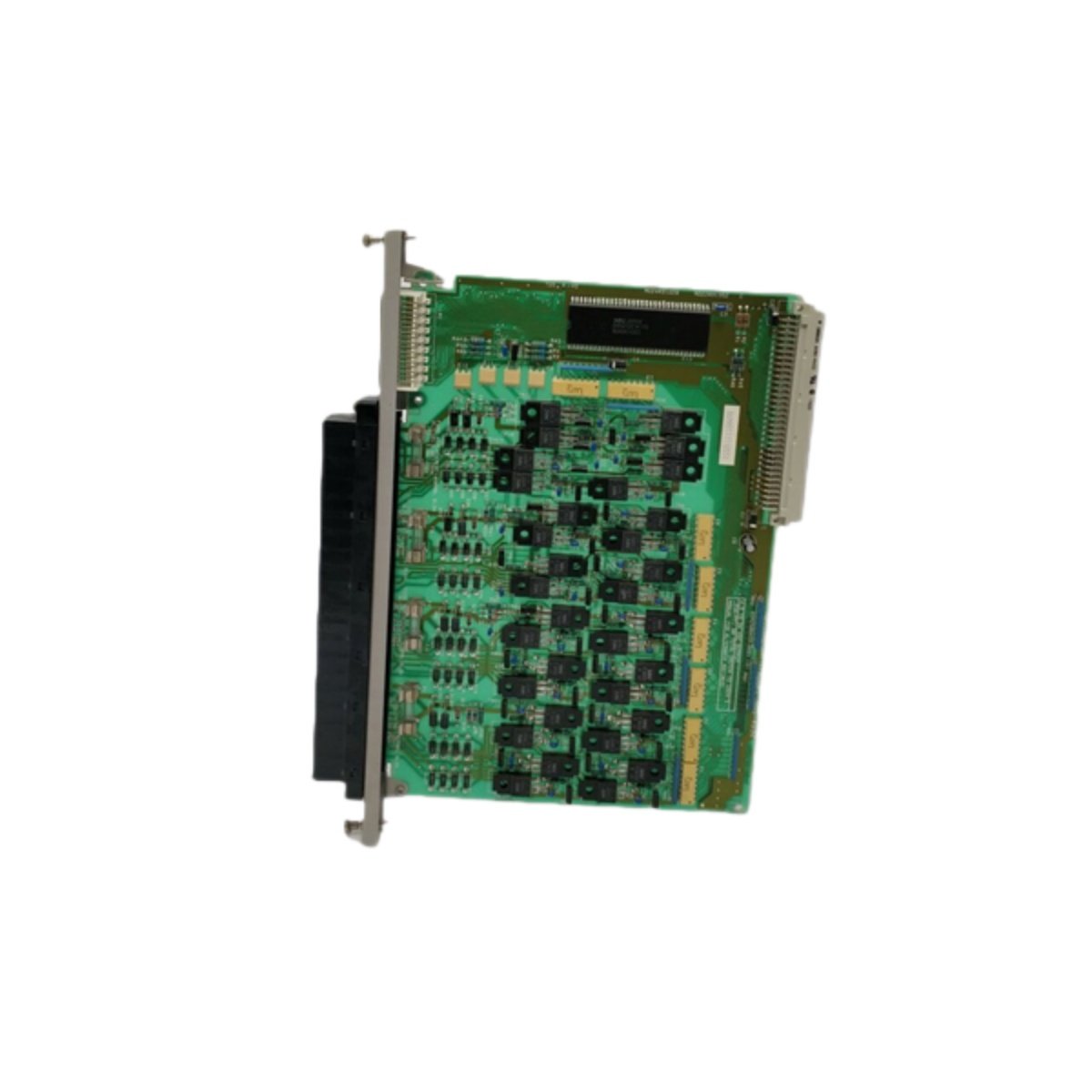

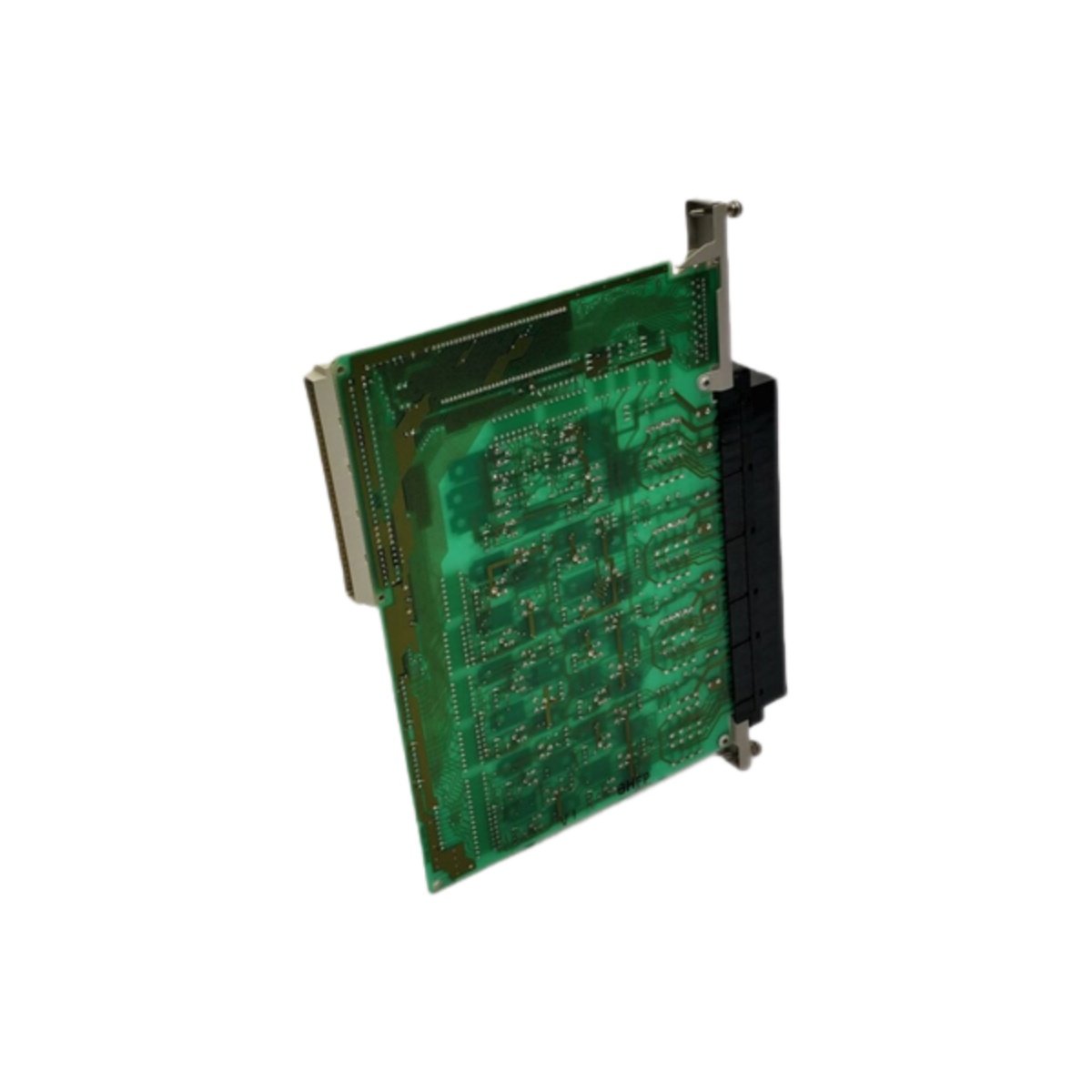

This digital output module provides high-density switching for industrial actuators and indicators. It integrates seamlessly into the Siemens TI505 programmable controller platform. The unit controls up to thirty-two independent load circuits from a single chassis slot. Users can drive solenoids, pilot lamps, and solid-state relays with reliable performance.

Output Channel Configuration and Electrical Specifications

This module features thirty-two sourcing output channels for positive-switching applications. Each channel delivers 0.5 A of continuous current at 24 V DC nominal voltage. The total current per common group reaches 4 A for combined load management. The output voltage ranges from 10 V to 30 V DC for flexible system integration. Each channel includes built-in overcurrent protection for reliable operation.

Switching Performance and Response Times

The 505-4532 achieves output switching times of 0.1 ms from on to off state. Turn-on delay measures approximately 0.05 ms for high-speed control applications. This rapid response suits packaging machinery and high-frequency counting systems. Each output also includes built-in transient suppression for inductive load protection. This suppression extends the operational lifespan of connected field devices. Consequently, users experience reduced maintenance costs and fewer unexpected failures.

Backplane Communication and Status Feedback

This module communicates with the CPU through the TI505 backplane bus system. It maps outputs directly to the PLC memory for straightforward programming. The unit provides real-time feedback on each channel’s switching state. A green LED per channel illuminates when the output remains active. A red “Fault” LED signals overcurrent or overtemperature conditions. These indicators simplify field troubleshooting without requiring software tools.

Channel Grouping and Load Management

The module organizes its thirty-two outputs into eight isolated groups of four channels each. This grouping enables independent load management for different voltage requirements. Each group includes a dedicated common return terminal for simplified wiring. Users can connect loads with varying current demands across different groups. This flexibility accommodates diverse field devices within a single module. Furthermore, group isolation prevents fault propagation between different sections.

Energy Consumption and Thermal Management

The module draws 200 mA at 5 V DC from the backplane for internal logic. External load power comes from the field supply via dedicated terminals. The unit dissipates approximately 5 W under full operational load. Natural convection cooling maintains safe temperatures across all output channels. Consequently, the operating temperature range spans 0 °C to 60 °C for standard factory environments. Humidity tolerance reaches 10% to 95% without condensation concerns.

Installation and Wiring Accessibility

This module features a removable terminal block for simplified field wiring maintenance. Installers can pre-wire the connector before inserting it into the chassis slot. The unit accepts wire gauges from 0.2 mm² to 1.5 mm² for flexible installation. A secure locking mechanism prevents accidental dislodgement during vibration. The housing carries an IP20 rating for protection against solid objects. This robust design suits conveyor systems, packaging machinery, and material handling equipment.
