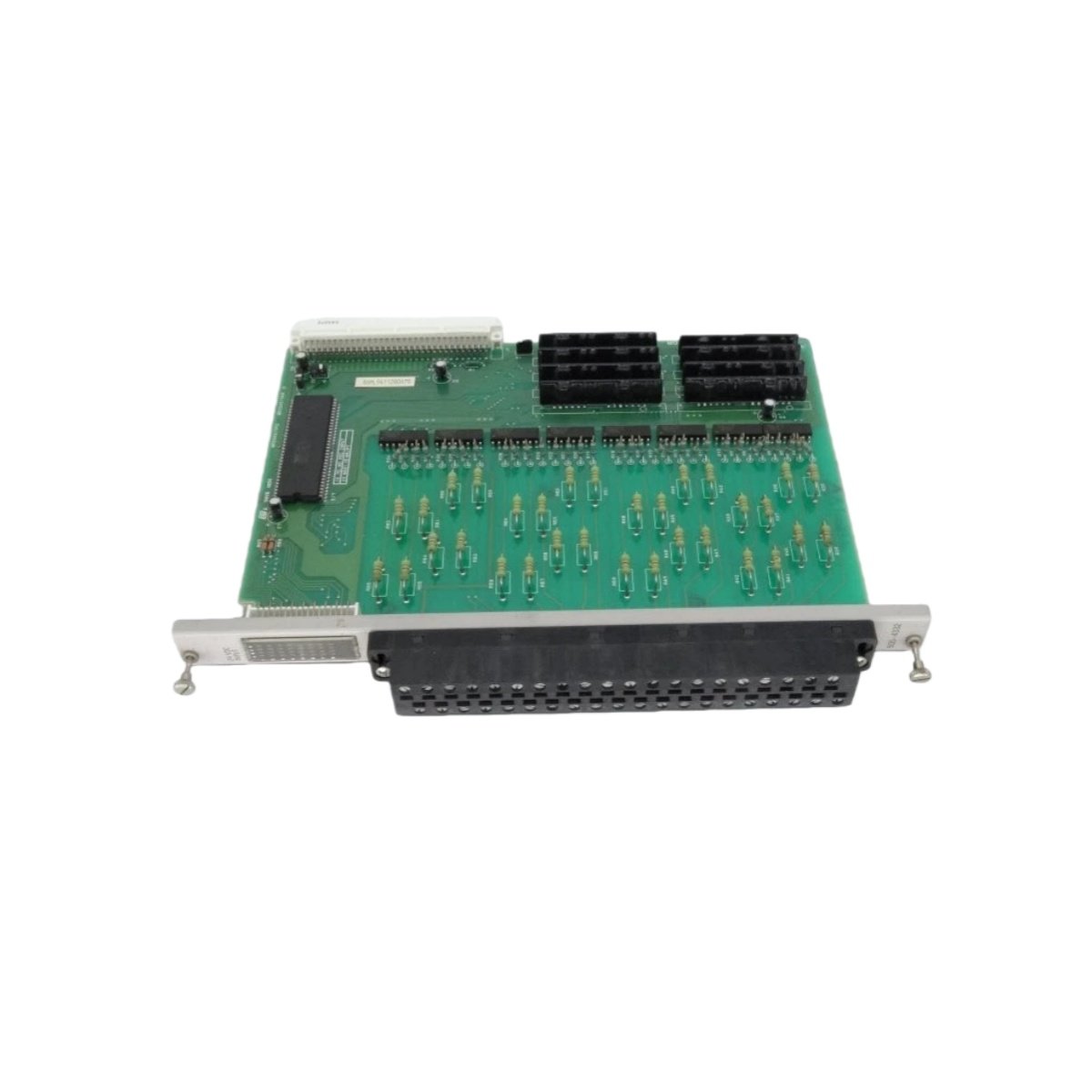

This input module board captures digital signals from field sensors and switches. It translates real-world on/off states into logic levels for the controller. The Siemens 505-4332 provides thirty-two independent input channels for dense I/O applications. This configuration supports large-scale monitoring tasks within Simatic automation systems.

Physical Dimensions and Installation Profile

This input module board measures 260 millimeters in width, 85 millimeters in depth, and 40 millimeters in height. The unit weighs approximately 0.85 kilograms for stable chassis mounting. It installs directly into a Simatic 505 series rack using a backplane connector. The front panel includes a protective cover for terminal access and safety. Additionally, the housing features integrated cooling vents for thermal management.

Input Specifications and Signal Compatibility

The Siemens 505-4332 accepts input voltages from 10 to 30 volts DC for versatile sensor compatibility. Each channel provides a typical input current of 8 milliamperes at 24 volts. The module supports both NPN and PNP sensor connections with appropriate wiring. Input response time reaches 2 milliseconds for reliable high-speed counting applications. All channels include LED indicators for immediate visual status confirmation.

Channel Configuration and Addressing

This input module board provides 32 sinking input channels arranged in four isolated groups. Each group comprises eight channels with a common return terminal. The module uses a 24-pin terminal block for all field wiring connections. Channel addressing follows the Simatic 505 standard for plug-and-play compatibility.

Protection Features and Noise Immunity

The Siemens 505-4332 incorporates optoisolation on every input channel for galvanic separation. This design eliminates ground loops between the field devices and the controller. The module includes built-in surge suppression for transient voltage protection. Input filtering rejects high-frequency noise from industrial equipment. A reverse polarity diode protects the module from incorrect wiring connections.

Component Architecture and Build Quality

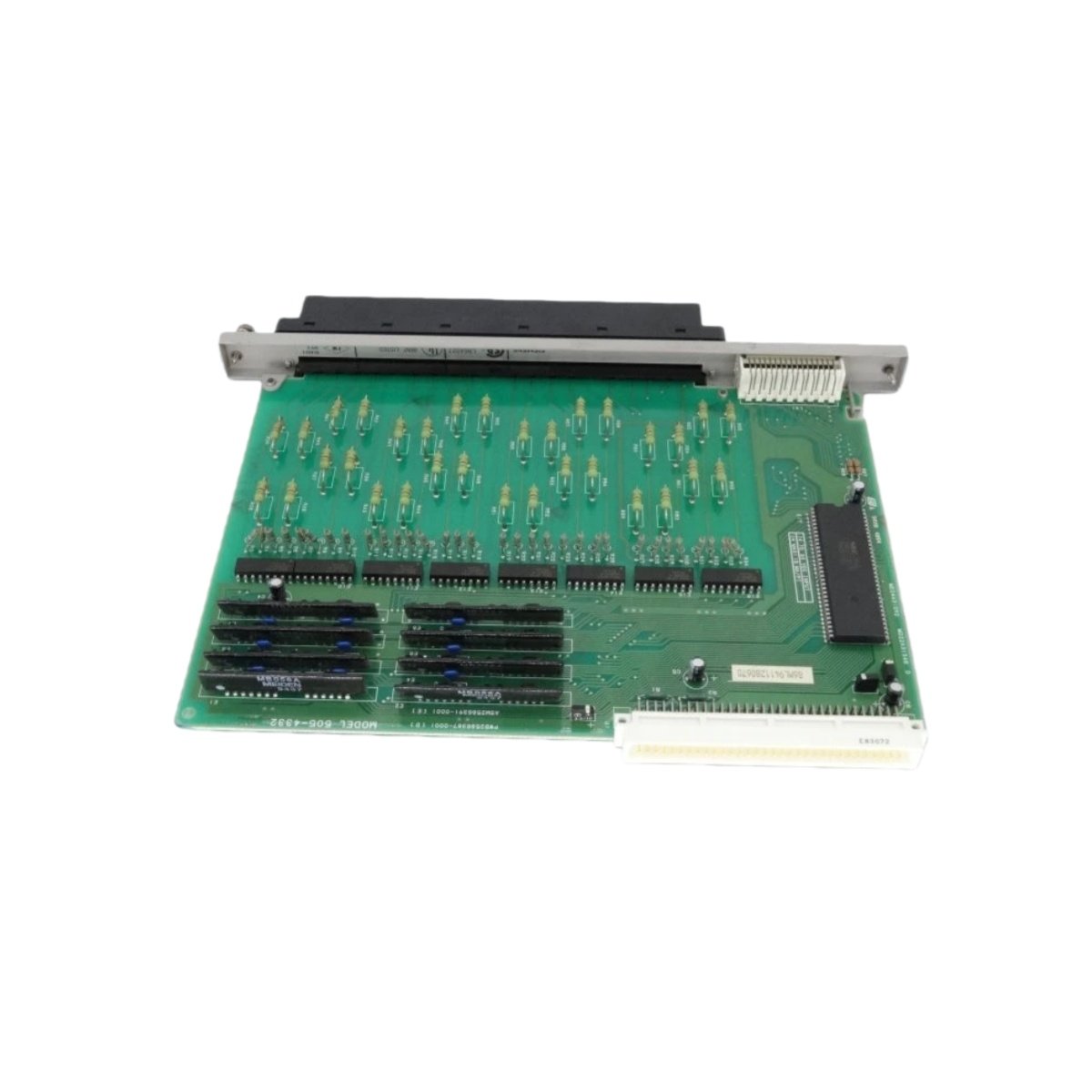

This input module board contains 68 individual components on a four-layer PCB. Key parts include optocouplers, current-limiting resistors, and LED drivers. The board uses thick copper traces for reliable current handling capacity. All solder joints undergo automated inspection for consistent quality assurance.

Energy Storage and Electrical Characteristics

The Siemens 505-4332 includes a 470-microfarad capacitor bank for power supply decoupling. This storage filters noise and maintains stable operation under varying load conditions. The module draws 250 milliamperes from the 5 VDC backplane supply. It also requires an external 24 VDC supply for the field input circuits.

Technical Data Summary

System Integration and Application Scope

This input module board integrates seamlessly with Simatic 505 series programmable controllers. It monitors pushbuttons, limit switches, and proximity sensor signals effectively. Consequently, the Siemens 505-4332 provides a dependable input solution for factory automation systems.
