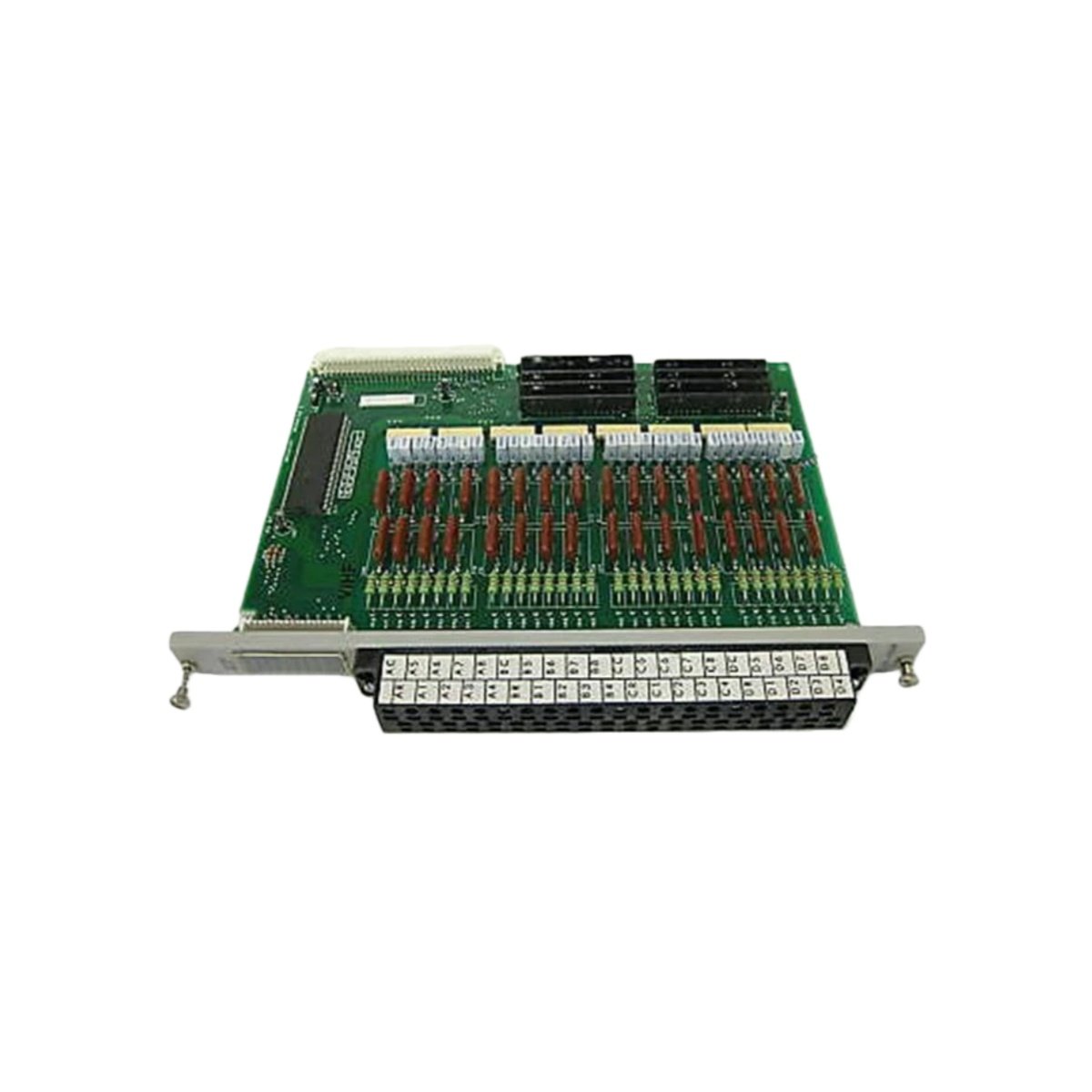

This digital input module captures thirty-two channels of 24V DC field signals. The Siemens 505-4232 and 505-4232A belong to the TI505 product family. You can connect proximity sensors, limit switches, and pushbuttons directly. Its high channel density maximizes I/O count per rack slot.
Physical Dimensions and Hardware Layout
The Siemens 505-4232 measures 28.5 cm in overall width. Its total depth reaches 20.0 cm including the front connector. This digital input module weighs approximately 0.72 kg. A metal housing provides excellent shielding against electrical noise. One green LED indicates backplane power status. Thirty-two red LEDs show each channel’s active input state.
Electrical Input Specifications
Each input channel operates at 24V DC nominal voltage. The Siemens 505-4232A provides a typical input resistance of 4.7 kΩ. Channel turn‑on voltage requires a minimum of 15V DC. Conversely, turn‑off voltage occurs below 5V DC. Built‑in optical isolation protects the backplane from field wiring faults. The module groups inputs into two isolated banks of sixteen channels.
| Parameter | Specification |
|---|---|
| Product Models | 505-4232, 505-4232A (functionally identical) |
| Number of Channels | 32 |
| Product Family | Siemens TI505 |
| Input Type | Sink (NPN) only |
| Nominal Voltage | 24V DC |
| Input Voltage Range | 20.4V to 28.8V DC |
| On‑State Threshold | ≥ 15V DC |
| Off‑State Threshold | ≤ 5V DC |
| Input Resistance | 4.7 kΩ typical |
| Input Delay (On→Off) | 3 ms typical |
| Input Delay (Off→On) | 3 ms typical |
| Dimensions (W x H x D) | 285 mm x 75 mm x 200 mm |
| Weight | 0.72 kg (1.59 lbs) |
| Terminal Type | 40‑pin front connector (sold separately) |
| Wire Size | 0.5 to 2.5 mm² |
| Backplane Current Draw | 250 mA @ 5V DC |
| Power Dissipation | 1.8 W typical |
| Internal Energy Storage | 100 µF capacitor for status retention |
| Isolation Voltage | 1500 Vrms groups‑to‑backplane |
| Number of Components | 1 main board, 2 optocoupler arrays |
| LED Indicators | 1 green (power), 32 red (channels) |
| Operating Temperature | 0°C to +60°C |
Energy Storage and Input Stability
Internal capacitors maintain input status during brief power dips. The Siemens 505-4232A stores channel states for up to 10 ms. This storage prevents false triggering during short interruptions. Consequently, the PLC reads stable input values at all times.
Noise Immunity and Filtering
This module includes hardware filters for electrical noise rejection. The Siemens 505-4232 rejects voltage spikes shorter than 1 ms. The input delay includes the filter time automatically. Therefore, false triggers rarely occur in noisy industrial environments.
Isolation and Channel Grouping
This module groups inputs into two isolated banks of sixteen channels. Each bank shares a common return terminal. The Siemens 505-4232A withstands 1500Vrms between banks and the backplane. This design protects the main controller from field wiring faults. You can connect different commons to each bank independently.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
