Efficient Motor Control for Industrial Applications

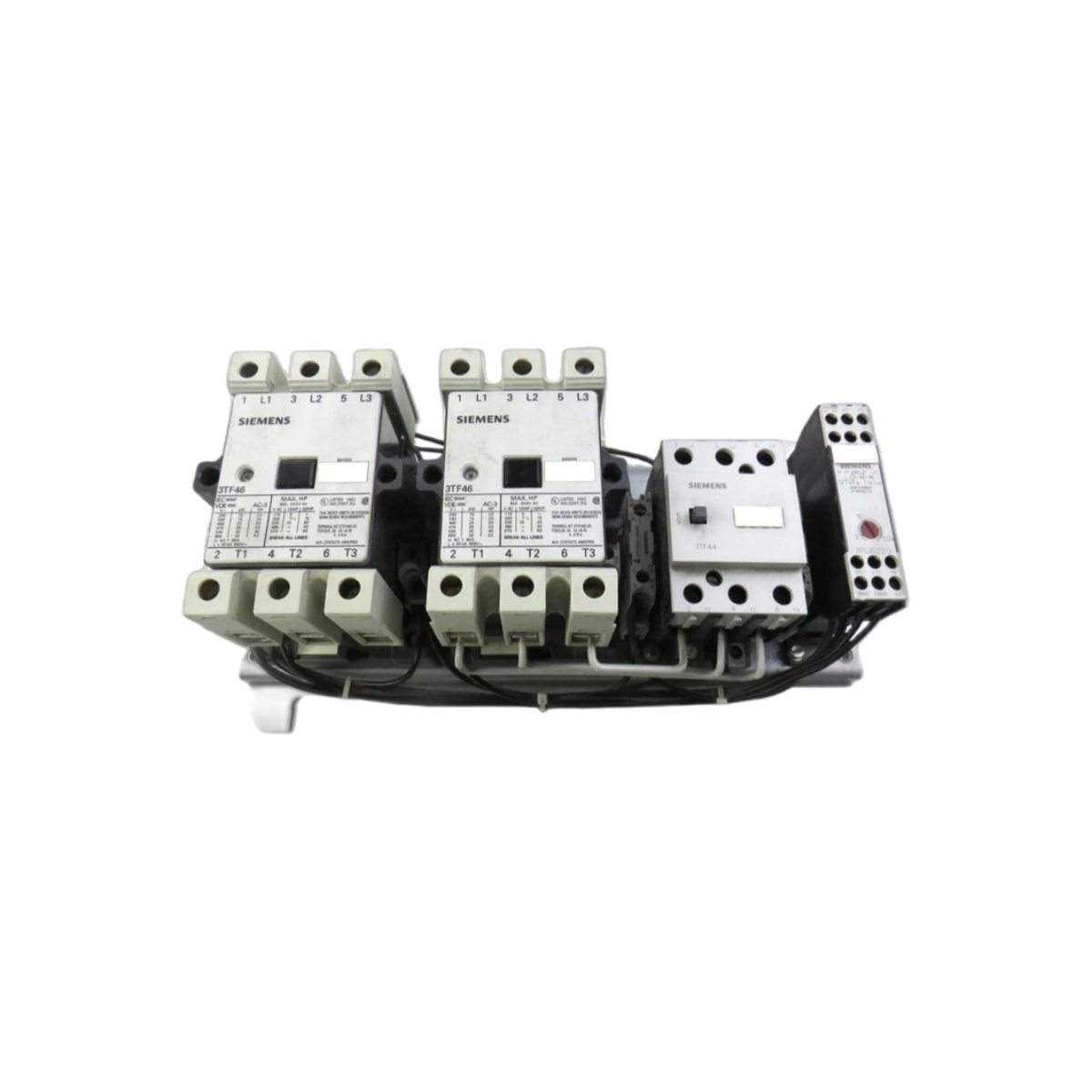

The 3TE4602-5A star-delta starter module provides controlled motor start-up for industrial automation systems. This module minimizes inrush current during motor starting, reducing electrical and mechanical stress . It utilizes the star-delta method to ensure smooth start-up and enhanced motor longevity . This module suits pumps, compressors, conveyors, and various other machinery applications .
Electrical Ratings and Performance
The 3TE4602-5A operates within a voltage range of 380V to 415V. It also supports a current rating of 25A for medium-duty motor control tasks. The module includes five main contactors and an overload relay, ensuring comprehensive protection . Furthermore, this module features a capacitor for short-term energy storage, supporting stable operation .
Physical Dimensions and Environmental Specifications
This module weighs approximately 2.3 kg and measures 215 mm x 160 mm x 120 mm. It features an IP20 enclosure and supports DIN rail or panel mounting options. The module also operates reliably from -20°C to +60°C. It utilizes screw terminal connections for straightforward wiring and installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 3TE4602-5A |
| Product Type | Star-Delta Starter Module |
| Control Method | Star-Delta Starting |
| Voltage Range | 380V to 415V |
| Current Rating | 25A |
| Dimensions (HxWxD) | 215 x 160 x 120 mm |
| Weight | 2.3 kg |
| Enclosure Type | IP20 |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Connection Type | Screw Terminal |
| Component Count | 5 (Contactors + Overload Relay) |
| Energy Storage | Capacitor for short-term storage |
| Country of Origin | Germany |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
