Technical Overview of the Voltage Input Module

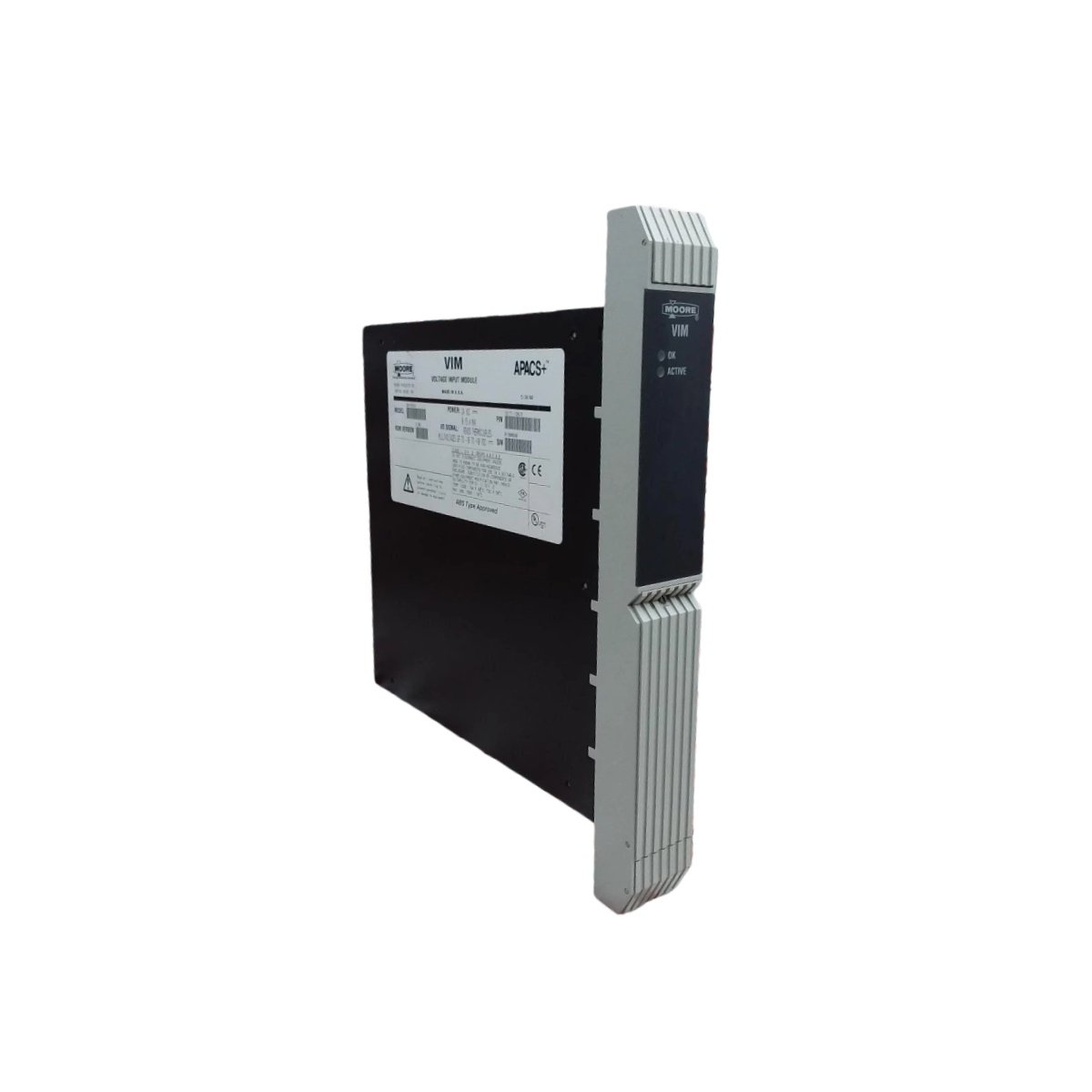

The Siemens 39VIMCCN functions as a Voltage Input Module (VIM) within the APACS+ process control system. This intelligent module interfaces thermocouple and voltage input signals with the control module’s IOBUS . It handles up to 16 software-configurable channels for maximum application flexibility . The design supports both thermocouple and high-level voltage inputs with minimal configuration effort.

Key Technical Specifications

This section details the core parameters for the Siemens 39VIMCCN voltage input module. Use these figures to confirm compatibility with your APACS+ system configuration.

Application and System Integration

This voltage input module mounts directly into the APACS+ system rack. It connects to field sensors and thermocouples for process monitoring. The Siemens 39VIMCCN provides autoranging and self-calibration for consistent accuracy . Its 16 isolated channels protect the control system from field faults . Consequently, engineers can deploy this module in demanding process applications with confidence.

Reliability and Performance Features

The module includes integral burnout detection for thermocouple diagnostics . This feature alerts operators to sensor failures promptly. Users can insert or remove the Siemens 39VIMCCN while powered without disturbing field wiring . The isolated channel design provides superior protection against short circuits . System integrators rely on the Siemens 39VIMCCN for precise and dependable signal acquisition.
