Technical Specifications and Hardware Overview

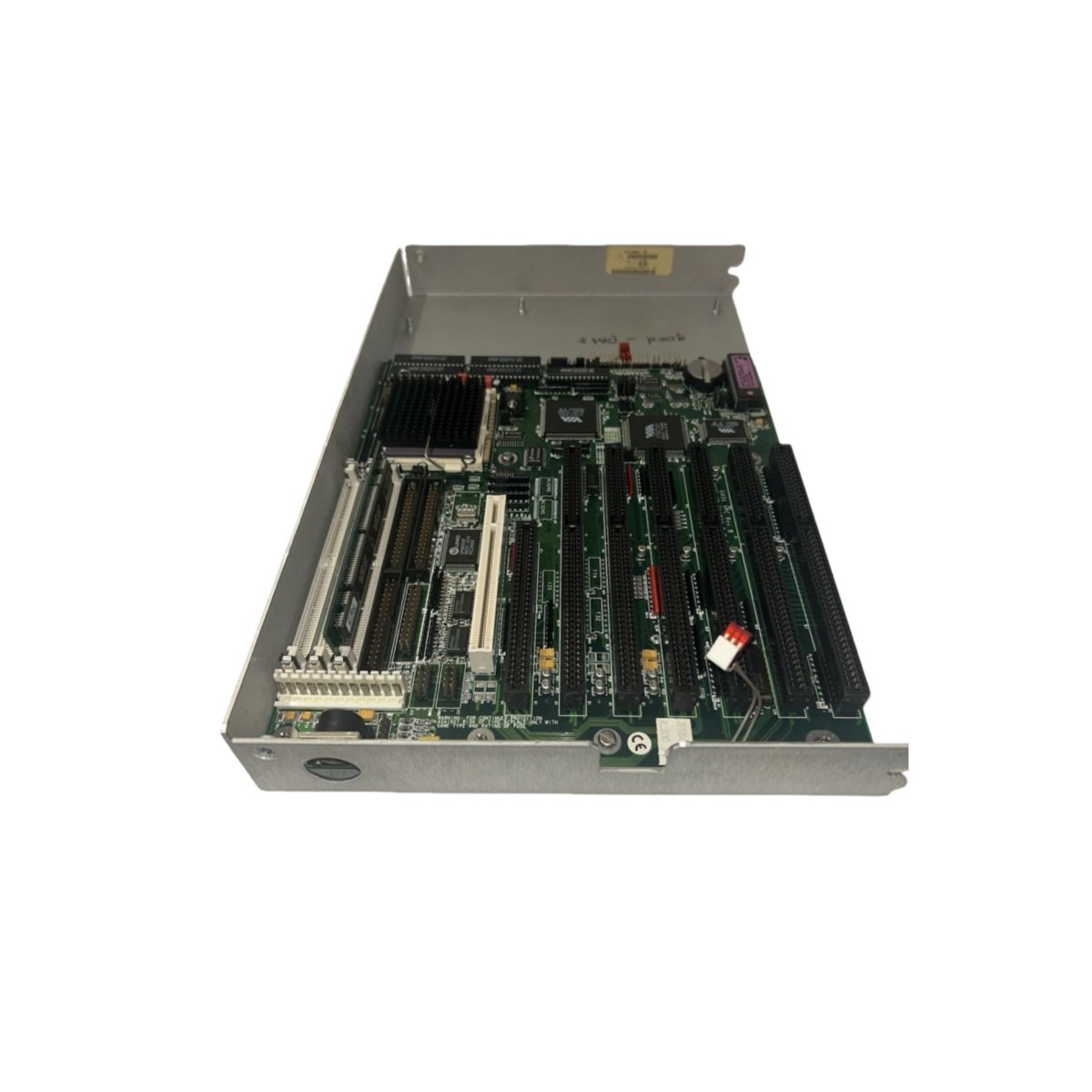

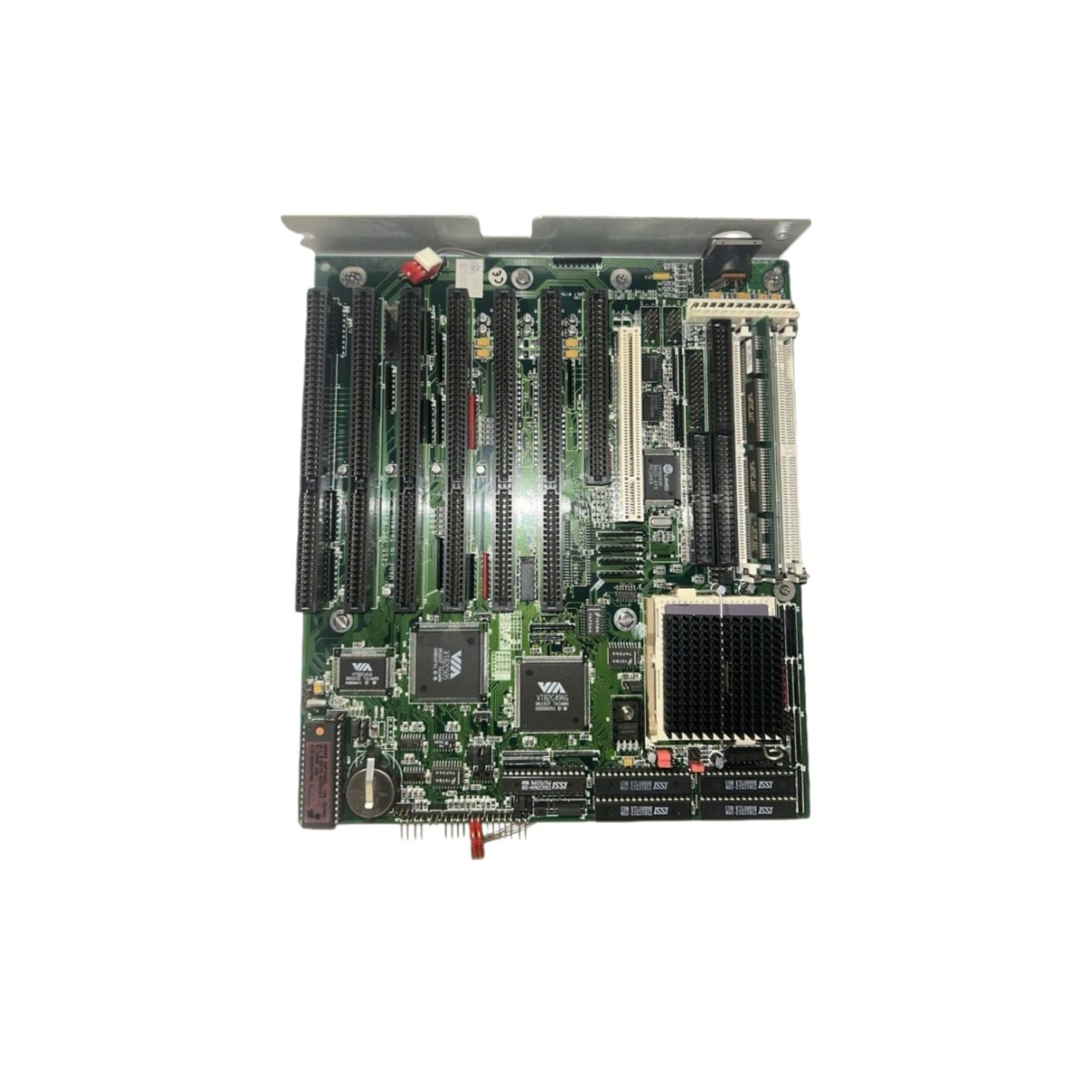

The Siemens 3-424-2283A02 functions as a central processing unit board for industrial automation controllers. This board measures 180 mm in height, 75 mm in width, and 130 mm in depth for standard rack mounting. It weighs approximately 0.9 kilograms, which enables straightforward handling during installation or replacement procedures. The unit draws 1.5 A from a 5 V DC power supply, consuming roughly 7.5 W under normal operational loads. It features one backplane connector with 96 pins for system bus interfacing. The board also includes one 9-pin D-sub connector for RS-232 programming access.

It contains 2 MB of flash memory for firmware and application program storage. The module provides 1 MB of RAM for data processing and temporary variable handling. It also includes 256 KB of non-volatile memory for critical parameter retention. The unit performs 32-bit integer and floating-point arithmetic operations efficiently. It supports a clock speed of 66 MHz for reliable processing throughput. The board includes a real-time clock with battery backup for time-stamping functions. The operating temperature range spans 0°C to 55°C for typical industrial conditions. Storage temperatures extend from -25°C to 70°C without causing component damage. Humidity tolerance covers 5% to 95% non-condensing conditions for consistent performance.

Processing Capabilities and System Integration

This CPU board executes user programs with deterministic scan cycles for precise control. It supports ladder logic, function block, and structured text programming languages. The Siemens 3-424-2283A02 communicates with I/O modules via the system backplane. It provides 512 I/O points for flexible system expansion capabilities. The board implements a priority-based interrupt system for time-critical event handling. It includes hardware watchdogs for automatic fault detection and recovery. The unit uses EEPROM for storing operational parameters without external batteries. It performs self-diagnostics during power-up to verify hardware integrity. The board supports firmware updates through the RS-232 programming interface.

Installation and Reliability Data

The 3-424-2283A02 mounts directly into a standard Siemens 6U rack chassis. It occupies one slot in the backplane for straightforward system integration. The board requires no additional cooling due to its efficient thermal design. It delivers a mean time between failures of 300,000 hours for long-term dependability. The unit carries CE and UL certifications for global deployment scenarios. It passes vibration testing at 10 to 55 Hz with 0.15 mm amplitude. The board withstands shock loads up to 5 g for 30 ms duration without degradation. It contains approximately 200 discrete components on a multilayer PCB assembly.
