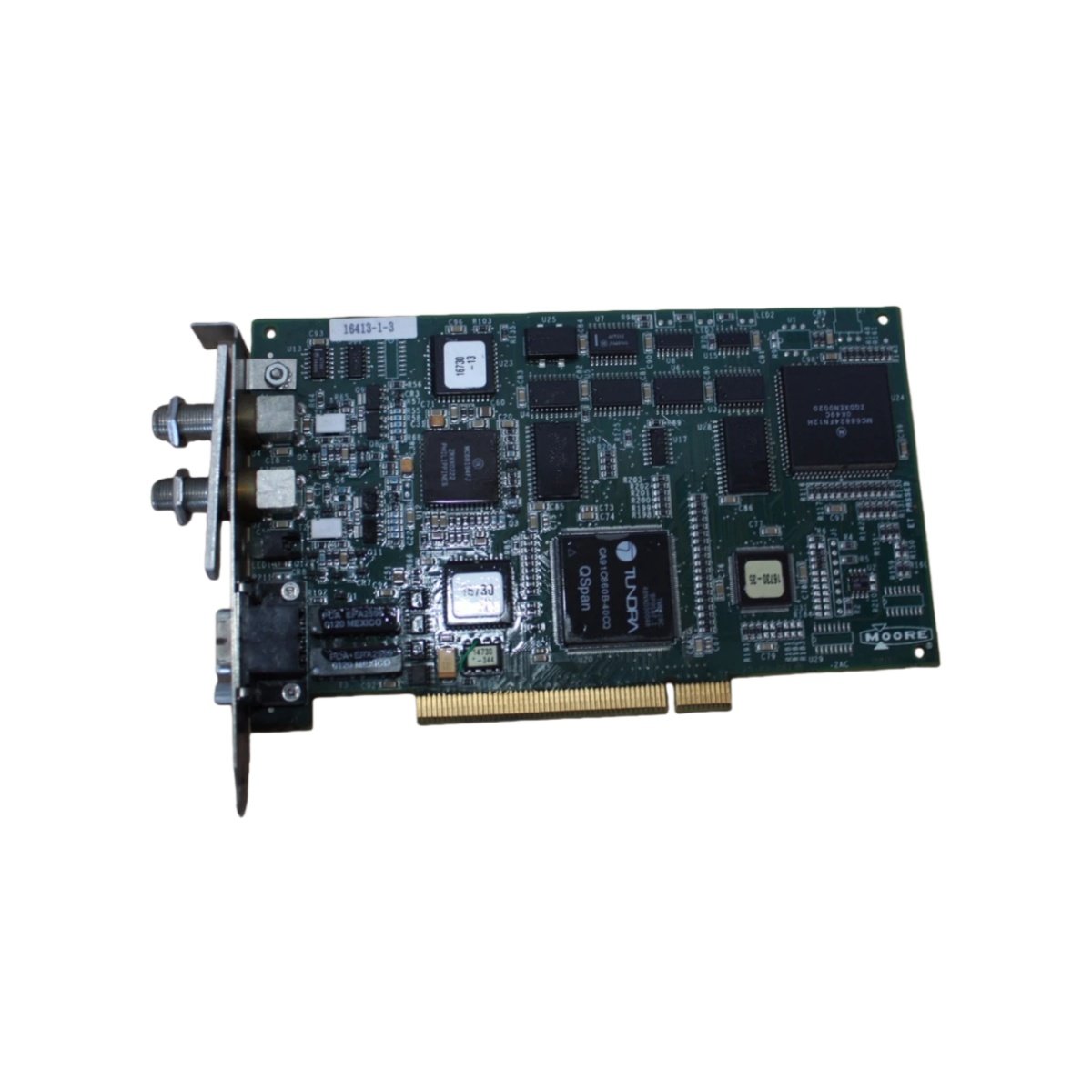

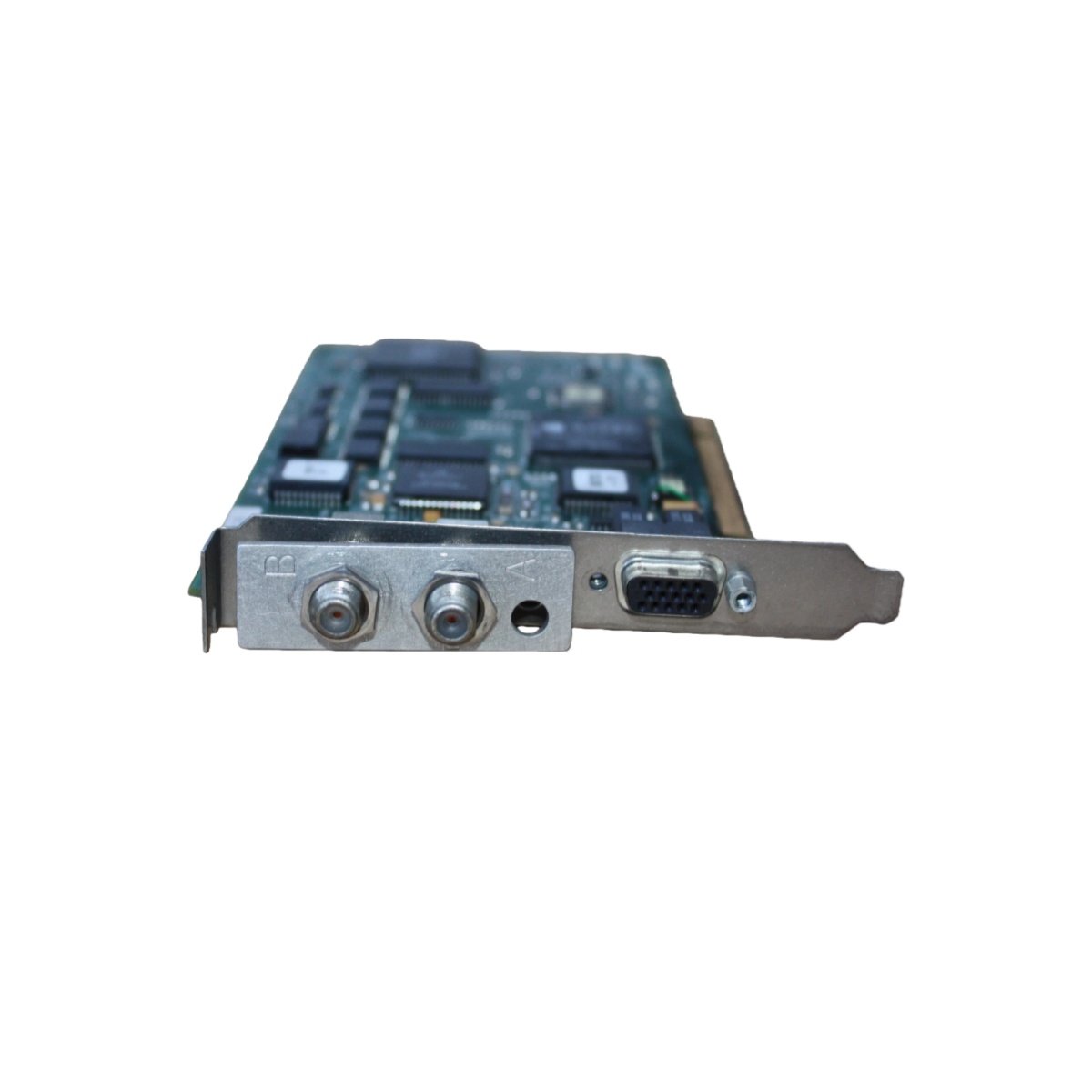

Versatile Communication and Signal Conversion
This interface module provides a reliable connection between the control system and external field devices. It converts digital signals between different voltage levels for seamless system integration. The Siemens 16413-1-3 offers 16 configurable digital I/O channels for flexible application design. It supports 24 V DC input signals and output switching up to 0.5 A per channel. The module maintains optical isolation between the internal logic and field circuits. It performs automatic channel configuration upon system startup.
Physical Dimensions and Mounting Specifications
The unit measures 110 mm in height, 45 mm in width, and 120 mm in depth. It weighs approximately 0.38 kg with all connectors and hardware included. The 16413-1-3 mounts securely onto a standard 35 mm DIN rail. Its compact housing features a snap-on mechanism for quick installation and removal. This space-saving design supports efficient use of cabinet space.
Interface Connectivity and Electrical Requirements
A front-facing screw terminal block provides convenient field wiring connections. The Siemens 16413-1-3 draws its operating power from the 5 V DC backplane supply. It communicates with the host controller through a serial interface bus. LED indicators display channel activity and fault conditions clearly. These indicators simplify diagnostics and reduce troubleshooting time significantly.
Internal Architecture and Energy Storage Elements
The PCB contains optocouplers, buffer ICs, and protection circuits for each channel. A 100 µF capacitor provides local energy storage for stable logic operation. The 16413-1-3 stores configuration data in onboard EEPROM memory. The module includes transient suppression diodes on every I/O point. This protection guards against electrostatic discharge and inductive load switching.
| Parameter | Specification |
|---|---|
| Model | 16413-1-3 |
| Type | Interface Module |
| I/O Channels | 16 configurable digital |
| Input Voltage | 24 V DC (10–30 V) |
| Output Current | 0.5 A per channel (max.) |
| Isolation | 1500 V AC (field to logic) |
| Supply Voltage | 5 V DC (backplane) |
| Dimensions (H×W×D) | 110 × 45 × 120 mm |
| Weight | 0.38 kg |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | –20 to +70 °C |
| Field Connector | Screw terminal block |
| Host Interface | Serial backplane bus |
| Energy Storage | 100 µF capacitor |
| Protection | Transient suppression diodes |
Recommended Installation Practices
Mount the Siemens 16413-1-3 on a clean and dry DIN rail in the control cabinet. Use appropriate gauge wiring for all field connections to handle the current. Configure the module’s channel direction using the system configuration software. Test each input and output channel individually after wiring completion. Verify correct signal levels with a multimeter before system startup. Conduct periodic inspections of terminal tightness and LED indicators.
Details
| Weight | 0.38 kg |
|---|---|
| Dimensions | 110 × 45 × 120 mm |
