Core Signal Acquisition for Siemens Systems

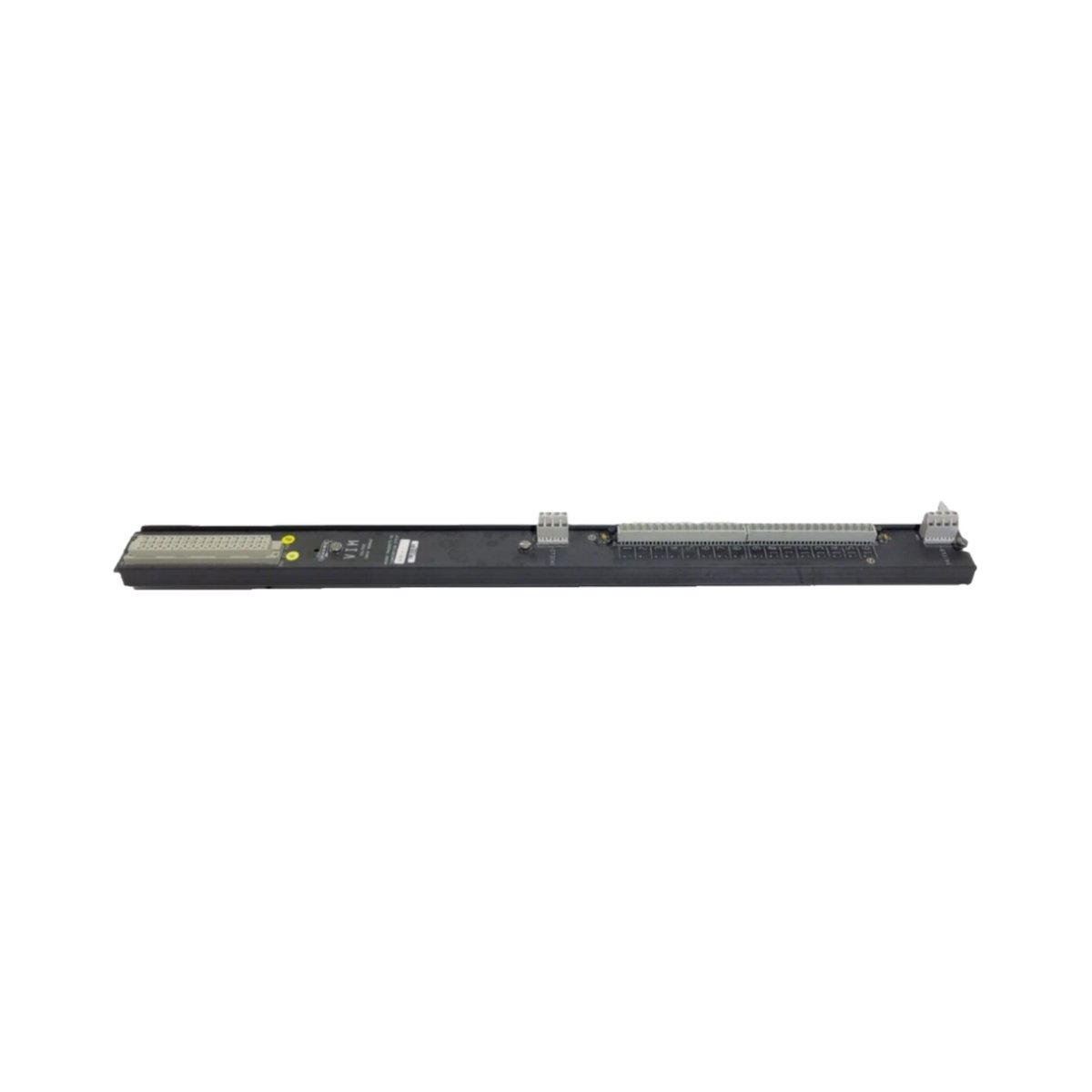

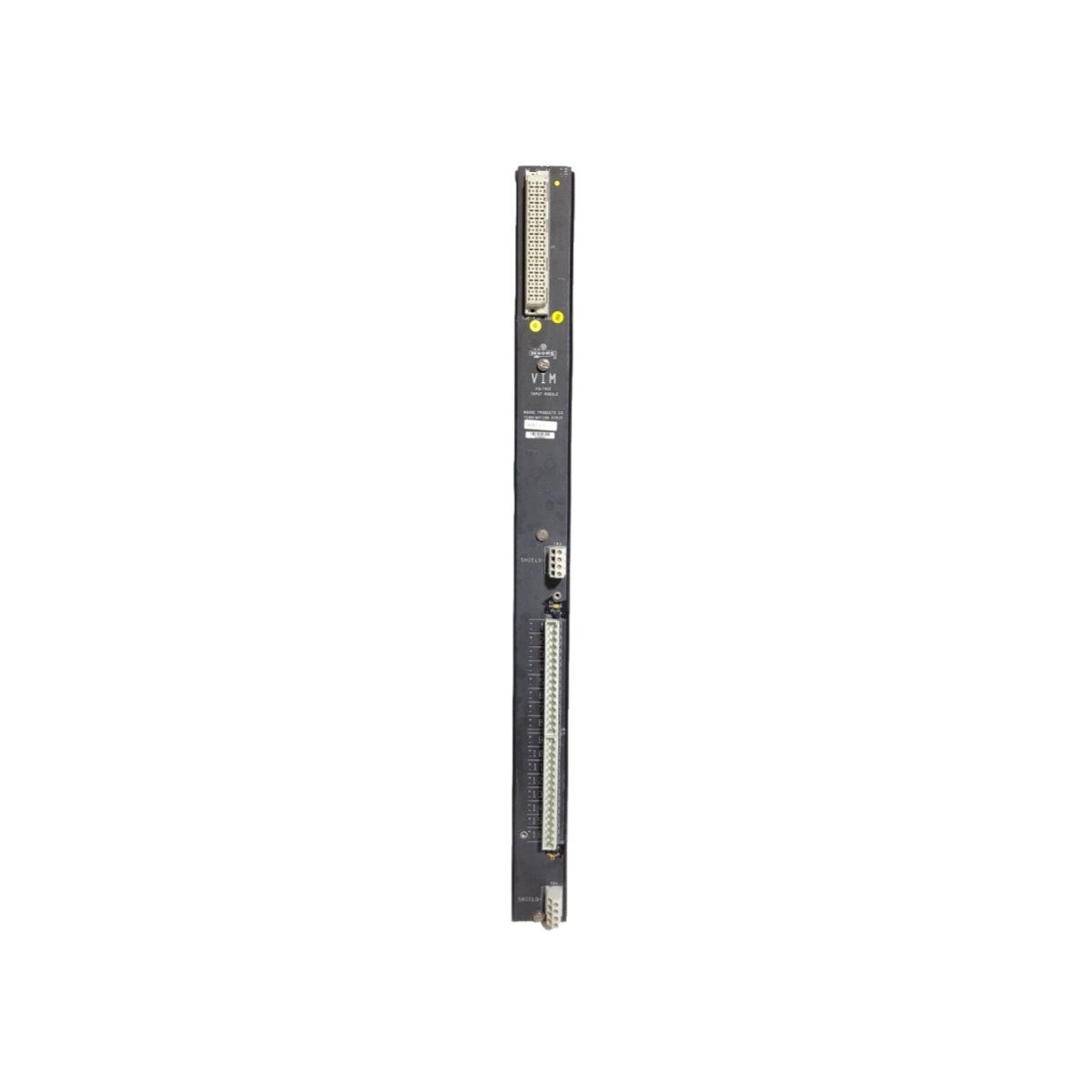

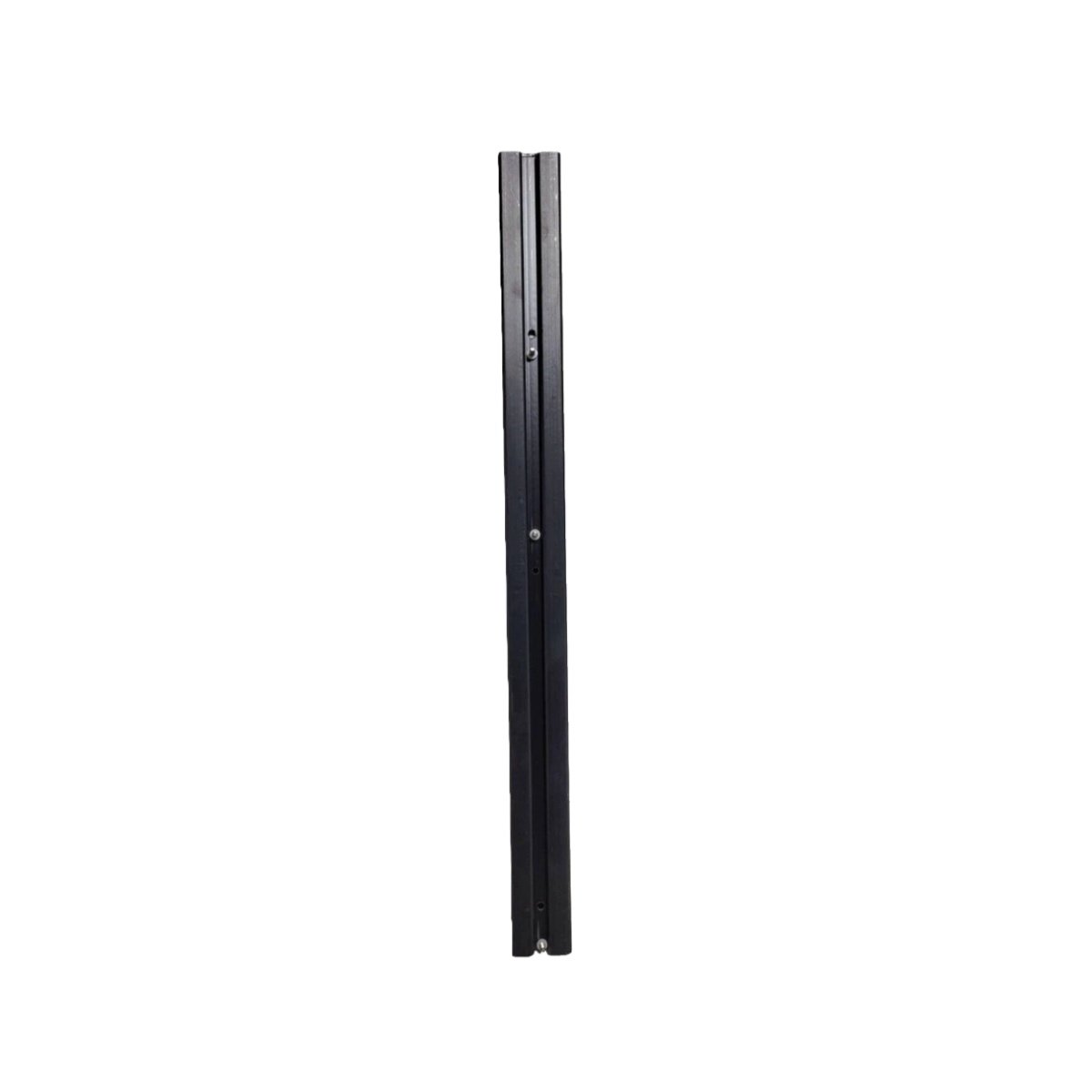

The Siemens 16187-1-1 is a Voltage Input Module (VIM) for industrial automation systems. This module interfaces thermocouple and voltage input signals to the control module’s I/O bus . It provides a reliable interface for acquiring precise analog signals from various field devices. Consequently, it is a key component for data acquisition in legacy Siemens automation platforms.

Channel Configuration and Signal Types

This module features 16 configurable channels, each capable of handling either thermocouple or voltage inputs . This flexibility allows it to accommodate many input types with minimal configuration and high accuracy . Each input is electrically isolated from the module’s CPU, I/O bus, and ground, preventing field faults from affecting the system . Furthermore, each channel is isolated from other channels, ensuring signal integrity and preventing cross-interference .

Technical Specifications and Hardware Details

Engineers designed this module for straightforward installation into compatible Siemens racks. Its design supports high-precision measurements for industrial automation. The following table details its key functional and physical parameters:

Application in Legacy System Support

Plant engineers use this module to acquire voltage and temperature signals in existing Siemens-based automation systems. It is especially valuable in industries where legacy hardware remains in daily use. The Siemens 16187-1-1 enables continued reliable data acquisition. Therefore, sourcing tested units is essential for lifecycle management of classic Siemens automation platforms.
