Core Technical Specifications

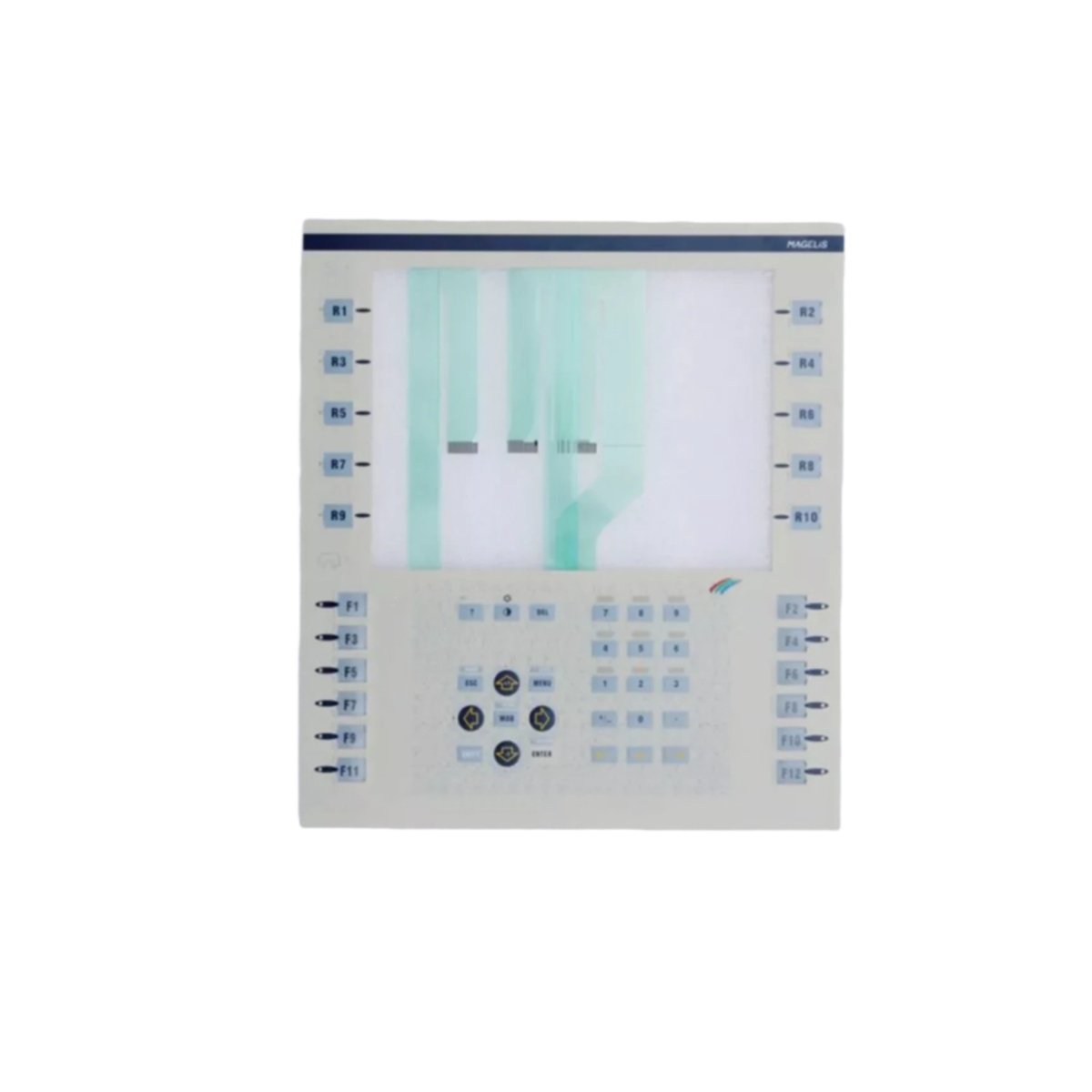

The XBTF024610 belongs to the Schneider HMI accessory range and functions as a membrane keypad switch. It provides tactile operator input for industrial terminals and control panels. Therefore, machine operators rely on this keypad for fast, reliable command entry on the factory floor.
Full Parameter Table
| Parameter | Specification |
|---|---|
| Model | XBTF024610 |
| Function | Membrane Keypad Switch |
| Number of Keys | 24 keys |
| Key Type | Flat membrane with tactile feedback |
| Actuation Force | 2.5 N typical |
| Contact Resistance | 100 mΩ maximum |
| Insulation Resistance | 100 MΩ minimum |
| Dielectric Strength | 250 VAC for 1 minute |
| Service Life | 1,000,000 operations minimum |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Protection Rating | IP65 front panel |
| Weight | Approximately 0.15 kg |
| Dimensions | 180 mm × 120 mm × 12 mm |
Physical Design and Interface Features
The XBTF024610 uses a sealed membrane overlay that resists dust, oil, and moisture. Its flat surface wipes clean easily, which suits food and beverage plants. Furthermore, the keypad delivers tactile feedback, so operators confirm each press without looking. Meanwhile, the ribbon cable connector plugs directly into compatible Schneider terminals.
System Integration Notes
This keypad works together with Schneider HMI terminals and panel PCs. Consequently, it fits into existing operator station layouts without major modification. Engineers replace the overlay when legends wear out, which extends total panel life. However, users should confirm terminal compatibility before ordering spare units.
