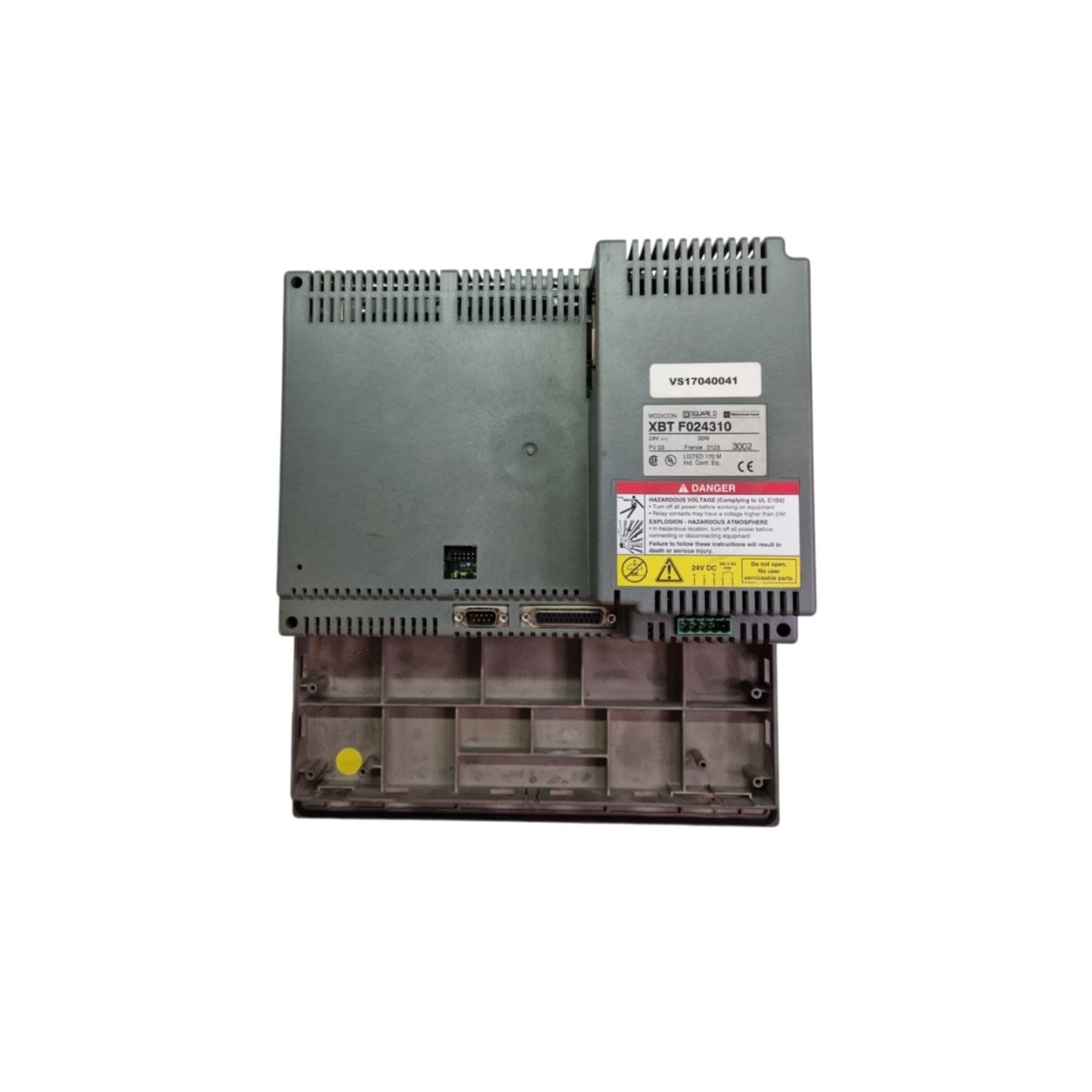

The XBTF024310 provides operator interface functions within Schneider’s Magelis HMI family as a panel-mountable terminal. This unit measures roughly 7.5 inches wide, 5.9 inches tall, and 2.0 inches deep. Moreover, it weighs about 2.2 pounds, which suits compact panel-door mounting. Operators rely on the XBTF024310 for clear status display and responsive function-key input.
Technical Specifications and Interface Details

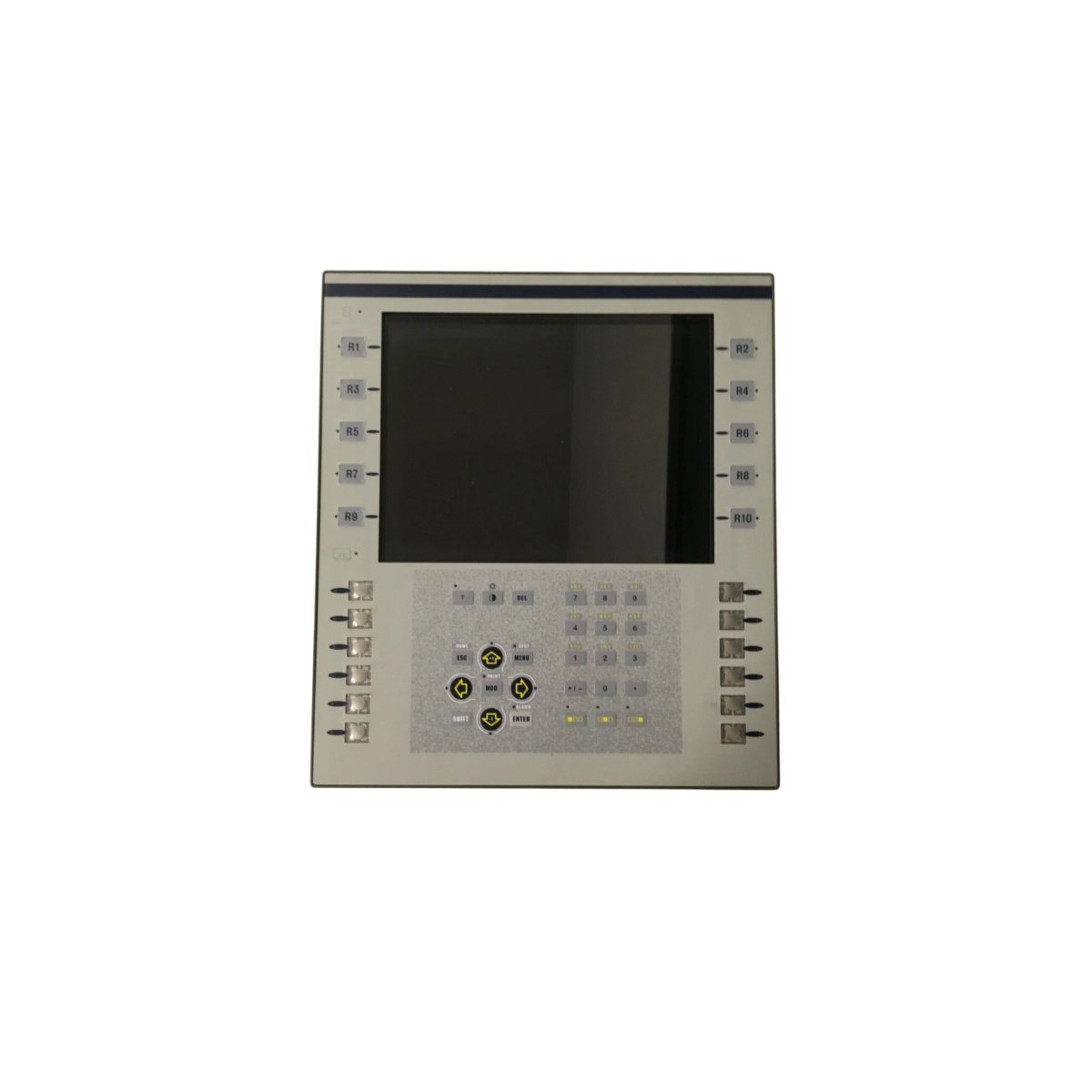

The terminal combines a monochrome LCD screen with configurable function keys for durable input. Specifically, it offers a 5.7-inch display with 320 x 240 pixel resolution. Additionally, the front panel meets IP65 ratings for washdown protection. Rear connectors provide serial links to PLC hardware.
| Parameter | Specification |
|---|---|
| Module Type | Panel-Mountable Operator Terminal |
| Display | 5.7 in monochrome LCD |
| Resolution | 320 x 240 pixels |
| Input | Configurable function keys |
| Dimensions | 7.5 x 5.9 x 2.0 in |
| Weight | ~2.2 lbs |
| Protection | IP65 front panel |
| Interfaces | Serial communication ports |
| Power | 24 VDC nominal |
Energy Storage and Display Stability
Internal capacitors on the XBTF024310 provide local energy storage for stable backlight drive. Consequently, the display resists flicker during supply fluctuations on the plant floor. This buffering also protects configuration memory during brief outages. The design therefore supports consistent screen performance across long shifts.
Installation and Compatibility Notes
Because the XBTF024310 mounts through a standard panel cutout, technicians finish installation quickly. They should confirm gasket seating before they tighten the mounting clips. Furthermore, the terminal communicates with many PLC families through configurable drivers. Always store spare units in anti-static packaging to protect sensitive electronics.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
