Core Technical Specifications
This operator interface provides a clear visual window into your automation processes. We engineered the XBT HM007010 to deliver reliable human-machine interaction in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Product Type | Operator Interface Terminal |
| Dimensions | 210 mm x 150 mm x 55 mm (W x H x D) |
| Weight | 1.10 kg |
| Display Type | STN monochrome LCD |
| Display Size | 5.7 inches (diagonal) |
| Resolution | 320 x 240 pixels (QVGA) |
| Backlight | CCFL (replaceable) with 50,000-hour typical life |
| Touchscreen | Analog resistive touch panel |
| User Memory | 256 KB SRAM (battery-backed) |
| Application Storage | 1 MB Flash EPROM |
| Communication Ports | 1 x RS-232, 1 x RS-422/485 (software-selectable) |
| Data Transfer Rate | Up to 115.2 kbps |
| Alarm Capacity | 500 user-programmable alarms |
| Recipe Management | 100 recipes with 100 registers each |
| Backup Battery | Lithium battery retains data for 1 year |
| Operating Temp. | 0 °C to 50 °C |
| Front Panel Sealing | IP65 (dust-tight and water-jet resistant) |
| Certifications | CE, UL, CSA, and Class I Div 2 (hazardous locations) |

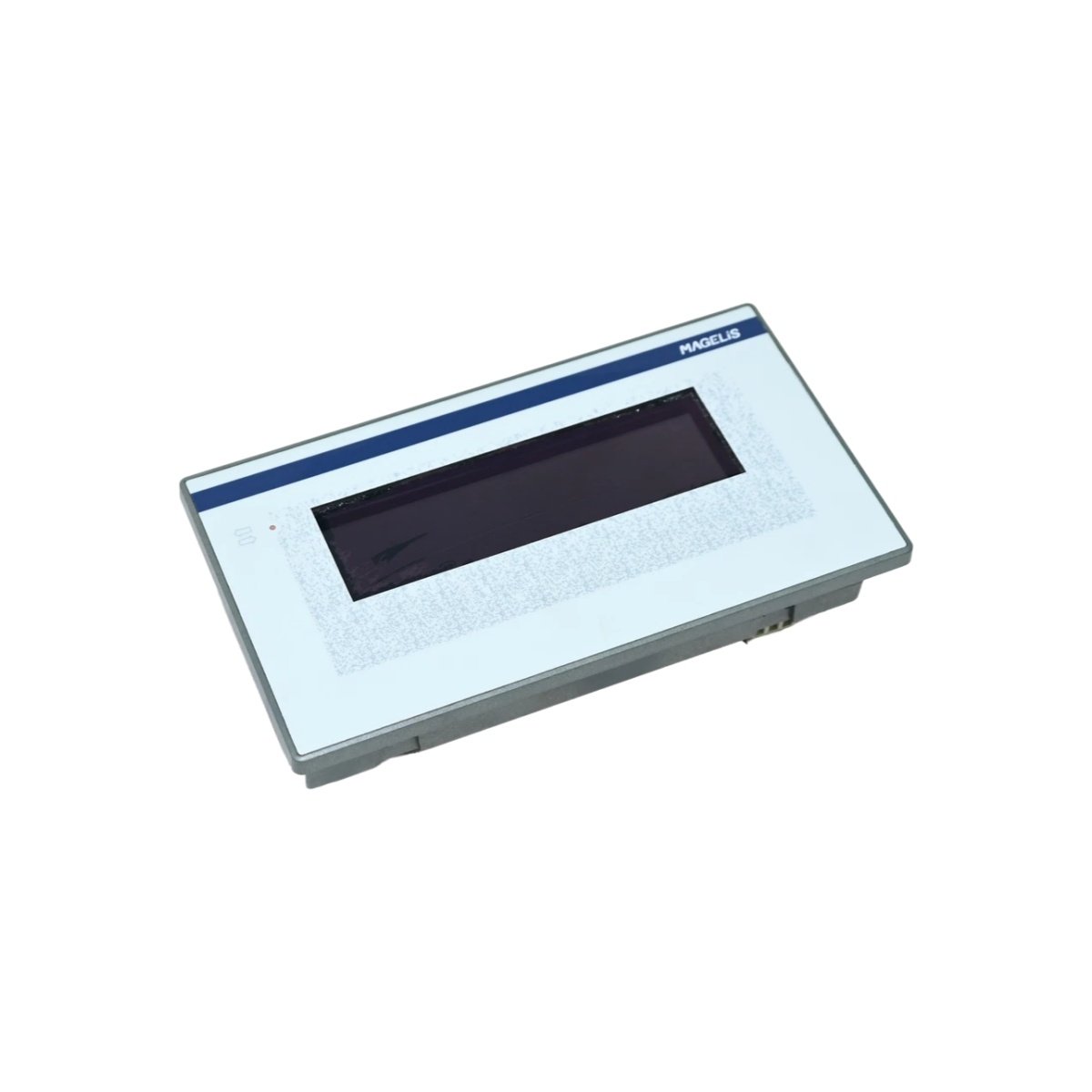

Clear Visual Interface
The XBT HM007010 features a 5.7-inch monochrome LCD with 320 x 240 pixel resolution. This display presents process data, alarm messages, and system status with excellent readability. The CCFL backlight ensures clear visibility even in dimly lit control rooms. You can replace the backlight easily when it reaches the end of its 50,000-hour service life.
Responsive Touch Operation
This operator interface incorporates an analog resistive touchscreen for intuitive user input. The touch panel registers presses accurately and responds immediately to operator commands. You can design custom screens with pushbuttons, numeric entry fields, and graphical indicators. Consequently, this interface eliminates the need for physical control panels, reducing cabinet space and wiring complexity.
Ample Memory for Complex Applications
The XBT HM007010 provides 256 KB of battery-backed SRAM for runtime data and user settings. An additional 1 MB of Flash EPROM stores your application screens and configuration permanently. The lithium battery retains all RAM contents for up to one year during power loss. Furthermore, the terminal supports 500 user-programmable alarms and 100 recipes with 100 registers each.
Versatile Communication Capabilities

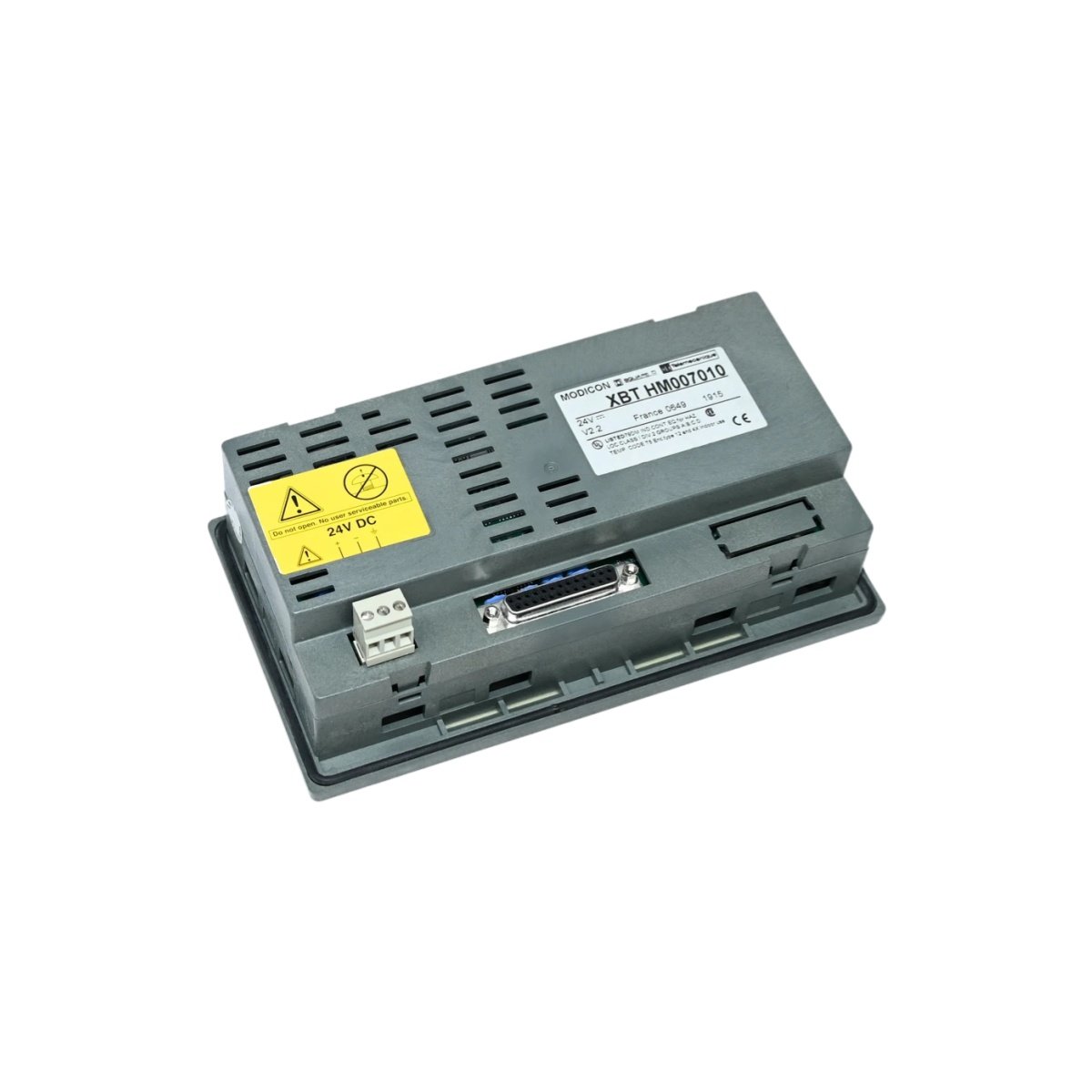

This operator interface offers dual communication ports for flexible system integration. The RS-232 port connects directly to PLC programming terminals or printer devices. The RS-422/485 port enables multi-drop networking with up to 31 devices on a single bus. You can select the port protocol through software configuration. Therefore, the XBT HM007010 communicates seamlessly with Schneider and third-party controllers.
Rugged Construction for Factory Environments
The XBT HM007010 carries an IP65 front panel rating against water jets and dust ingress. This sealing protects the internal electronics from moisture, dirt, and cleaning chemicals. The terminal also holds Class I Division 2 certification for hazardous locations. This robust construction ensures dependable operation in petrochemical plants and other challenging settings.
Details
| Weight | 1.10 kg |
|---|---|
| Dimensions | 210 × 150 × 55 mm |
