Functional Overview and Human-Machine Interface

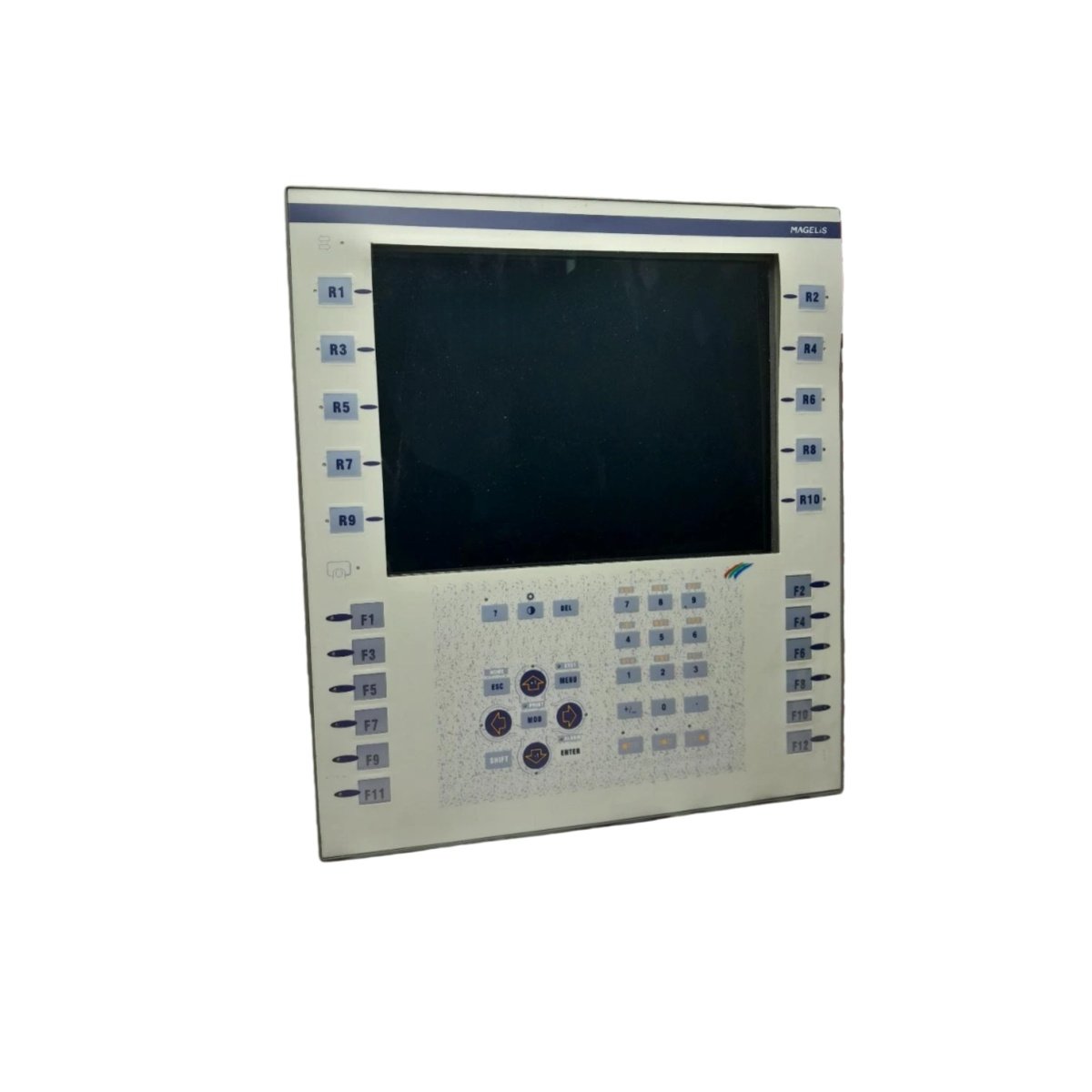

This operator interface terminal provides a compact HMI solution for industrial control systems. It displays machine status, alarms, and production data for operator awareness. The XBT F024110 offers intuitive control through 10 programmable function keys. Moreover, the terminal communicates directly with Modicon PLCs using standard protocols. Its monochrome LCD screen delivers clear visibility for all operating conditions. The LED backlight ensures readability in both bright and dim environments. Consequently, this interface suits packaging, material handling, and machine tool applications.

Display Characteristics and Visual Feedback

The Schneider XBT F024110 features a 4.5-inch LCD screen with 240 x 64 pixel resolution. This resolution provides 4 lines of text plus a status bar for clear messaging. The LED backlight offers green or amber illumination for visibility in any lighting. The backlight life exceeds 50,000 hours for years of reliable service. The screen displays both text and simple graphics for operator guidance. Users can create alarm lists, data displays, and parameter entry screens. The terminal also supports multi-language text for global deployment.

Keypad Functionality and Operator Interaction

Ten programmable function keys provide flexible operator input for various applications. Each key offers tactile feedback for confident operation. Users can assign navigation, data entry, and shortcut functions to individual keys. The keys also support both short-press and long-press actions. The terminal includes a numeric keypad for direct data entry. Additionally, dedicated navigation keys simplify menu browsing. The keypad layout suits operation with gloves for industrial environments.

Communication Architecture and Protocol Support

The module provides three communication ports for versatile connectivity. The RS-232 port supports direct connection to programming software and printers. The RS-485 port enables multi-drop networking with remote devices. The USB service port offers high-speed connection for configuration and firmware updates. The XBT F024110 supports Modbus RTU for universal device compatibility. It also supports Schneider UNI-TE protocol for native system integration. The terminal communicates simultaneously with multiple PLCs using these protocols.

Physical Architecture and Panel Mounting

The module measures 130 mm x 90 mm x 45 mm (5.1″ x 3.5″ x 1.8″) and weighs approximately 0.35 kg. Its shallow depth suits installations in standard control panels. The panel cutout requires 118 mm width and 76 mm height. The IP65 front panel rating protects against dust and water jets. The polycarbonate housing provides impact resistance for industrial durability. The terminal mounts flush to the panel using included mounting clips. The rear housing provides connectors for power and communication cables.

Memory Architecture and Application Storage

The terminal provides 256 KB of flash memory for application storage. This memory holds screens, messages, and configuration data. Users can store multiple applications and switch between them. The battery-backed real-time clock maintains time and date for event logging. The CR2032 battery provides 3 years of typical service life. The memory retains all data during power loss. Users can expand the memory through the USB service port.

Power Supply and Energy Storage Features

The terminal requires a 24 VDC power supply with ±20% tolerance. It draws 150 mA under normal operating conditions. The internal 100 µF capacitor provides ride-through during brief interruptions. This capacitance ensures continuous operation during momentary voltage dips. The power supply includes reverse polarity and overvoltage protection. These features protect the terminal from common wiring errors.

Programming Environment and Software Support

Schneider Vijeo Designer software provides comprehensive programming for this terminal. Users can create screens, define communication settings, and set up alarms. The software includes pre-defined objects for quick application development. It supports online simulation for testing without hardware. Users can download applications via RS-232 or USB ports. The software also supports remote firmware updates for feature enhancements. Vijeo Designer works with all Modicon PLC families.

Environmental Conditions and Certifications

The terminal operates reliably from 0°C to +55°C ambient temperature. Storage temperatures range from -20°C to +70°C. The unit carries CE, UL, and CSA certifications for global deployment. Install the terminal on a panel with an IP65 seal. The terminal also complies with IEC 61131-2 for industrial control equipment.
