Product Specifications
| Parameter | Details |
|---|---|
| Product Type | Handheld Programming Terminal |
| Compatibility | Modicon TSX Premium / Micro PLCs |
| Display Type | LCD, 4 lines x 20 characters |
| Display Backlight | LED (adjustable contrast) |
| Keypad | 52 tactile keys, membrane-sealed |
| Communication Port | RS-232 serial (male DB9 connector) |
| Communication Speed | 9600 bps to 115.2 kbps |
| Cable Length | 3.0 meters (integrated coiled cable) |
| Dimensions (H x W x D) | 220 mm x 110 mm x 45 mm |
| Weight | 0.75 kg (including cable) |
| Power Source | 5 VDC from connected PLC |
| Current Draw | 80 mA typical |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Relative Humidity | 5 % to 80 % (non-condensing) |
| Protection Class | IP40 (front panel) |
| Battery | CR2032 (3.0 V) for memory backup |
Functional Overview

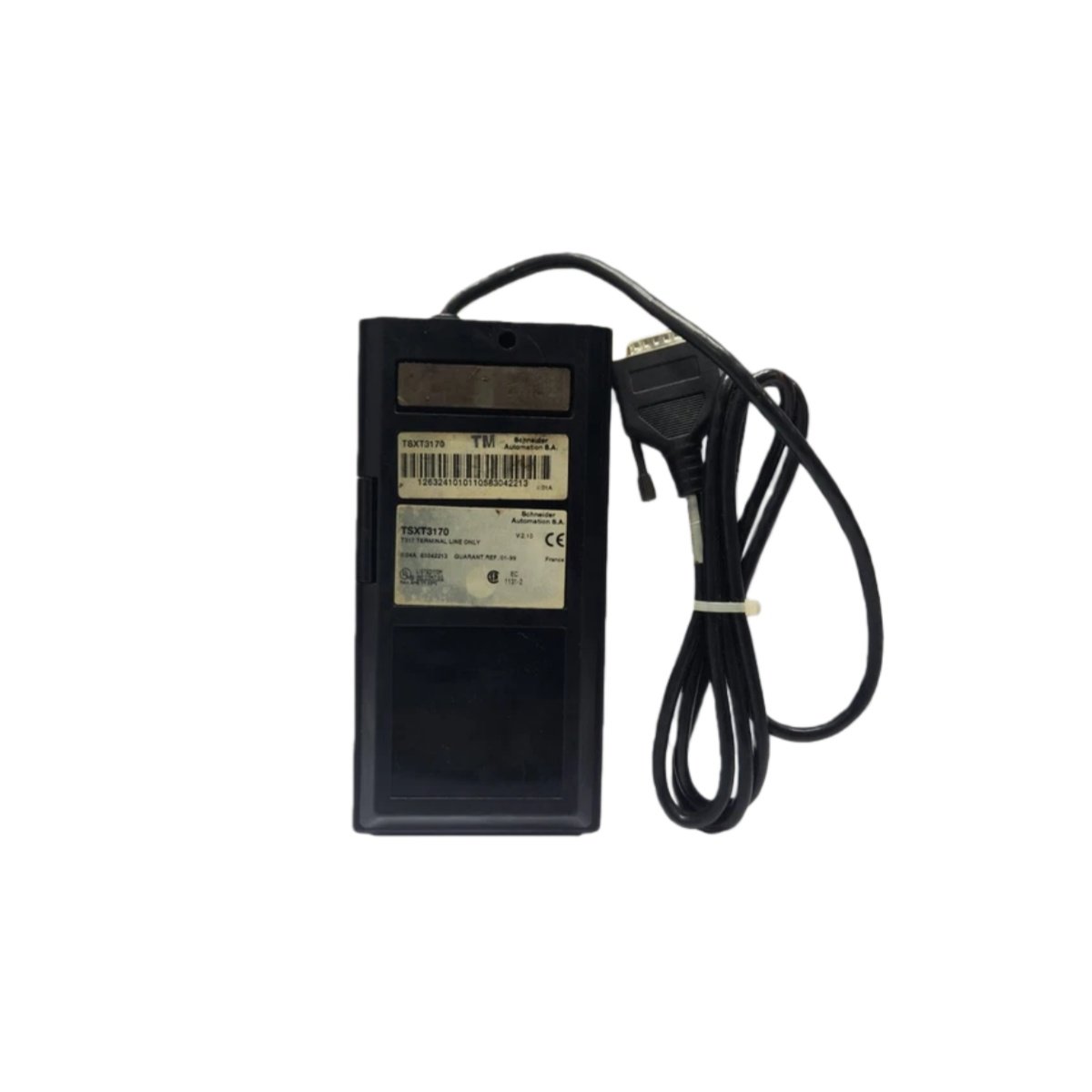

The TSXT3170 handheld controller provides a portable programming and diagnostic interface for Modicon TSX Premium and Micro PLC systems. This device connects directly to the PLC’s programming port through its integrated 3.0-meter coiled cable, eliminating the need for additional adapters. Operators can monitor real-time data, modify application parameters, and force I/O points without requiring a PC-based workstation. Furthermore, the unit supports online program editing, which allows users to make critical changes while the PLC continues running production processes.
Interface and Usability

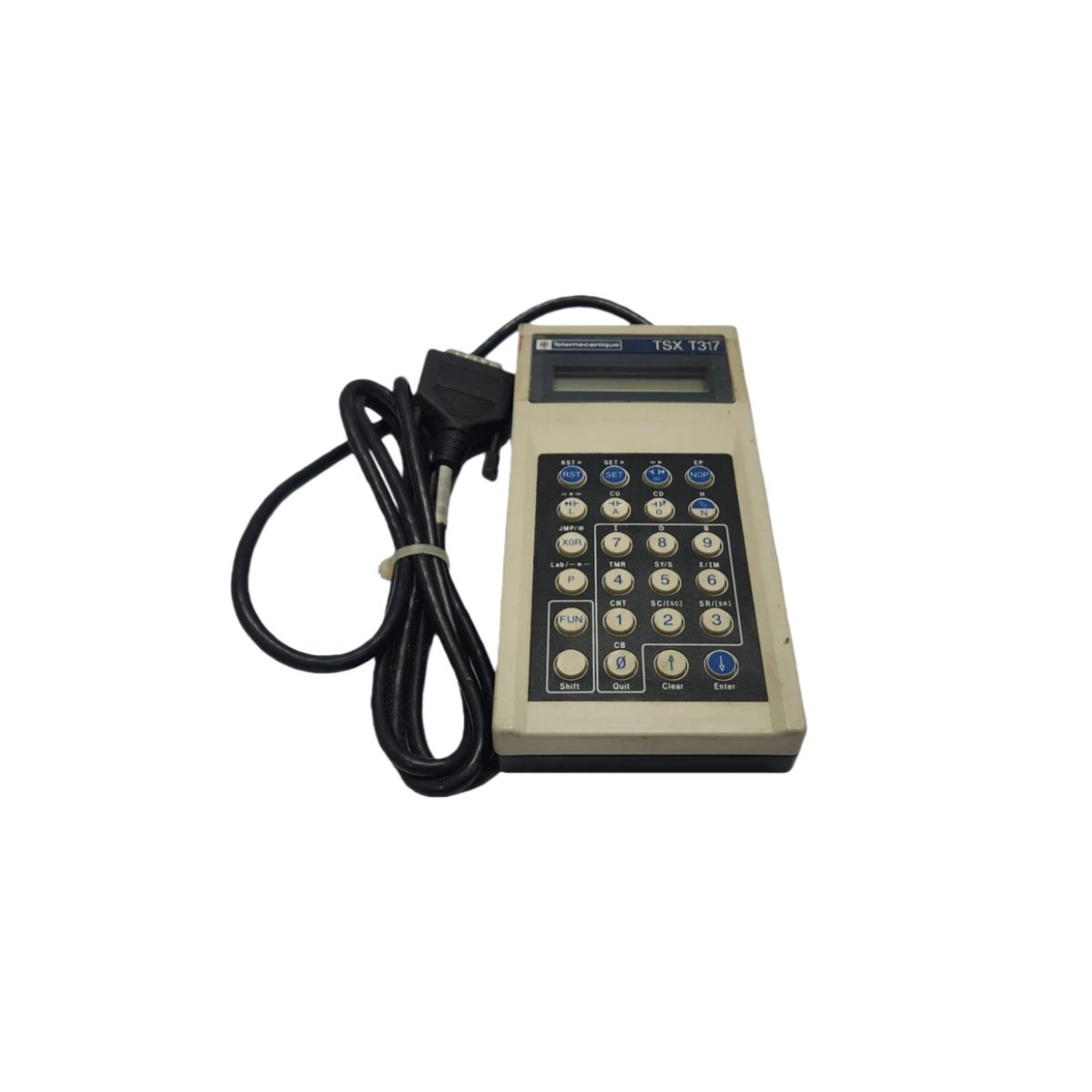

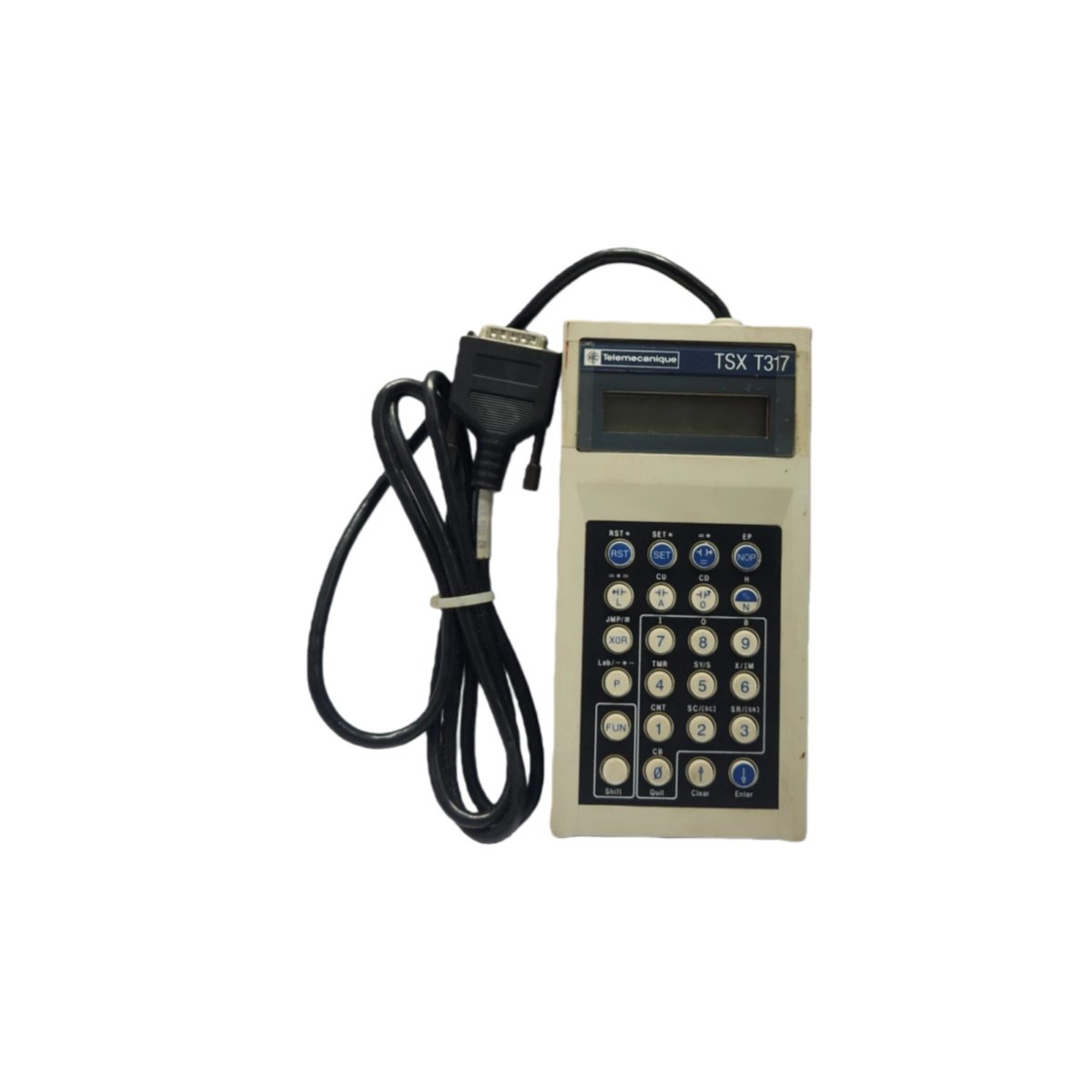

This terminal features a 52-key tactile keypad with membrane-sealed construction, offering reliable operation even in dusty industrial environments. The 4-line LCD display presents clear alphanumeric information, and users can adjust the LED backlight contrast for optimal visibility in varying lighting conditions. Moreover, the RS-232 serial port communicates at selectable baud rates from 9600 bps up to 115.2 kbps, ensuring compatibility with various PLC firmware versions. A built-in CR2032 battery preserves stored settings and diagnostic logs when disconnecting the unit from the PLC.
Physical Characteristics
Weighing only 0.75 kg, the TSXT3170 offers a balanced, ergonomic design for comfortable handheld use during extended programming sessions. Its compact dimensions of 220 mm x 110 mm x 45 mm allow easy storage in toolkits or control cabinet compartments. The integrated coiled cable extends to 3.0 meters, providing sufficient reach for operators to work comfortably while observing machine operations from a safe distance.
Environmental Suitability
The controller operates reliably within ambient temperatures from 0 °C to 55 °C and withstands storage conditions down to –25 °C and up to 70 °C. Its IP40 front-panel rating protects internal circuitry against solid objects larger than 1.0 mm, making it suitable for general-purpose industrial settings. However, users should avoid exposing the unit to direct moisture or corrosive substances to maintain long-term functionality.
Details
| Weight | 0.75 kg |
|---|---|
| Dimensions | 220 × 110 × 45 mm |
