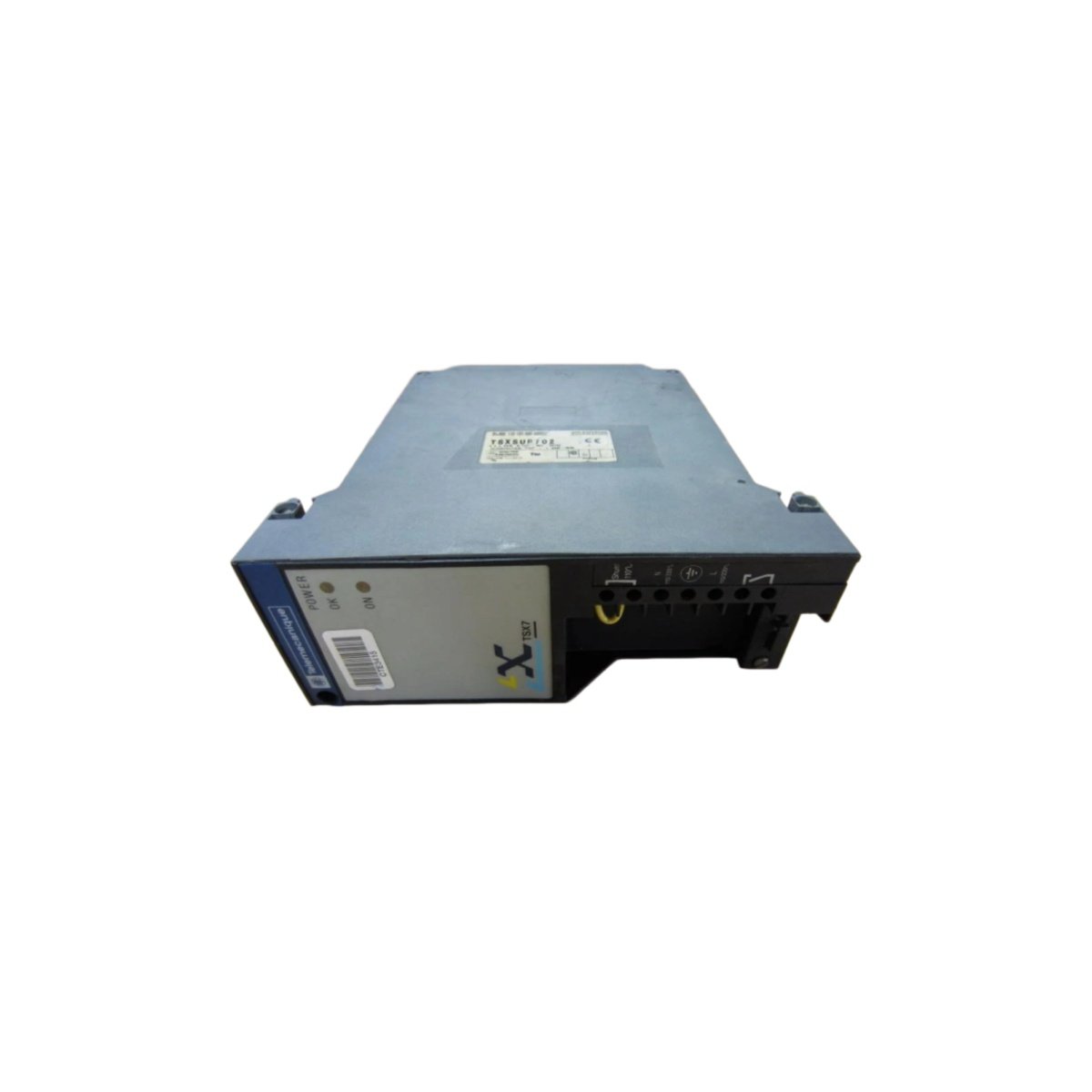

The Schneider TSXSUP702 is a high-performance power supply module for the Modicon Premium automation platform. This unit converts AC line voltage into stable DC power for the rack and its modules . It provides reliable power distribution with comprehensive protection for the entire control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Supply Module for Modicon Premium |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Input Range | 85–264 V AC |
| Output Voltage | 24 V DC (isolated) |
| Output Current | 1.5 A continuous |
| Output Power | 36 W maximum |
| Hold-up Time | ≥ 20 ms (at full load) |
| Protection | Overvoltage, overcurrent, overtemperature |
| Efficiency | ≥ 85% (typical) |
| Power Consumption | 10 W (no-load) |
| Dimensions (W x H x D) | 35 mm x 95 mm x 126 mm |
| Weight | Approx. 0.35 kg |
| Operating Temperature | 0°C to 60°C |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
Power Output and Distribution
The Schneider TSXSUP702 delivers a stable 24 V DC output at 1.5 A for powering the rack backplane . It provides isolated outputs to prevent ground loops and noise interference . The module maintains output voltage within ±5% regulation across all operating conditions . Additionally, its 20 ms hold-up time ensures uninterrupted operation during momentary power dips .
Protection Features and Reliability
This power supply module incorporates comprehensive protection mechanisms for system safety . It includes overvoltage protection to prevent damage to connected modules . The module also features short-circuit protection and overcurrent limiting for fault tolerance . Furthermore, overtemperature protection safeguards the unit during high ambient temperature conditions . These protections make it suitable for critical automation systems .
System Integration
The Schneider TSXSUP702 installs directly into the Premium rack’s dedicated power supply slot . It provides power to the rack’s backplane for distribution to all installed modules . Users can replace the module during operation without powering down the entire system . Typical applications include powering PLC racks in manufacturing plants, process control systems, and building automation facilities .
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 35 × 95 × 126 mm |
