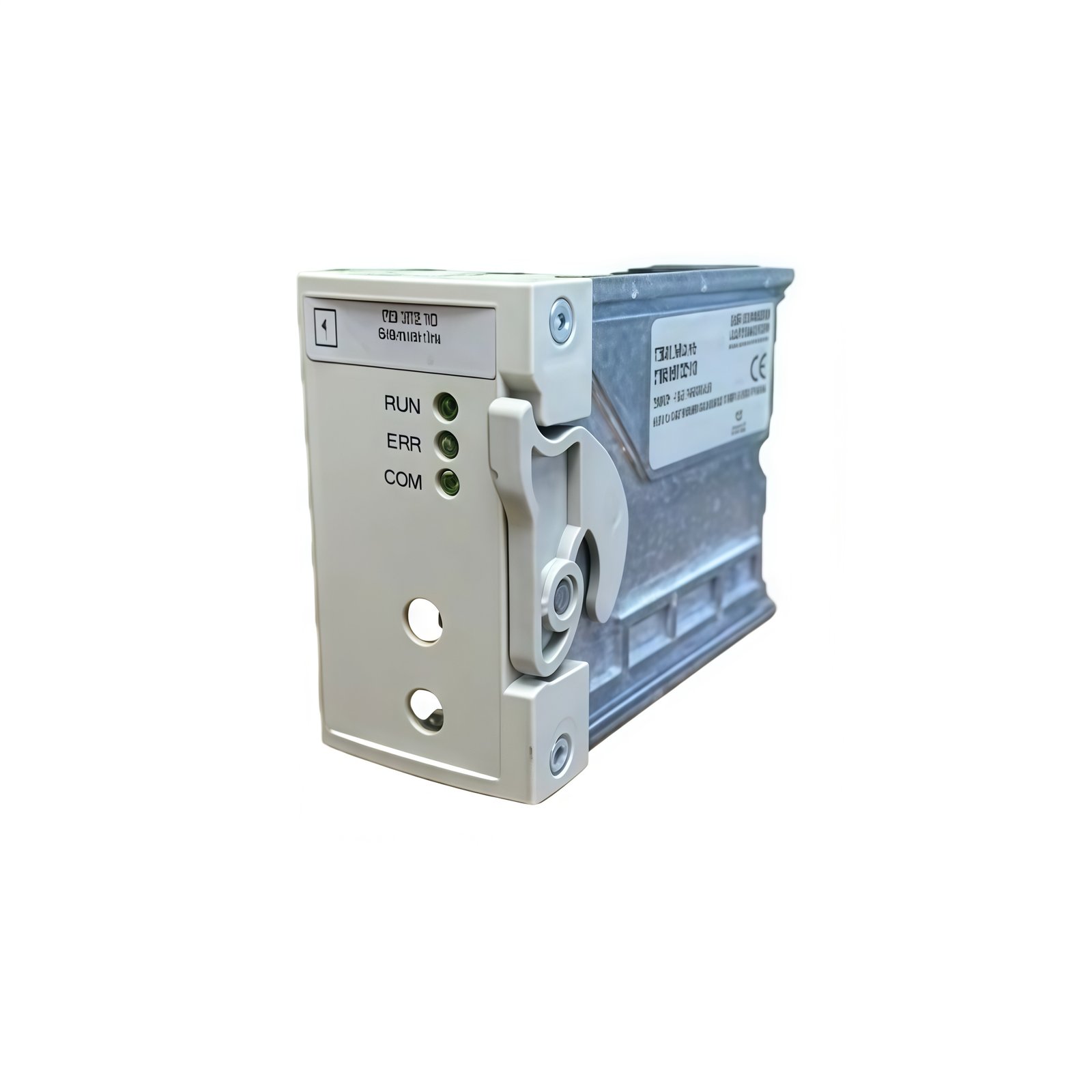

The Schneider TSXSTZ10 enables serial communication for TSX series PLC systems. This communication module weighs only 0.45 kilograms for lightweight rack mounting. Its dimensions measure 130 mm in height and 100 mm in depth. The width stands at 32 mm for standard TSX rack installation.
Technical Specifications of TSXSTZ10
The Schneider TSXSTZ10 provides two independent RS-485 serial ports. Each port supports data rates up to 19.2 kbps. The module operates on a 5 V DC supply from the backplane. It draws only 150 milliamps during normal communication tasks. Therefore, this communication module suits industrial networking applications very well.
Below is a complete breakdown of key parameters:
| Parameter | Value |
|---|---|
| Product Model | TSXSTZ10 |
| Manufacturer | Schneider Electric |
| Product Type | Communication Module |
| Number of Ports | 2 |
| Interface Type | RS-485 (isolated) |
| Data Rate | 19.2 kbps max |
| Protocol Support | Modbus, Uni-Telway |
| Backplane Supply | 5 V DC |
| Current Draw | 150 mA |
| Weight | 0.45 kg |
| Dimensions (H x W x D) | 130 x 32 x 100 mm |
| Connector Type | 9-pin SUB-D (each port) |
| Operating Temperature | 0°C to +55°C |
Communication Features and Isolation
The Schneider TSXSTZ10 includes 2500 V RMS isolation per port. Each RS-485 interface supports multi-drop networks with up to 32 devices. The module features LED indicators for transmit and receive activity. Consequently, you can monitor network traffic at a glance. The unit stores no internal energy or backup battery.
Installation and System Integration
You can install this module into any TSX series rack slot. It automatically configures its protocol during system startup. The Schneider TSXSTZ10 works seamlessly with TSX Premium and Micro PLCs. For similar industrial communication solutions, see the RMS-TSG-TZ-C static trip unit. That unit provides reliable protection for power distribution systems. However, the TSXSTZ10 focuses specifically on serial communication expansion.
Performance and Networking Features
This communication module supports both Master and Slave Modbus modes. It also handles Uni-Telway protocol for Schneider drives and HMIs. The Schneider TSXSTZ10 tolerates common mode voltages up to 2000 V. Moreover, its robust RS-485 drivers withstand bus contention without damage. These features make it ideal for factory automation networks and data collection systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
