AS-Interface Master Module for Modicon Premium Systems

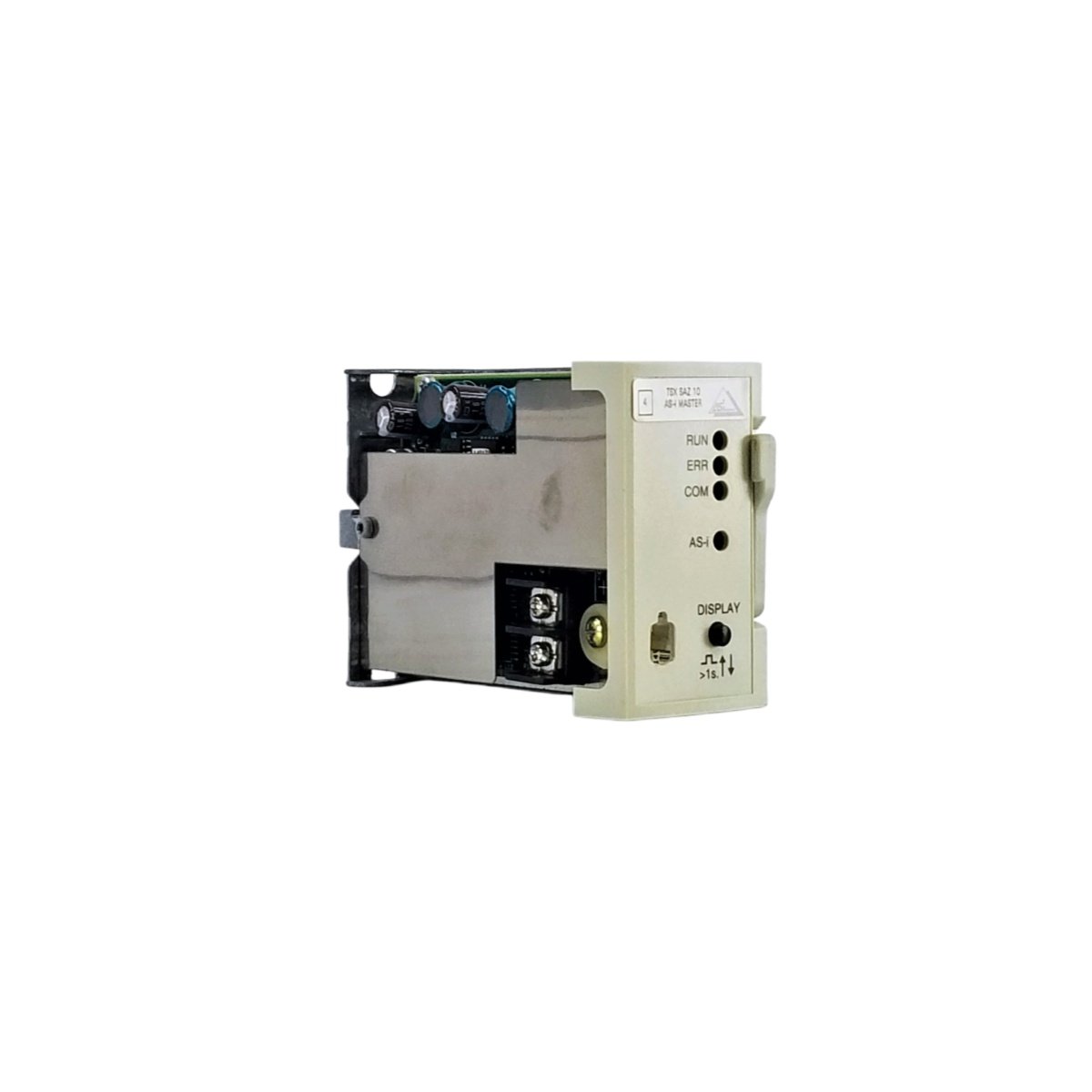

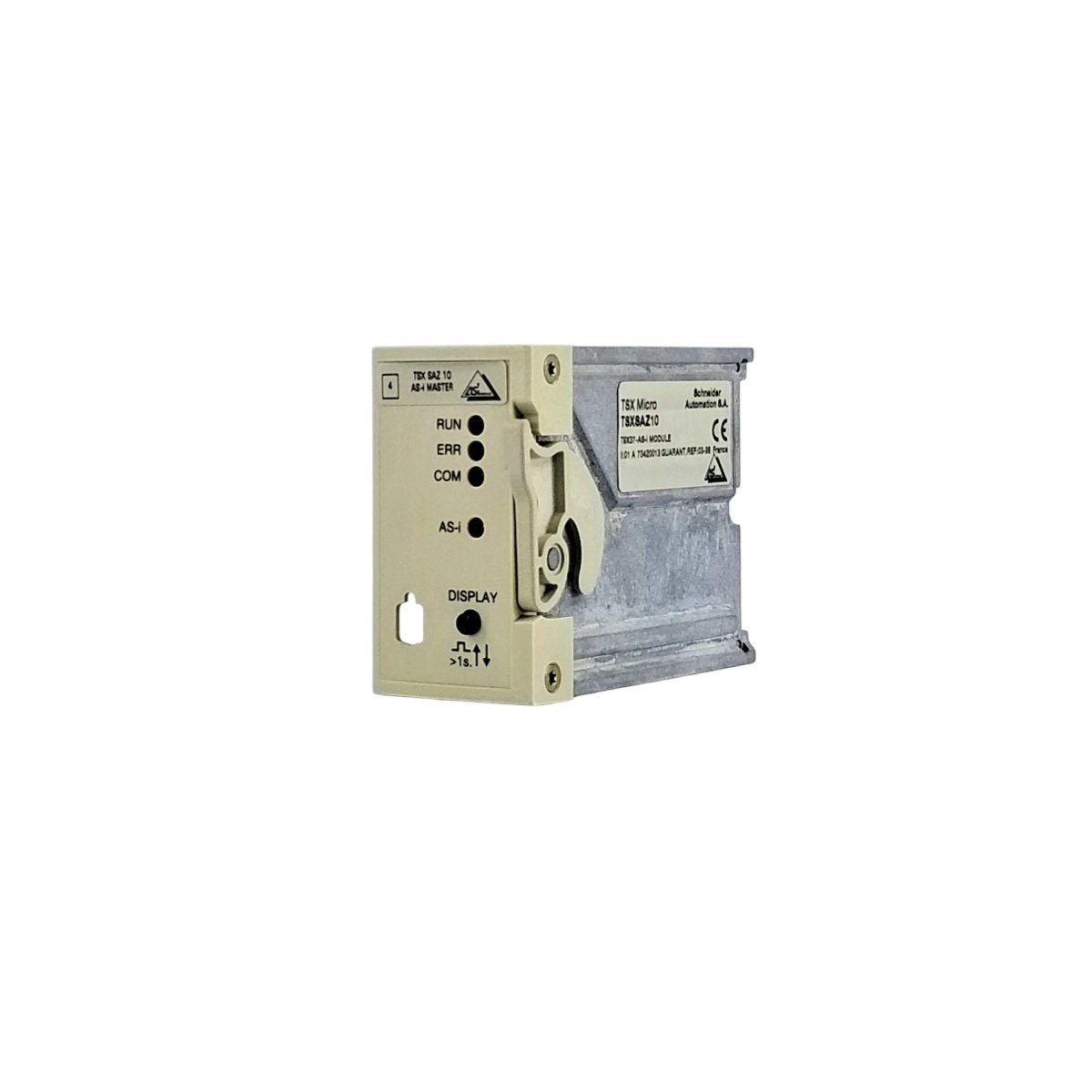

The Schneider TSXSAZ10 serves as an AS-Interface master module within the Modicon Premium automation platform. This module manages communication between the Premium controller and AS-i field devices. Its design simplifies wiring by using a two-wire unshielded cable for connecting up to 31 slaves.
This AS-Interface master module supports profile M0 and M1 for standard and extended addressing. A built-in power supply delivers the required AS-i bus voltage to connected slave devices. The module connects to the Premium backplane for seamless data exchange.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXSAZ10 |
| Type | AS-Interface Master Module |
| Platform | Modicon Premium |
| AS-i Specification | V2.11 |
| Addressing Mode | Standard (M0) and Extended (M1) |
| Number of Slaves | 31 (standard) or 62 (extended) |
| Cycle Time | 5 ms typical |
| AS-i Supply Voltage | 24 VDC (from external source) |
| Backplane Interface | Premium X-bus |
| Dimensions | 100 x 80 x 110 mm |
| Weight | 0.25 kg (approx.) |
| Operating Temp | 0 °C to 60 °C |
| Compliance | UL, CSA, CE |
The TSXSAZ10 supports both M0 and M1 addressing modes for maximum flexibility. Its 5 ms cycle time ensures fast response for time-critical applications. The module manages up to 62 extended-address slaves for larger installations.
This AS-Interface master module integrates directly with the Premium backplane. A diagnostic LED provides visual status indication for troubleshooting. The unit supports automatic slave configuration and parameter assignment.
The TSXSAZ10 pairs with any AS-i power supply and slave devices seamlessly. Its robust design operates reliably across standard industrial temperature ranges. Therefore, this module provides a cost-effective solution for field device communication.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 100 × 80 × 110 mm |
