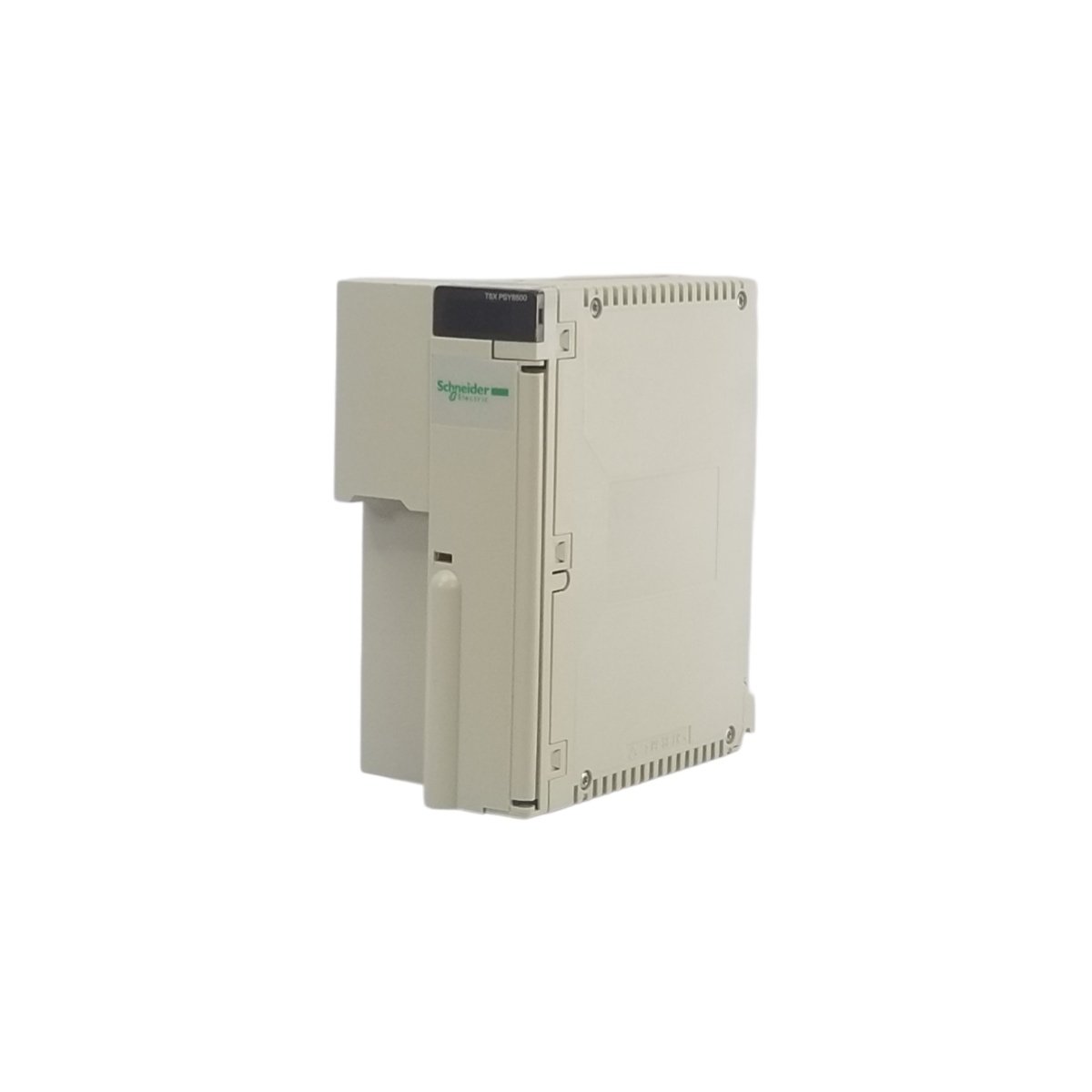

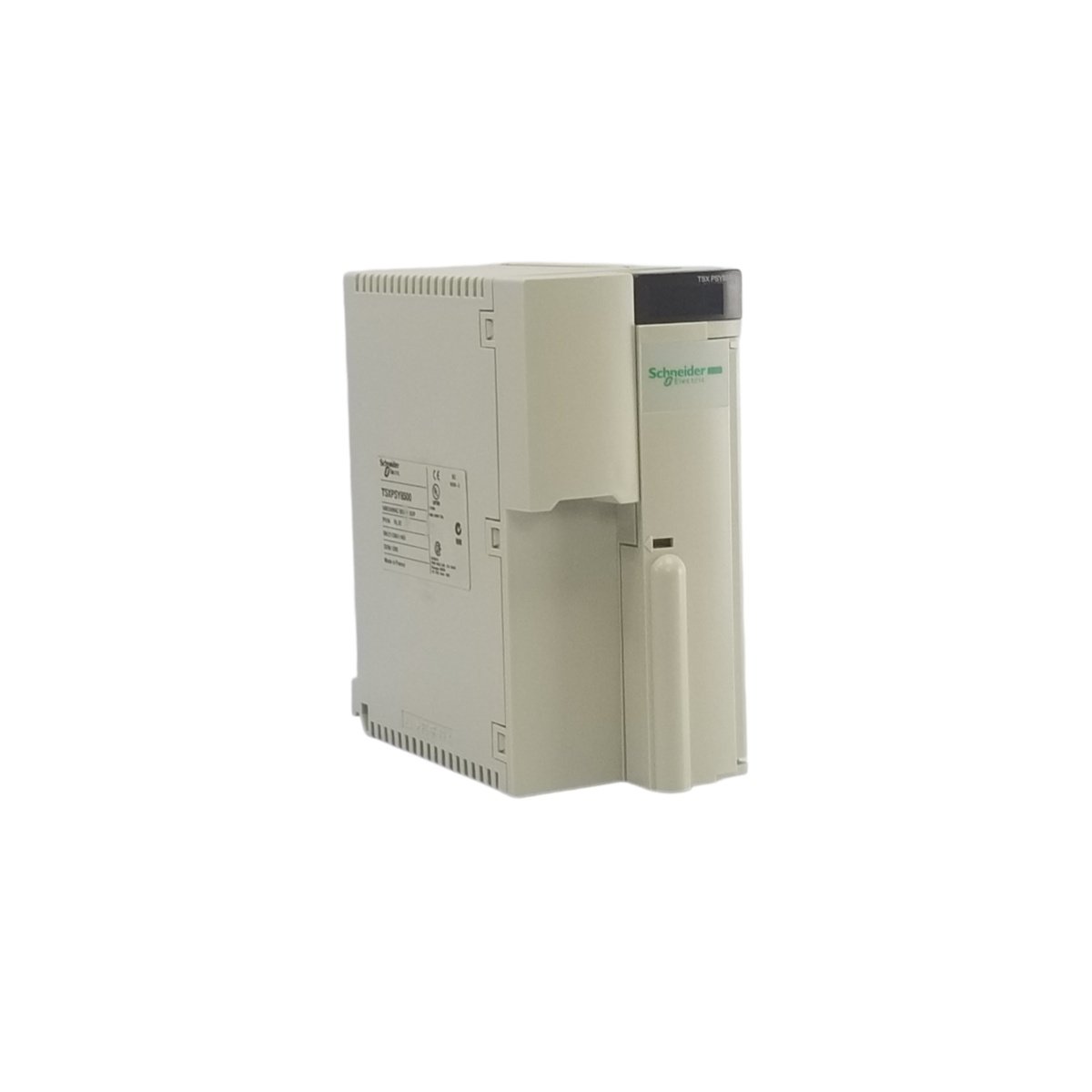

The Schneider TSXPSY8500M power supply module delivers regulated voltage to PLC racks within Schneider automation platforms. Engineers install this unit to feed the backplane and connected modules with stable current. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This module occupies a single slot inside a compatible Schneider PLC rack. It measures roughly 160 mm long, 100 mm wide, and 40 mm thick, while it weighs about 0.7 kg. Moreover, the front panel carries status LEDs and input voltage terminals.

Functional Capabilities and System Integration

The module converts AC input while it supplies regulated DC power to the backplane bus. Meanwhile, internal protection circuits guard against overload and short conditions. Stable output keeps modules running, therefore control operations continue without interruption.

Additionally, the design supports redundant power configurations for critical processes. As a result, plant operators reduce downtime risks from power failures. Clear status LEDs help technicians confirm voltage health at a glance. Natural convection cools the module inside standard control cabinets.

Installation and Maintenance Guidelines

Technicians should verify input voltage before they insert the TSXPSY8500M module. Afterward, checking LED indicators confirms stable output and proper backplane supply. Periodic inspection of input terminals prevents loose contacts and voltage drops. Finally, consult Schneider documentation for load calculations and compatible rack configurations.
