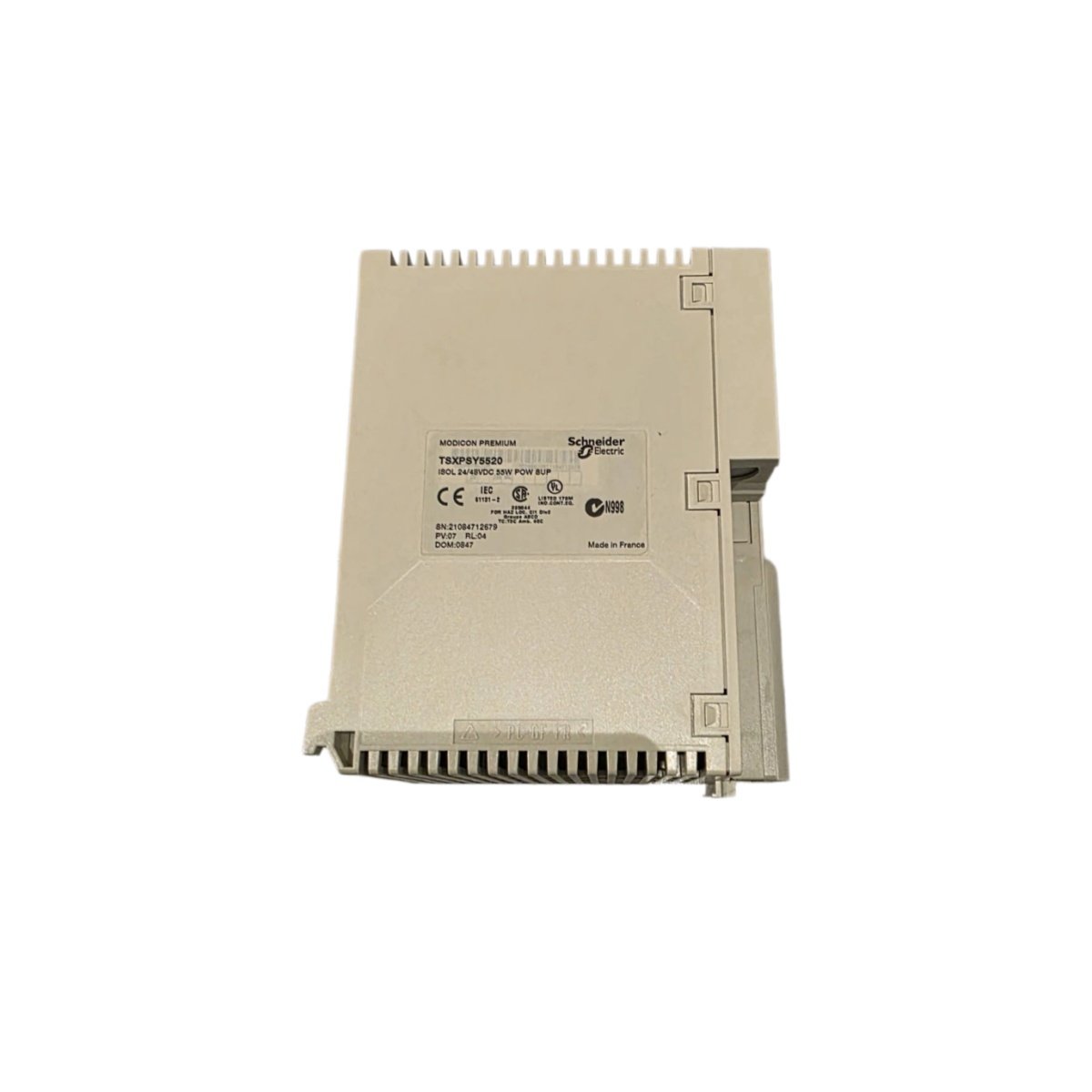

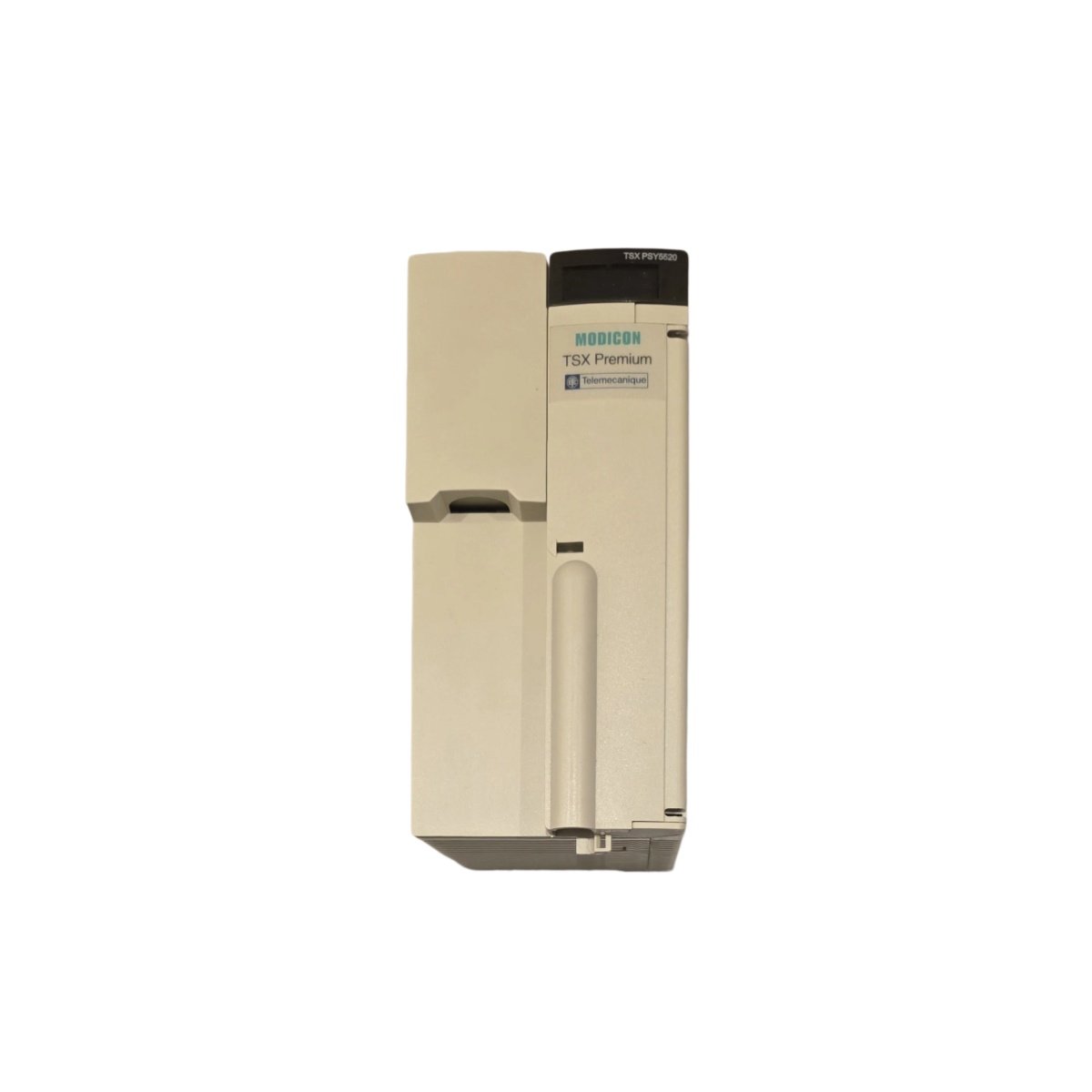

The TSXPSY5520MC delivers regulated DC power inside Schneider’s Modicon Premium automation platform. This module measures roughly 9.4 inches long, 1.6 inches wide, and 5.1 inches high. Moreover, it weighs about 1.4 pounds, which suits standard rack installation. Engineers specify the TSXPSY5520MC when they need stable rail voltages for processors and I/O cards.
Technical Specifications and Interface Details
The unit converts AC mains input into regulated DC output for backplane distribution. Specifically, it supplies 24 VDC at a defined current rating for connected modules. Additionally, screw terminals accept field wiring without special tools. Front-panel LEDs reveal output status and fault conditions during service.
| Parameter | Specification |
|---|---|
| Module Type | Power Supply Module |
| Input | AC mains |
| Output | 24 VDC regulated |
| Dimensions | 9.4 x 1.6 x 5.1 in |
| Weight | ~1.4 lbs |
| Terminals | Screw-type field connections |
| Indicators | Output and fault LEDs |
| Mounting | Modicon Premium rack |
Energy Storage and Output Stability
Internal capacitors on the TSXPSY5520MC provide substantial energy storage for smooth DC output. Consequently, the supply rides through brief mains dips without disturbing logic circuits. This buffering also filters ripple that could affect analog measurements. The design therefore supports consistent performance across demanding plant conditions.
Installation and Compatibility Notes
Because the TSXPSY5520MC slides into standard Modicon Premium racks, technicians finish installation quickly. They should verify mains voltage before they energize the supply. Furthermore, the module integrates smoothly with existing Premium control hardware. Always store spare units in anti-static packaging to protect sensitive components.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
