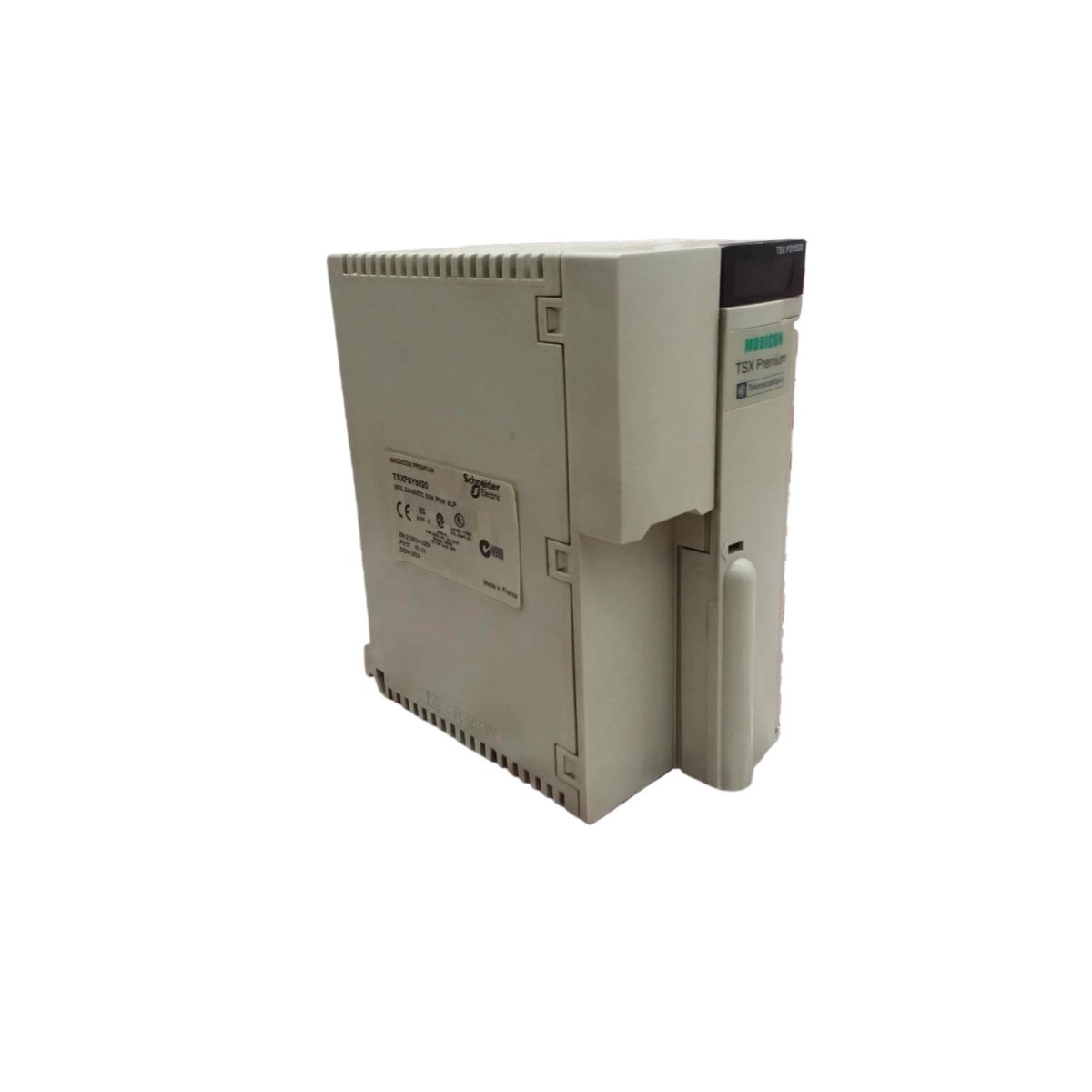

This low-profile power supply module delivers regulated DC energy to Modicon Premium automation systems. The Schneider TSXPSY5520 converts 100–240 V AC input into stable 24 V DC output for basic control configurations. Its compact footprint suits space-constrained cabinets while maintaining reliable performance for small-scale applications.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | Schneider TSXPSY5520 |
| Product Type | Power Supply Module (AC/DC Converter) |
| Dimensions (W x H x D) | 40 mm x 130 mm x 120 mm |
| Weight | 0.42 kg |
| Input Voltage Range | 100–240 V AC (automatic selection) |
| Input Frequency | 47–63 Hz |
| Input Current | 1.2 A maximum at 100 V AC |
| Output Voltage | 24 V DC ± 5 % |
| Output Current | 1.7 A continuous |
| Output Power | 40 W maximum |
| Hold-Up Time | 15 ms minimum (at full load) |
| Built-in Protection | Overvoltage and short-circuit protection |
| Backplane Interface | Dedicated Premium rack connector |
| Efficiency | ≥ 85 % typical |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Cooling Method | Natural convection (fanless design) |
Power Conversion and Input Versatility
The Schneider TSXPSY5520 automatically adapts to any input between 100 V and 240 V AC without manual adjustments. Its 47–63 Hz frequency tolerance accommodates both 50 Hz and 60 Hz power networks seamlessly. The module draws only 1.2 A at 100 V AC, reducing stress on upstream protective devices. Moreover, the 85 % efficiency rating keeps energy losses minimal and lowers operational expenses.
Output Capacity and Load Support
This compact supply provides 1.7 A at 24 V DC, sufficient for powering CPU processors and small I/O configurations. The 40 W total output capacity supports basic automation tasks such as conveyor monitoring and simple machine control. A 15 ms hold-up time maintains output during brief power disturbances, preventing unexpected processor resets. Furthermore, integrated overvoltage and short-circuit protection shield connected modules from electrical faults.
Mechanical Design and Space Efficiency
The Schneider TSXPSY5520 occupies a single slot in the Premium rack with its 40 mm width, 130 mm height, and 120 mm depth. Its lightweight 0.42 kg construction minimizes mechanical strain on the backplane and simplifies installation procedures. The front panel includes a removable terminal block for AC supply wiring and a green LED for power-good indication. Natural convection cooling eliminates moving parts, enhancing long-term reliability in dusty environments.
Thermal Performance and Environmental Suitability
This module dissipates heat through its ventilated housing without requiring forced airflow or additional fans. Its 0 °C to 60 °C operating range fits standard industrial control rooms and panel installations. An IP20 protection rating demands enclosure mounting but allows straightforward front-panel access for visual status checks.
System Compatibility and Application Scope
The Schneider TSXPSY5520 connects directly to the Premium backplane, distributing power to CPU modules and I/O cards within the rack. Its output serves logic processors, communication interfaces, and discrete input modules in compact system layouts. Consequently, this power supply suits small machinery controls, packaging equipment, and standalone process stations.
Details
| Weight | 0.42 kg |
|---|---|
| Dimensions | 40 × 130 × 120 mm |
