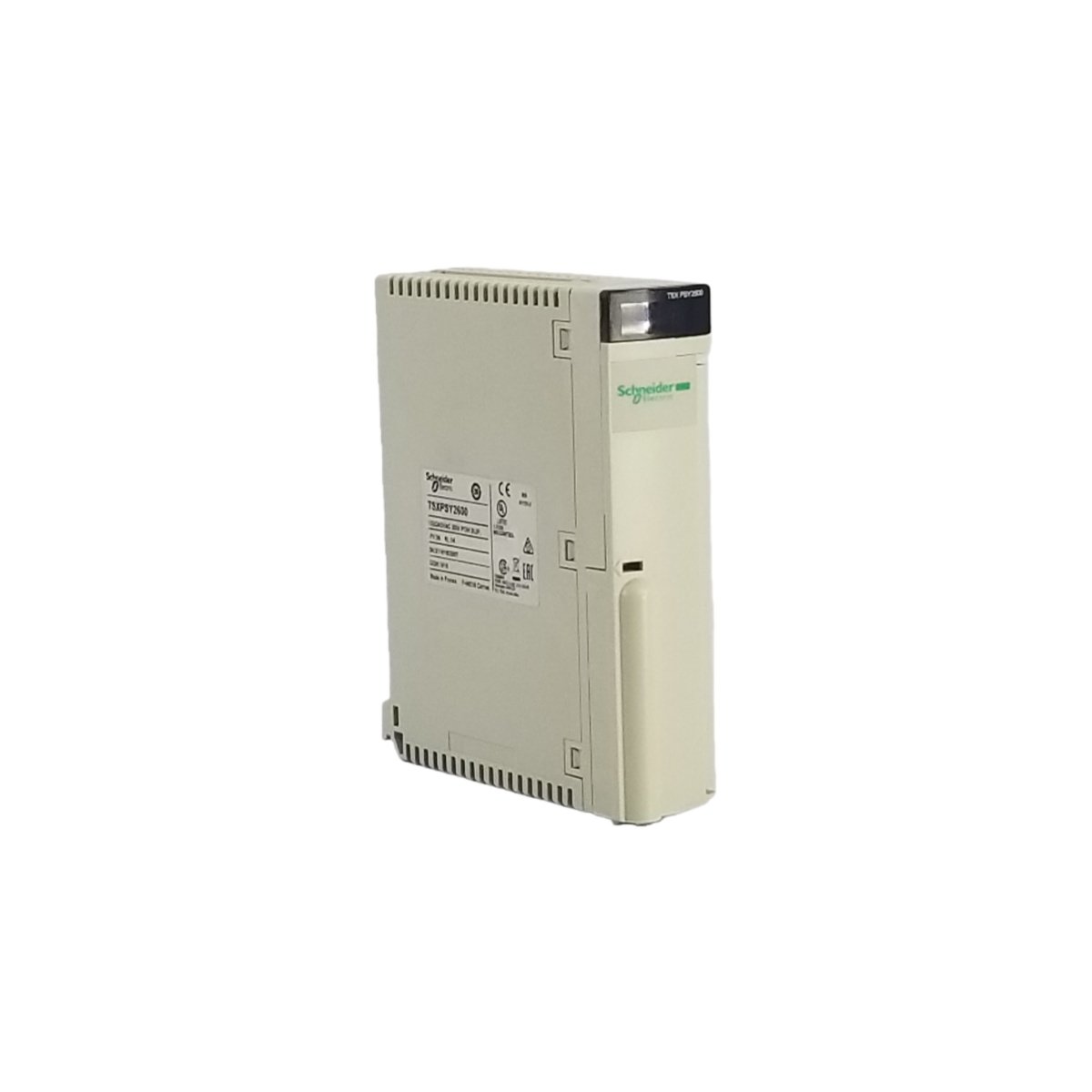

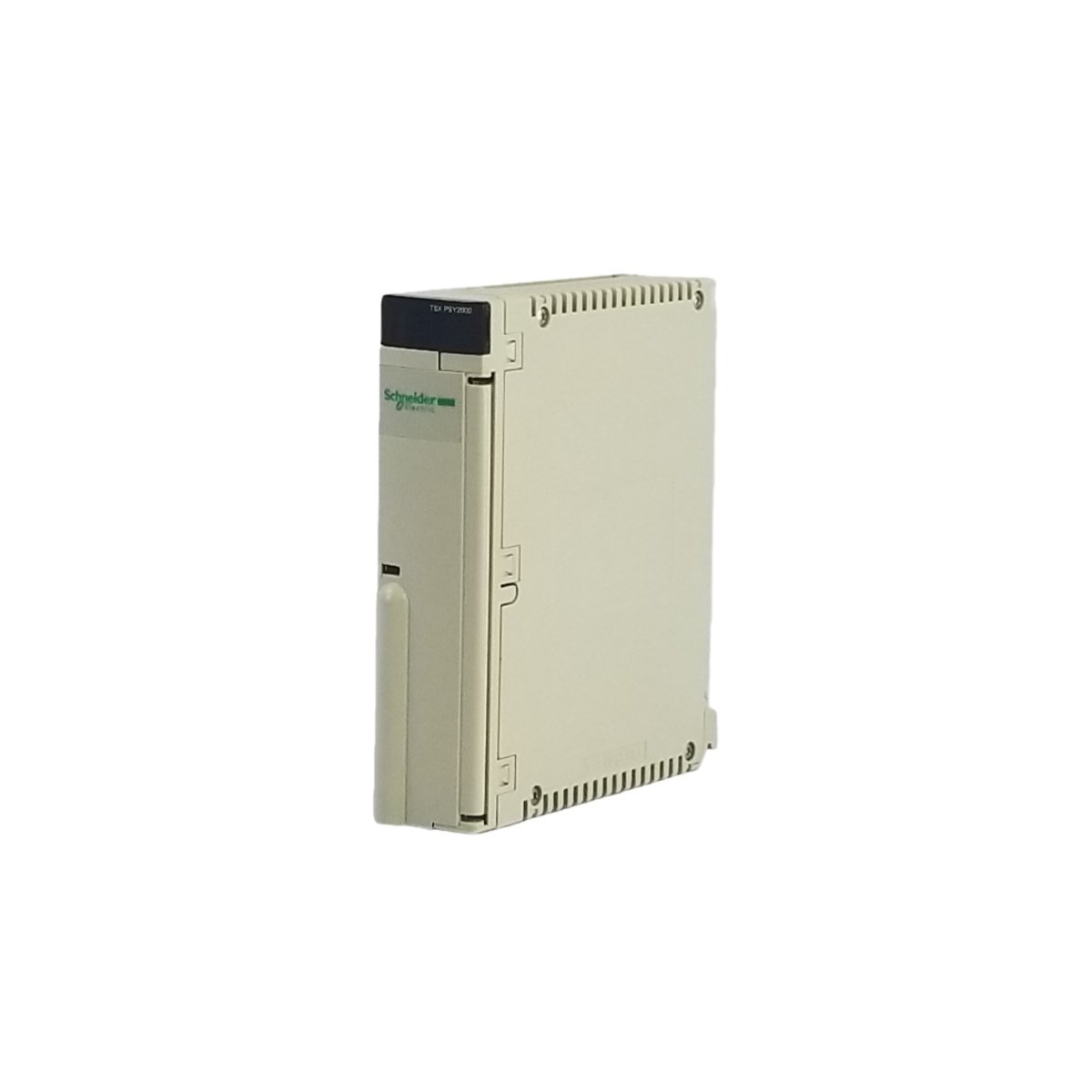

This power supply module provides DC power for Modicon TSX Micro PLC systems. It converts AC line voltage to regulated outputs for backplane modules. Therefore, this component ensures reliable system operation in industrial environments.

Physical Dimensions and Weight Specifications

The Schneider TSXPSY2600M features a compact housing for DIN rail mounting. Its width measures 56 mm for standard industrial enclosures. The total depth reaches 100 mm including the terminal block. Consequently, technicians can install this unit in tight cabinet spaces.

Interface Types and Connection Layout

The Schneider TSXPSY2600M provides screw-clamp terminals for AC input wiring. Separate screw terminals deliver DC output to the backplane. The front panel carries a green LED for output status indication. Hence, operators can verify power availability at a quick glance.

Component Count and Internal Architecture

This power supply contains one main board with a switching regulator circuit. The board holds three large electrolytic capacitors for output filtering. You will also find a bridge rectifier and a flyback transformer. An onboard fuse protects the unit from overcurrent events.

Energy Storage and Hold-Up Time

The Schneider TSXPSY2600M stores energy in three 680µF output capacitors. This storage provides a 15 ms hold-up time after AC loss. Therefore, the PLC system continues operating during brief power interruptions. The unit requires no external battery for this function.

Protection Features and Operating Range

The power supply includes short-circuit and overvoltage protection. It also features overtemperature shutdown with automatic recovery. Users can operate this unit in temperatures from 0°C to 55°C. Natural convection cooling eliminates the need for an internal fan.
