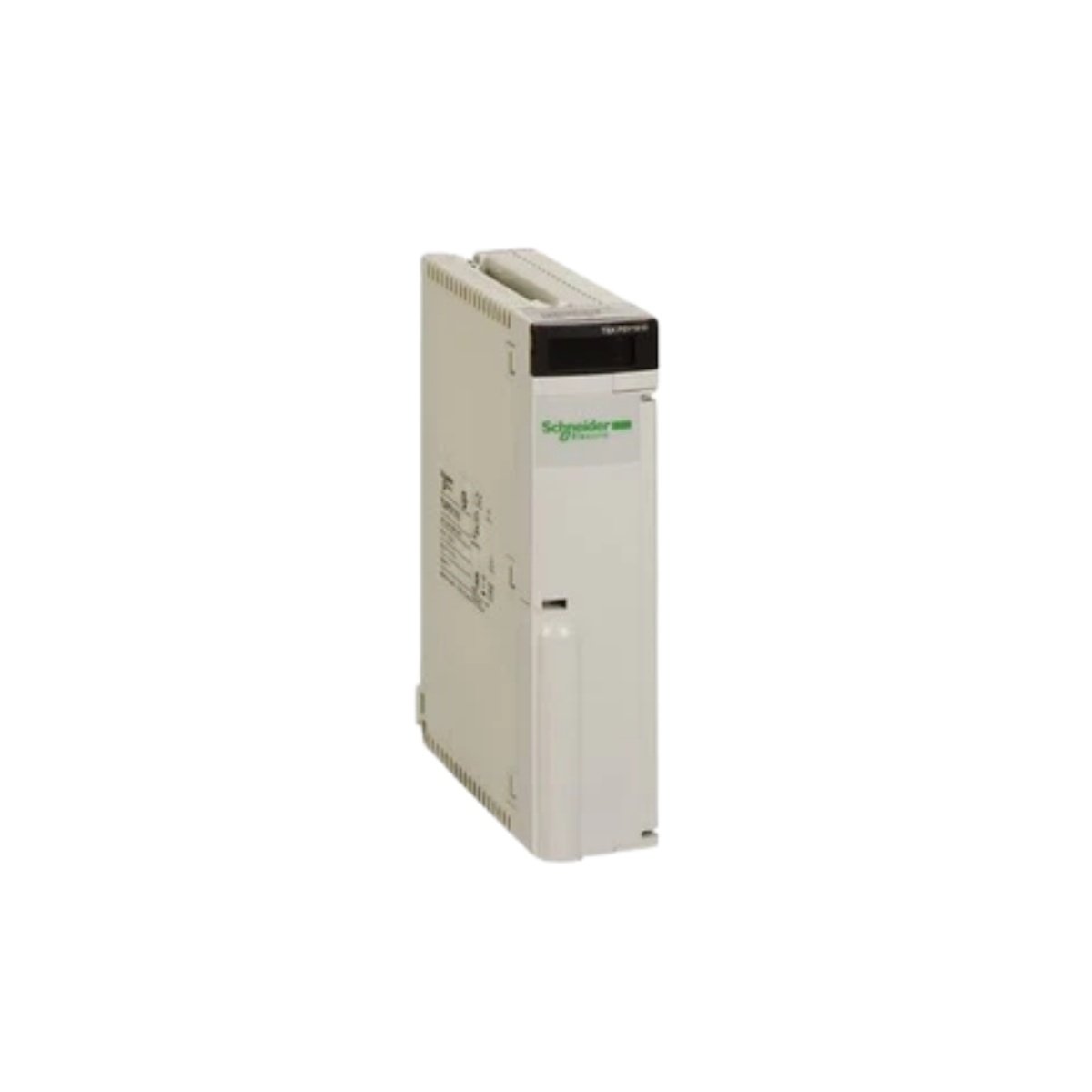

This high-output power supply module provides regulated DC power to Modicon Premium automation systems. The Schneider TSXPSY1610MC converts 100–240 V AC input into stable 24 V DC output for backplane and field devices. Its rugged design ensures continuous operation in demanding industrial environments with wide voltage tolerance.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | Schneider TSXPSY1610MC |
| Product Type | Power Supply Module (AC/DC Converter) |
| Dimensions (W x H x D) | 80 mm x 130 mm x 120 mm |
| Weight | 0.85 kg |
| Input Voltage Range | 100–240 V AC (automatic range selection) |
| Input Frequency | 47–63 Hz |
| Input Current | 2.5 A maximum at 100 V AC |
| Output Voltage | 24 V DC ± 5 % |
| Output Current | 6.5 A continuous |
| Output Power | 160 W maximum |
| Hold-Up Time | 20 ms minimum (at full load) |
| Built-in Protection | Overvoltage, overcurrent, and short-circuit protection |
| Backplane Interface | Dedicated Premium rack connector |
| Efficiency | ≥ 88 % typical |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Cooling Method | Natural convection (no fan) |
Power Conversion and Input Flexibility
The Schneider TSXPSY1610MC accepts a wide 100–240 V AC input with automatic voltage adaptation, eliminating manual selector switches. Its 47–63 Hz frequency range accommodates global power grids without performance degradation. The module draws a maximum 2.5 A at 100 V AC, minimizing upstream circuit breaker requirements. Furthermore, the 88 % efficiency rating reduces heat generation and lowers energy operating costs.
Output Performance and Load Capacity
This power supply delivers 6.5 A at 24 V DC, providing ample current for CPU modules, I/O racks, and connected field sensors. The 160 W total output capacity supports extensive system configurations with multiple expansion chassis. A 20 ms hold-up time during power dips ensures uninterrupted CPU operation through brief line disturbances. Moreover, integrated overvoltage and overcurrent protection safeguard downstream components from fault conditions.
Mechanical Construction and Mounting
The Schneider TSXPSY1610MC occupies a dedicated slot in the Premium rack and measures 80 mm wide, 130 mm high, and 120 mm deep. Its 0.85 kg weight contributes to stable rack installation without additional bracing. The front panel includes a removable terminal block for AC input wiring and LED indicators for power status. Natural convection cooling eliminates fan noise and reduces maintenance requirements over the module’s service life.
Thermal Management and Environmental Tolerance
This module dissipates heat efficiently through its ventilated metal housing without requiring forced airflow. Its operational range from 0 °C to 60 °C accommodates standard industrial cabinet installations. An IP20 rating requires enclosure mounting but permits convenient front-panel access for visual inspection and wiring checks.
System Integration and Compatibility
The Schneider TSXPSY1610MC connects directly to the Premium backplane, distributing power to all chassis-based modules. Its output powers CPU processors, communication adapters, and discrete I/O cards within the same rack. Consequently, this power supply serves as the central energy source for manufacturing lines, process control stations, and packaging systems.
Details
| Weight | 0.85 kg |
|---|---|
| Dimensions | 80 × 130 × 120 mm |
