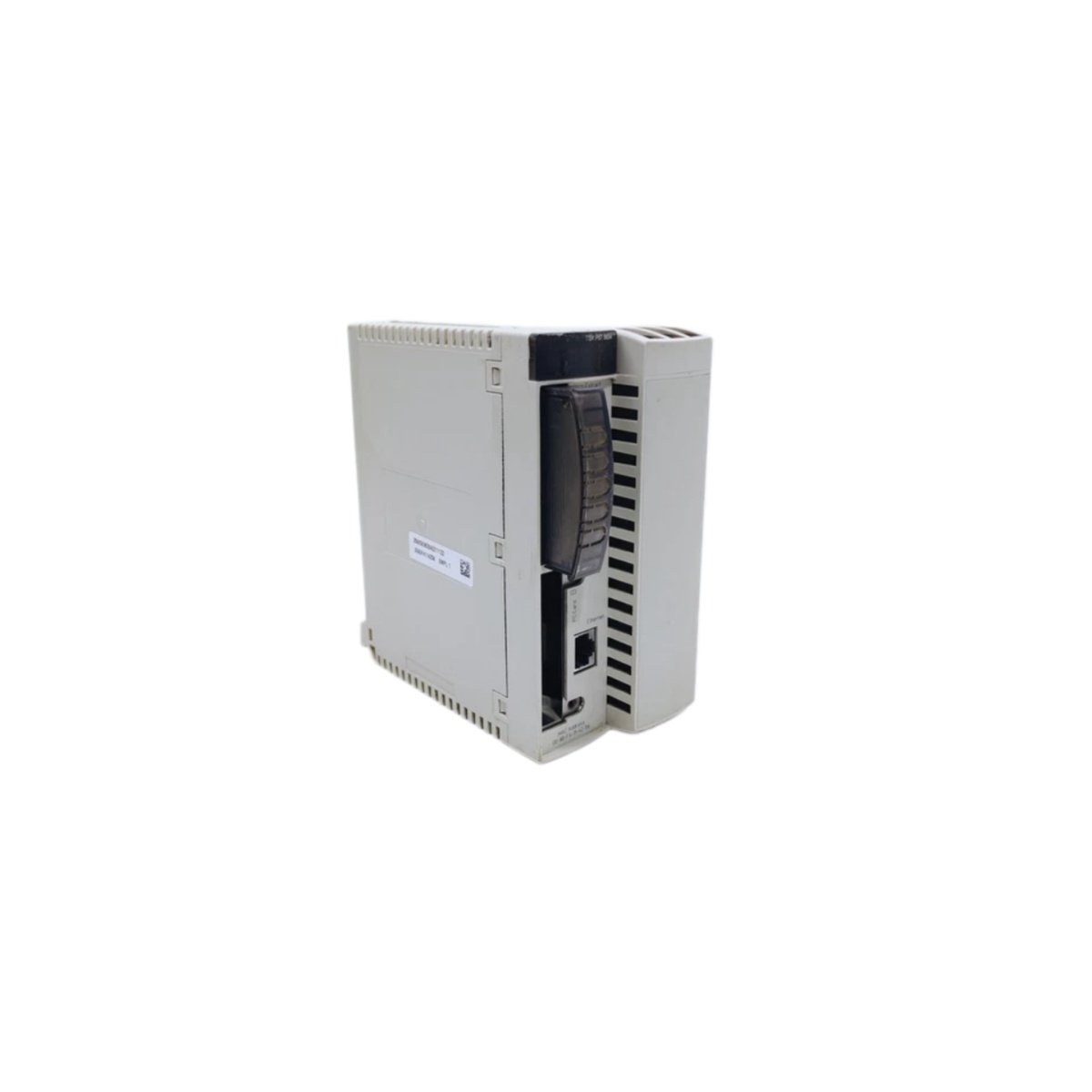

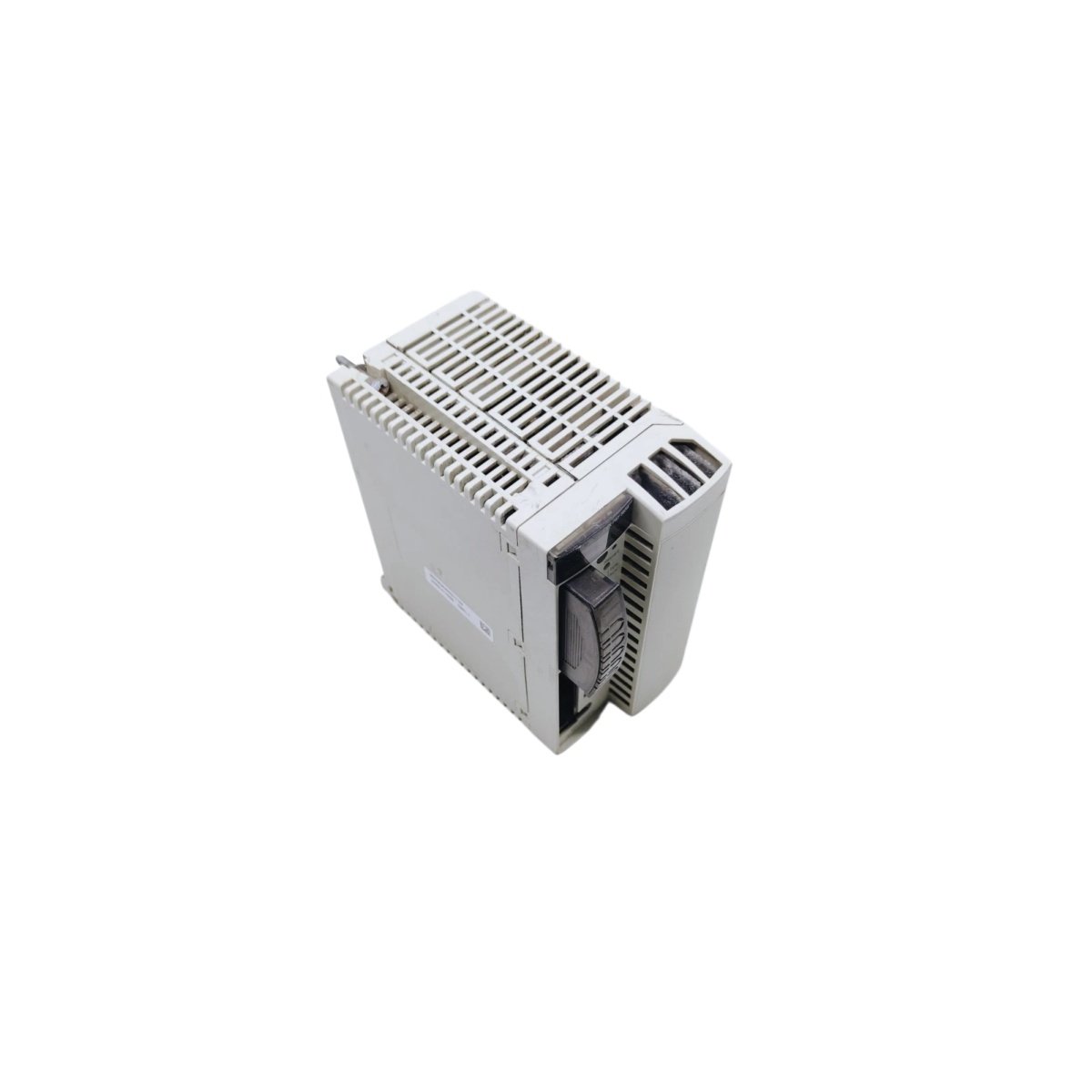

The TSXP575634M serves as a high-capacity Unity processor within Schneider’s Modicon Premium automation family. This controller measures roughly 10.4 inches long, 1.6 inches wide, and 5.9 inches high. Moreover, it weighs approximately 1.5 pounds, which suits standard rack installation. Engineers select the TSXP575634M when they need unified control for demanding process applications.
Technical Specifications and Interface Details

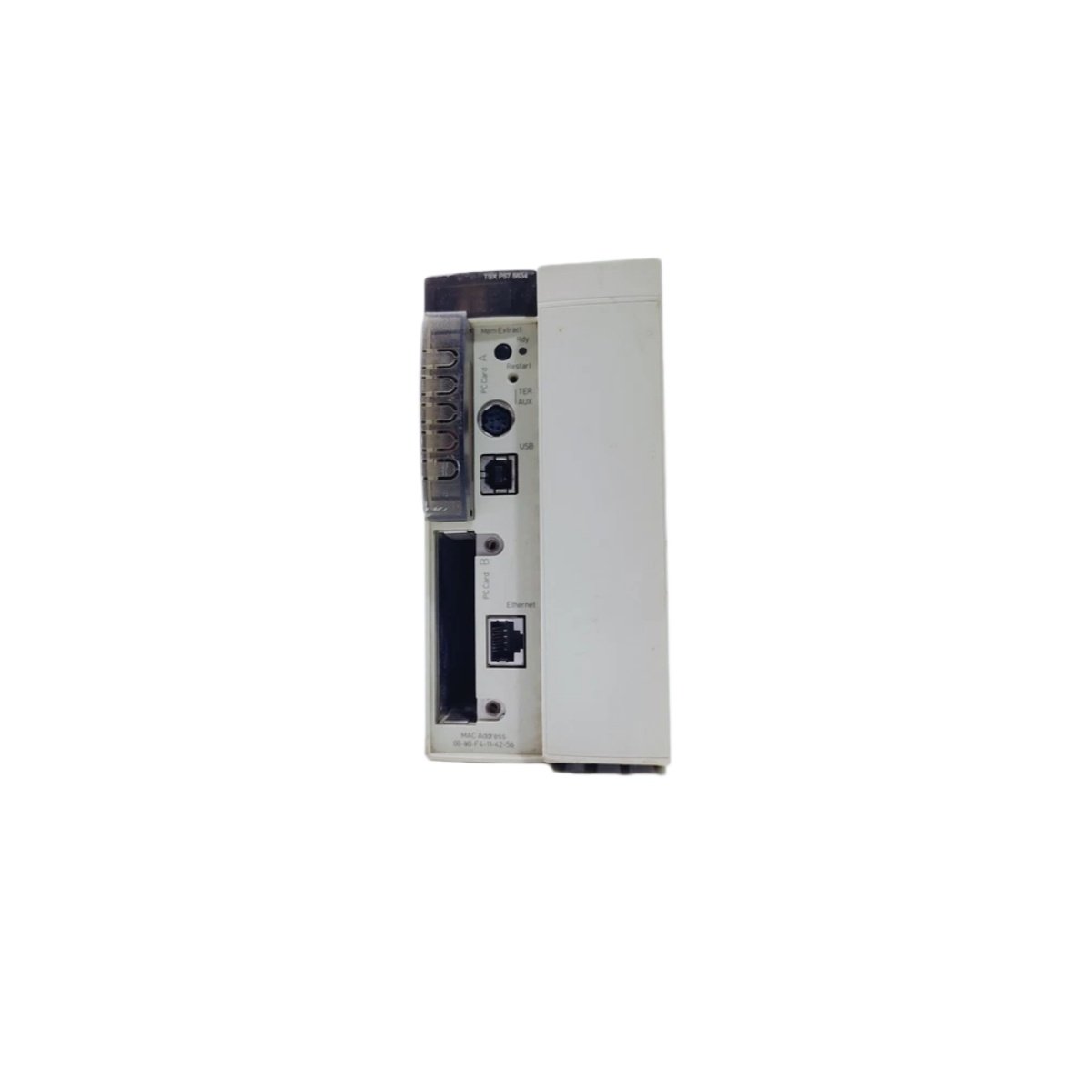

The processor runs Unity Pro software and therefore supports IEC 61131-3 programming languages. Specifically, it provides 16 MB of internal RAM for program and data handling. Additionally, integrated ports deliver Modbus, Ethernet, and USB connectivity. This combination streamlines configuration, diagnostics, and network integration.
| Parameter | Specification |
|---|---|
| Module Type | Unity PLC Processor |
| Program Memory | 16 MB RAM |
| Software | Unity Pro, IEC 61131-3 |
| Dimensions | 10.4 x 1.6 x 5.9 in |
| Weight | ~1.5 lbs |
| Interfaces | Modbus, Ethernet, USB |
| Mounting | Modicon Premium rack |
| Format | Double width |
Energy Storage and Program Retention
A backup battery on the TSXP575634M preserves application code during power interruptions. Consequently, the processor restarts without reloading programs from external media. Internal capacitors further stabilize logic voltage across brief supply dips. This buffering therefore protects critical control sequences in continuous production environments.
Installation and Compatibility Notes
Because the TSXP575634M fits directly into Modicon Premium racks, commissioning stays efficient. Technicians should confirm firmware versions before they migrate legacy applications. Furthermore, the processor accepts expansion modules for added I/O capacity. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
