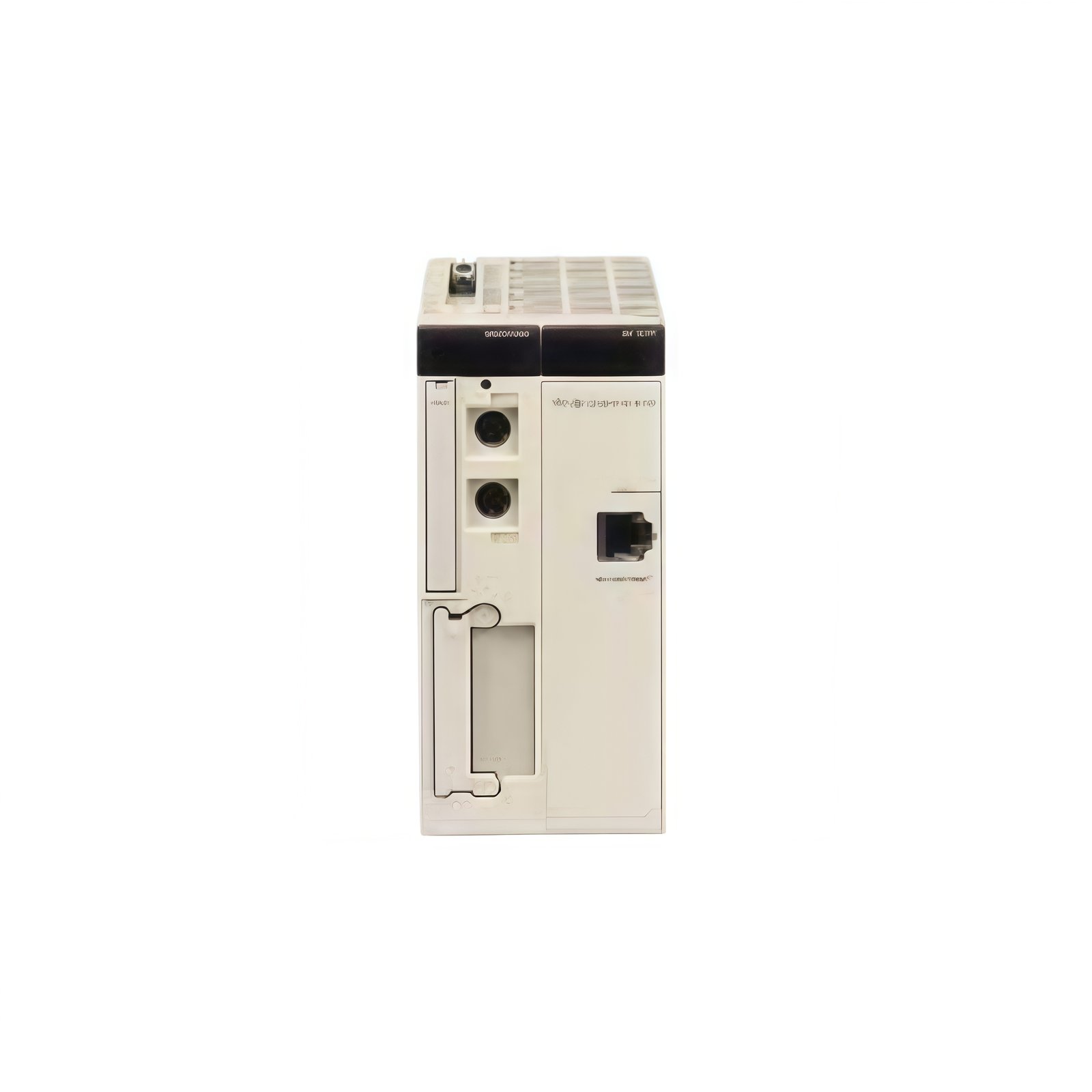

The TSXP574823M works as a premium processor module within Schneider Modicon Premium PLC systems. This unit executes control logic, manages memory, and coordinates data across Ethernet and FIP networks. Consequently, engineers gain a powerful controller for complex process automation.

Technical Specifications Overview

The TSXP574823M combines a compact slot width with rugged industrial construction. Moreover, its parameter set helps engineers plan memory allocation and network topology accurately.

Interface and Communication Details

The TSXP574823M communicates through Ethernet, FIP, and backplane bus ports. Therefore, it exchanges data quickly with distributed I/O and supervisory systems. The integrated Ethernet port supports programming and SCADA connectivity. In addition, the module draws 24 V DC directly from the Premium rack power rail.

Physical Characteristics and Installation

This processor occupies one standard slot in a Premium rack. Furthermore, its 260 mm width accommodates integrated communication connectors. The TSXP574823M weighs roughly 1.0 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the board, then secure it with the front retaining screw.

Operational Role and Maintenance

Engineers apply the TSXP574823M for process control, motion coordination, and data logging tasks. Meanwhile, front-panel LEDs show live module status during troubleshooting. A backup battery preserves RAM contents and the real-time clock during outages. Accordingly, plant teams should track cell voltage during routine inspections.
