Technical Specifications Overview

Functional Overview and Processing Performance

This Unity processor module serves as the central brain for Modicon Premium control systems. It executes logic programs, processes I/O data, and manages communication tasks. The TSXP574634 delivers exceptional processing speed with 0.09 µs per Boolean instruction. Moreover, the module handles both discrete and process control applications with equal proficiency. It supports up to 1024 digital channels and 128 analog channels for extensive machine control. The integrated communication ports enable direct connectivity to HMIs, drives, and field devices. Consequently, this processor suits mid-sized to large automation projects efficiently.

Memory Architecture and Data Management

The Schneider TSXP574634 provides ample memory for complex automation applications. Its 4 MB RAM holds the user program, data tables, and system variables. The 3 MB flash memory retains the program and configuration without battery backup. Additionally, a supercapacitor maintains the program memory for up to 7 days during power outages. This feature prevents program loss during short interruptions without requiring a battery. The processor also includes 256 KB of dedicated system memory for operating system functions. The application memory supports up to 4096 function blocks for advanced process control.

Communication Interfaces and Protocol Support

The module features three built-in communication ports for flexible connectivity. The Ethernet port supports Modbus TCP, EtherNet/IP, and Schneider UNI-TE protocols. It also hosts an integrated web server for remote diagnostics and monitoring. The RS-232 port enables direct connection to programming consoles and HMIs. The RS-485 port provides multi-drop networking with remote I/O and field devices. The TSXP574634 supports simultaneous operation of all three communication channels. This multi-port architecture simplifies integration in complex automation networks.

Execution Performance and Real-Time Capabilities

The processor achieves exceptional execution speeds for demanding control applications. Boolean instructions execute in just 0.09 µs for rapid logic scanning. Numeric instructions complete in 0.38 µs for efficient mathematical operations. The module also supports multiple task types including cyclic, periodic, and event-driven tasks. Event tasks trigger in response to specific conditions for immediate response. The processor maintains deterministic execution for critical control loops. This predictable performance ensures stable and reliable process control.

Physical Architecture and Installation Details

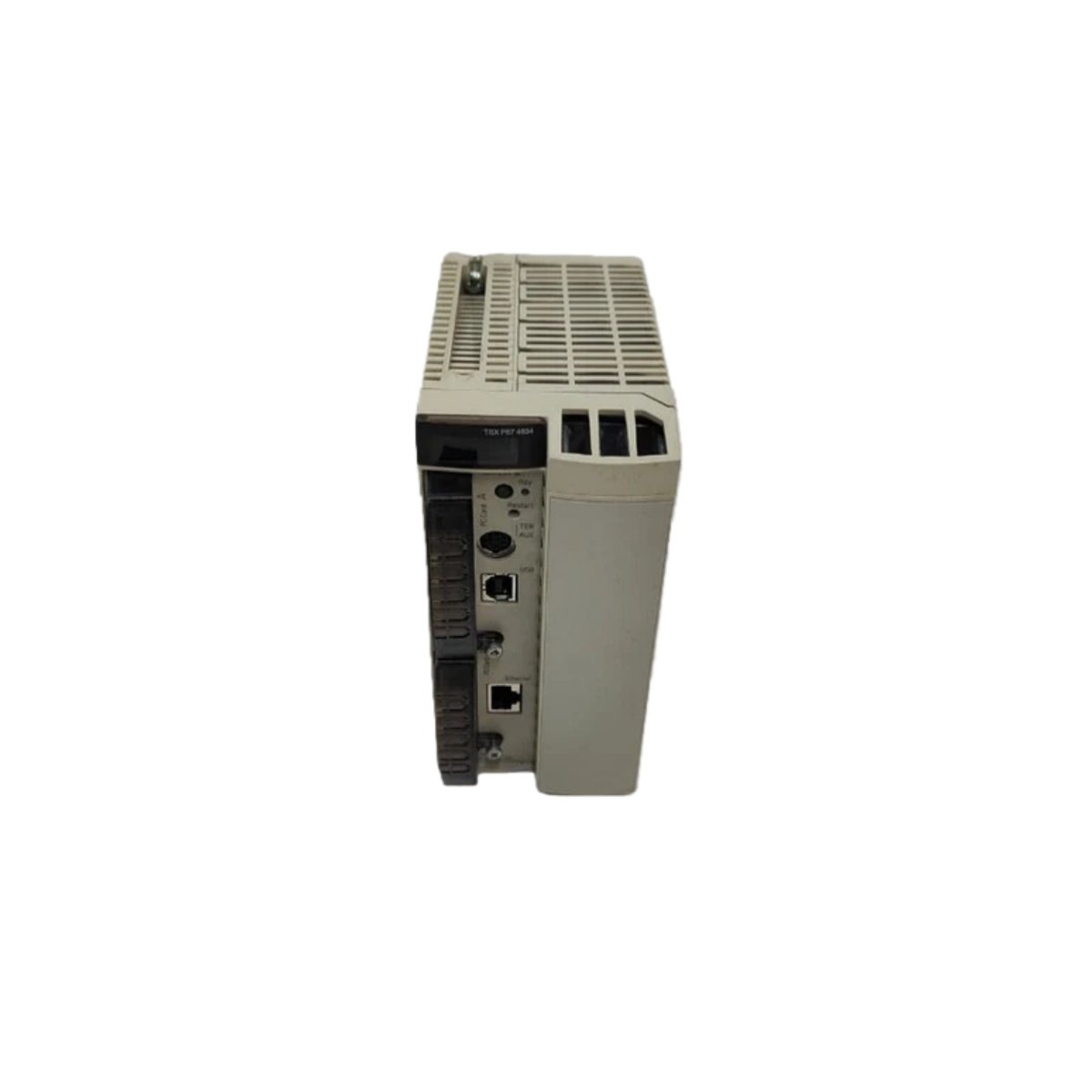

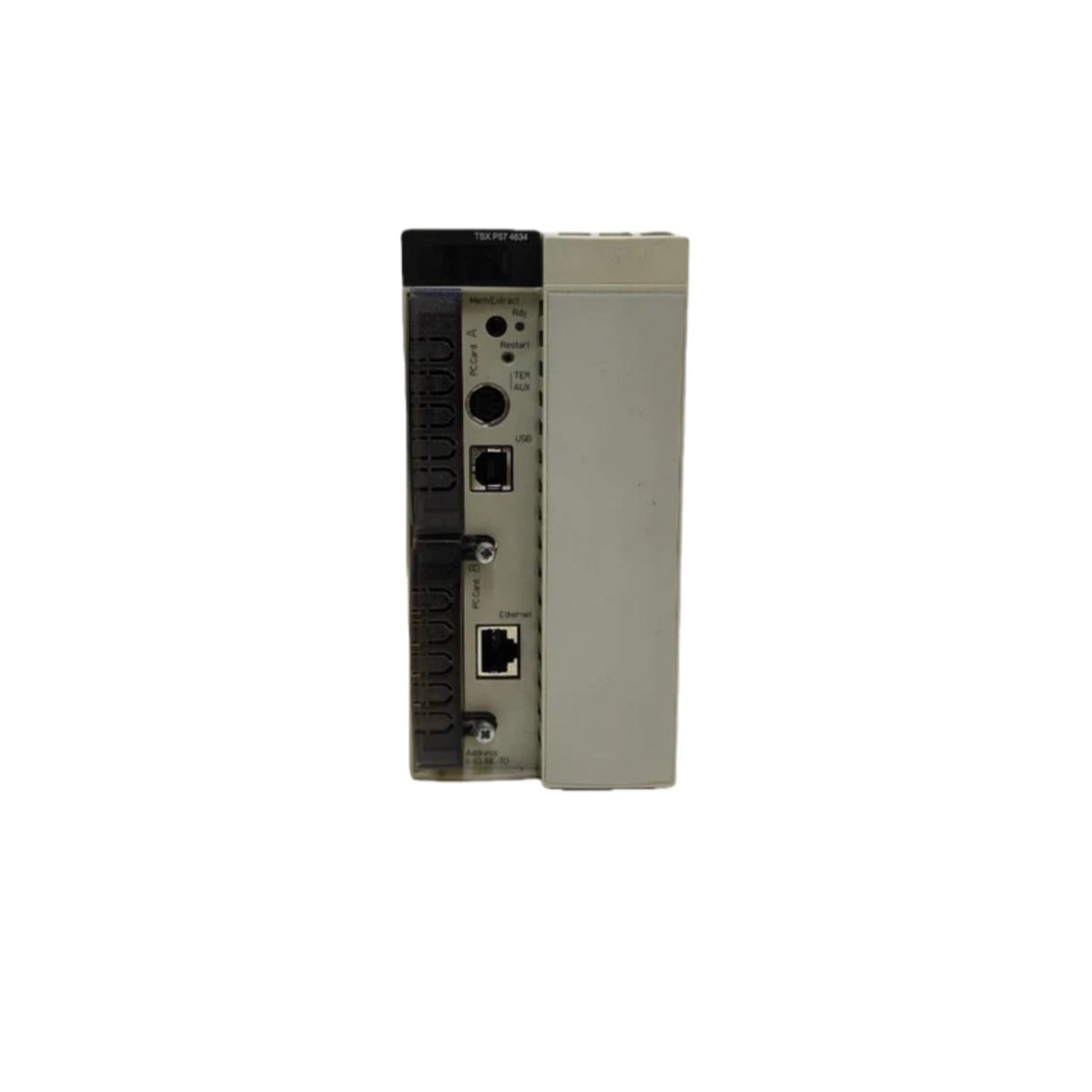

The module measures 65 mm x 130 mm x 140 mm (2.6″ x 5.1″ x 5.5″) and weighs approximately 0.80 kg. Its robust construction suits industrial control environments. The front panel provides an RJ45 Ethernet port for network connectivity. A 9-pin D-sub connector serves the RS-232 programming port. A removable terminal block handles the RS-485 fieldbus connection. The module mounts in the standard Modicon Premium rack. The rear backplane connector interfaces with the system bus and power supply.

Status Indication and Diagnostic Features

Six front-panel LEDs provide comprehensive status monitoring for maintenance personnel. A green Power LED confirms correct supply voltage. A Run LED indicates normal program execution. An Error LED alerts users to hardware or software faults. An Ethernet LED shows network connectivity and activity. Two COM LEDs display activity on the serial ports. The module also logs system events, errors, and I/O faults internally. Through Unity Pro software, engineers can access detailed diagnostic information. The web server provides browser-based status overview for remote users.

Programming and Configuration Environment

The processor uses Schneider Unity Pro software for programming and configuration. The software supports all five IEC 61131-3 programming languages. Users can program in Ladder, Structured Text, Function Block, Instruction List, or Sequential Function Chart. The TSXP574634 also supports online program modification for minimal downtime. Engineers can change code while the system continues running. The module retains program comments and symbols for easy maintenance.

Environmental Conditions and Certifications

The processor operates reliably from 0°C to +55°C ambient temperature. Storage temperatures range from -40°C to +85°C. The unit carries CE, UL, and CSA certifications for global industrial use. Install the module in a clean, dry control cabinet. The processor also complies with IEC 61131-2 and IEC 61131-3 standards. This compliance ensures interoperability with other programmable controller equipment.
