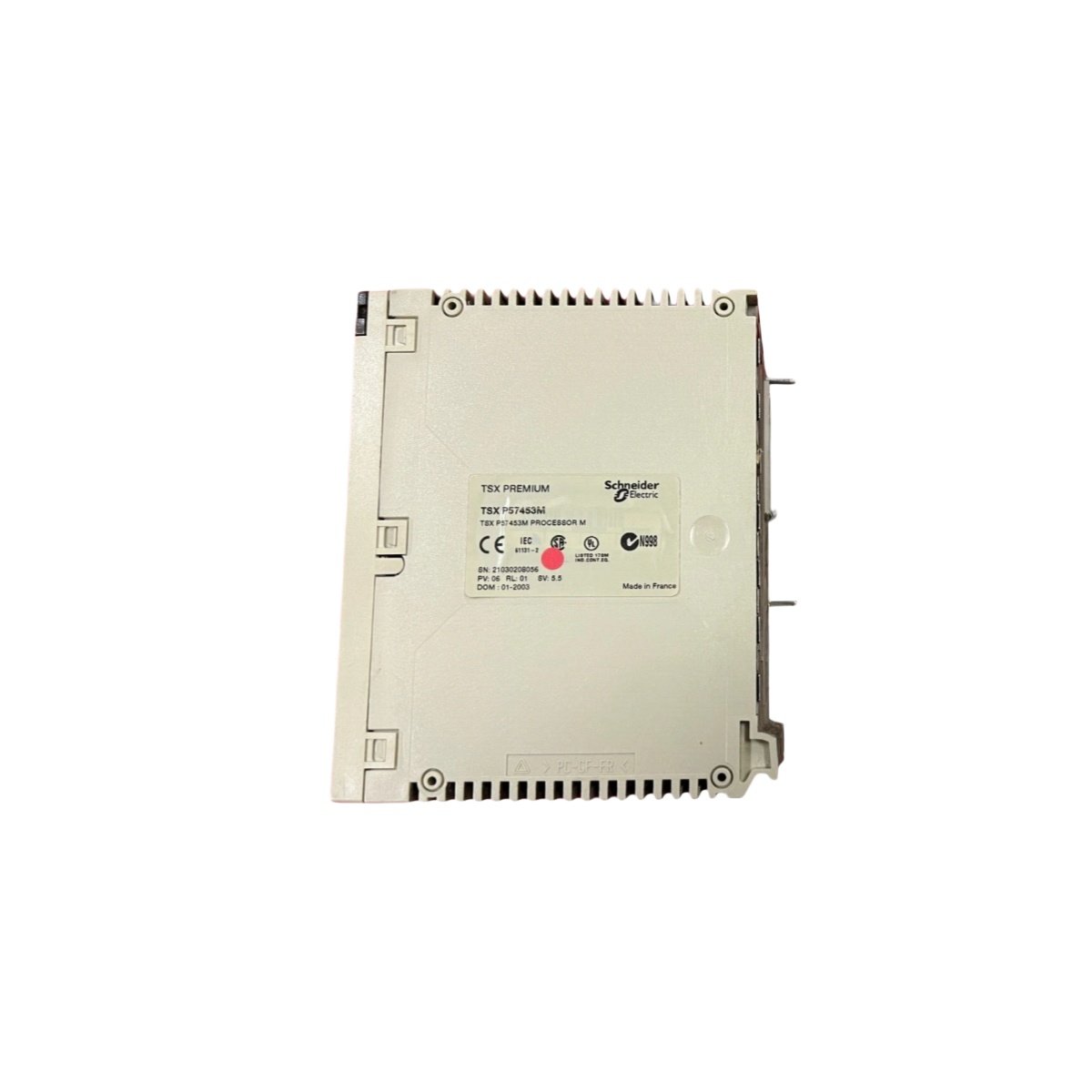

Overview of the Schneider TSXP57453M Processor

The TSXP57453M operates as a 574X3 FIP PL7 processor within Schneider’s Modicon Premium automation line. This unit executes control logic and manages data exchange across FIP fieldbus networks. Engineers deploy it in process plants that demand fast, deterministic regulation.

Key Technical Specifications of the TSXP57453M

The TSXP57453M pairs a rugged housing with integrated FIP communication ports. Below you will find the core parameters that define this processor’s performance envelope.

Physical Design and Interface Details

The TSXP57453M adopts a compact footprint that fits standard Premium racks. Its dimensions measure 150 mm in length, 105 mm in width, and 45 mm in depth. Moreover, the processor weighs roughly 500 grams, which simplifies rack installation and field replacement. Integrated FIP, RS-232, and RS-485 ports handle diverse communication tasks.

Performance and Control Capabilities

This processor runs a high-speed 32-bit CPU for deterministic logic execution. It carries 2 MB of internal RAM for program and data storage. Furthermore, a lithium backup battery preserves critical data during power interruptions. The unit supports up to 512 digital I/O points, therefore scaling across varied applications.

Power and Environmental Considerations

The TSXP57453M operates on a 24 V DC nominal power supply. Power consumption remains approximately 7 W during normal operation. The operating temperature range spans 0°C to 60°C for industrial environments. Storage temperature extends from -25°C to 70°C. Additionally, humidity tolerance reaches 95% RH without condensation.
