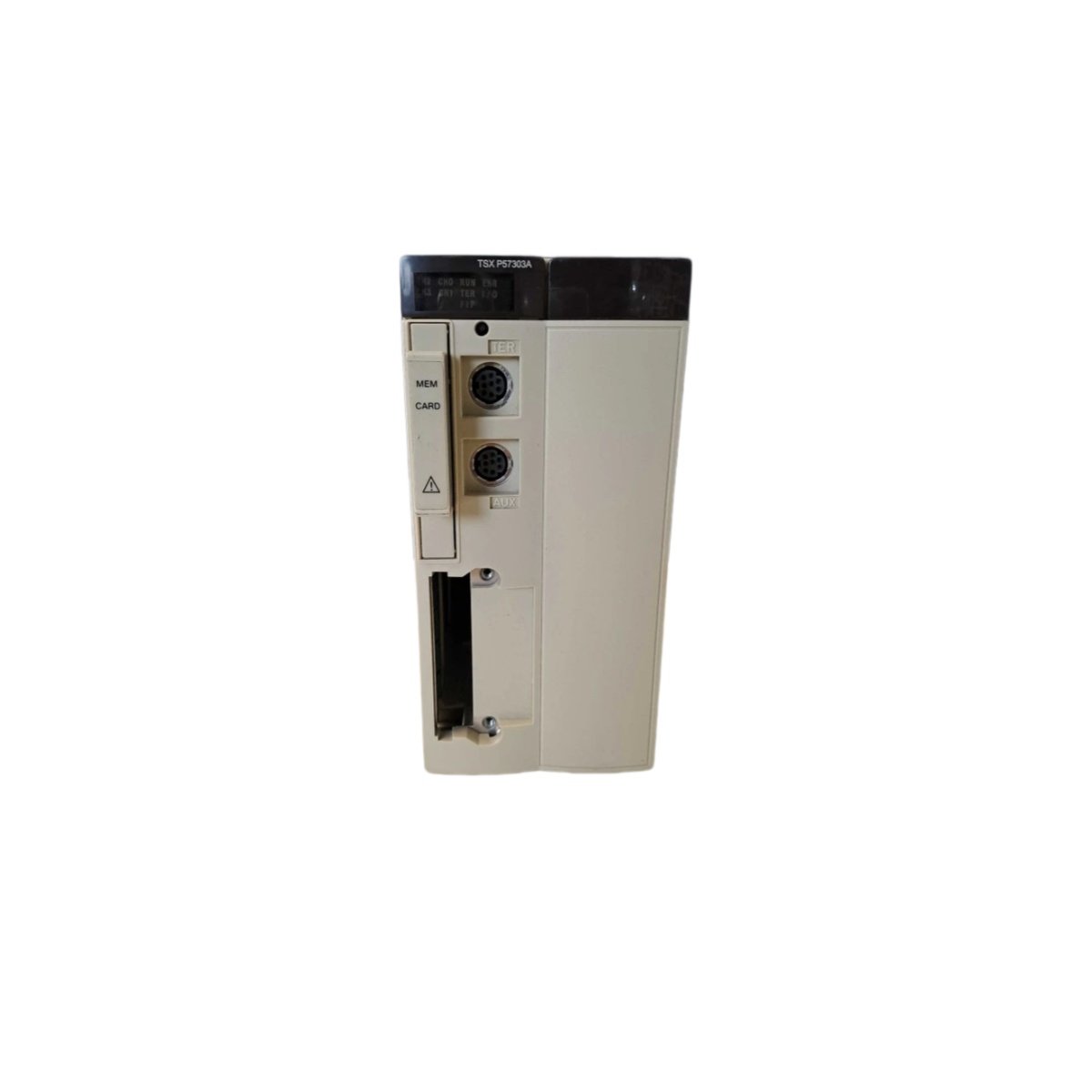

The TSXP57303AM operates as a double format PL7 processor inside Schneider’s Modicon Premium automation platform. This controller measures approximately 10.4 inches long, 1.6 inches wide, and 5.9 inches high. Moreover, it weighs roughly 1.5 pounds, which suits standard rack mounting. Engineers specify the TSXP57303AM when they need fast scan times and generous memory in process control.
Technical Specifications and Interface Details
The processor handles both discrete and analog control tasks through a unified PL7 instruction set. Specifically, it offers 512 KB of internal RAM for program and data storage. Additionally, integrated communication ports support Modbus and Uni-Telway protocols. The double format design accommodates larger applications than single-width modules allow.
| Parameter | Specification |
|---|---|
| Module Type | Double Format PL7 Processor |
| Program Memory | 512 KB RAM |
| Scan Performance | Fast execution, discrete and analog |
| Dimensions | 10.4 x 1.6 x 5.9 in |
| Weight | ~1.5 lbs |
| Interfaces | Modbus, Uni-Telway |
| Mounting | Modicon Premium rack |
| Format | Double width |
Energy Storage and Program Retention
A backup battery on the TSXP57303AM preserves program memory during power interruptions. Consequently, the processor resumes operation without reloading application code. Internal capacitors further stabilize logic voltage across brief supply dips. This buffering therefore protects critical control sequences in continuous processes.
Installation and Compatibility Notes
Because the TSXP57303AM fits directly into Modicon Premium racks, commissioning stays efficient. Technicians should verify firmware revisions before they deploy new applications. Furthermore, the processor supports expansion modules for added I/O capacity. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
