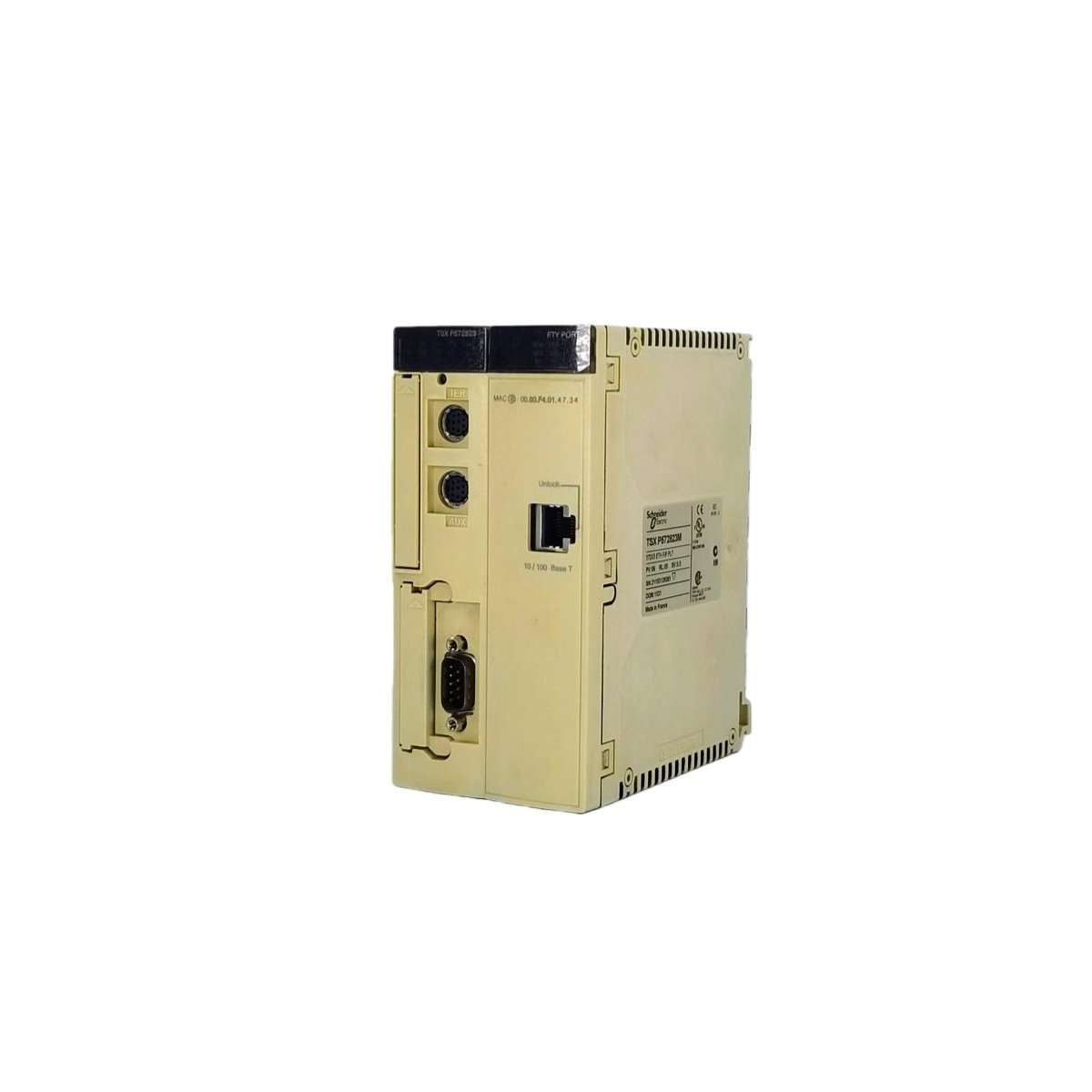

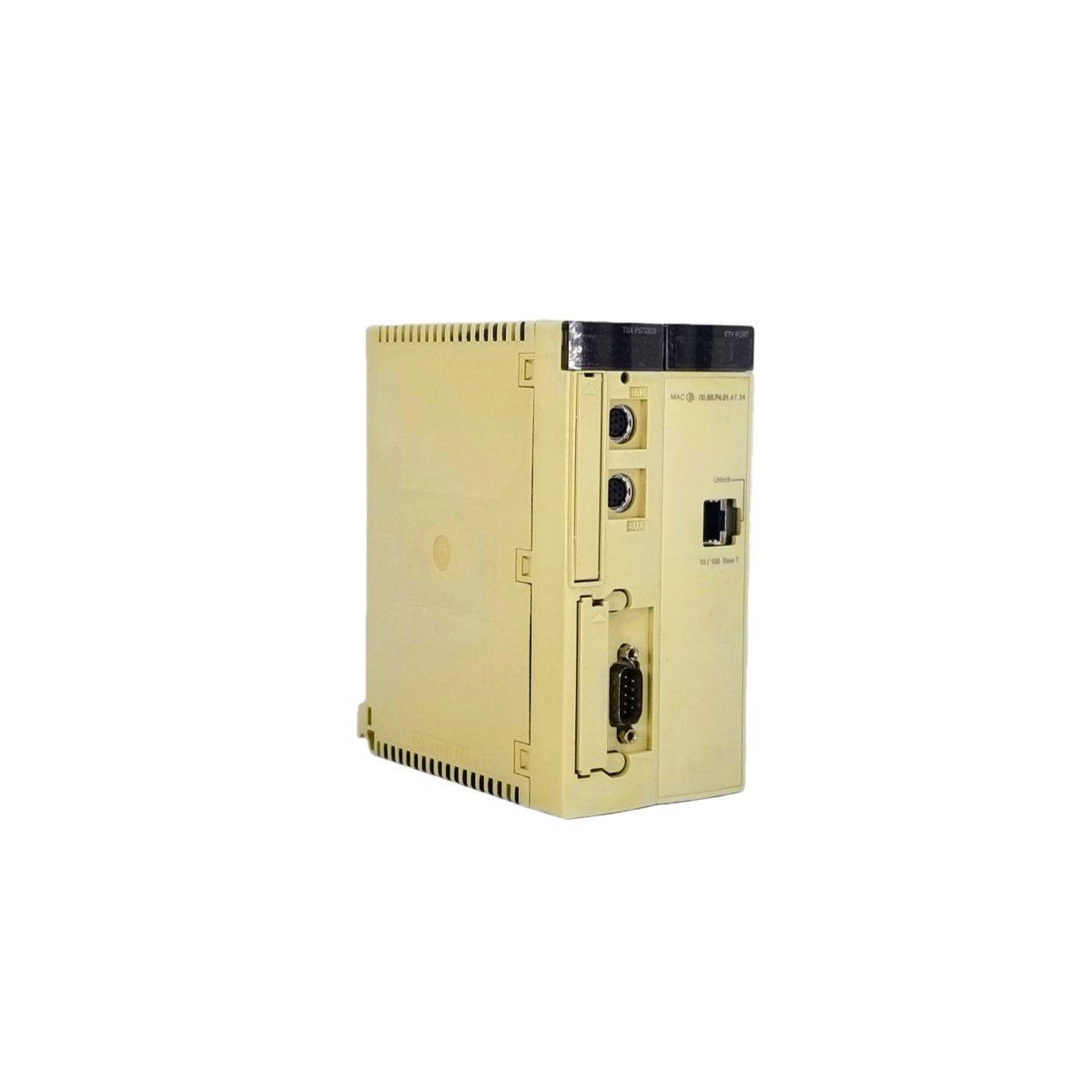

Technical Overview of the TSXP572823M Processor

The TSXP572823M is a double-format PL7 processor from the Modicon Premium automation platform. This powerful unit handles complex control tasks with exceptional speed and reliability. Its 32-bit RISC architecture delivers swift Boolean processing at just 0.19 µs per instruction. The processor supports a master task, a fast task, and up to 64 event tasks. This structure ensures efficient multitasking for demanding industrial applications. Furthermore, the processor consumes 1180 mA at 5 V DC and operates within a 0°C to 60°C temperature range.

Memory, I/O, and Communication Capabilities

Effective data management is central to the processor’s design. The unit features 64 Kwords of internal RAM and accepts PCMCIA cards for significant memory expansion. Specifically, the PCMCIA slot accommodates cards with up to 2688 Kwords for additional data storage or 160 Kwords for program memory. The TSXP572823M manages up to 1024 discrete I/O points and 80 analog I/O channels. It also provides versatile connectivity options that include:

• Ethernet TCP/IP (10/100 Mbit/s)

• Fipio manager (127 agents)

• Non-isolated serial links (19.2 kbit/s)

• Support for fieldbus, AS-Interface, and CANopen modules

Physical Specifications and Rack Configuration

The processor module follows a double-format design and weighs approximately 0.78 kg. It features a modular rack configuration that supports up to 16 racks with 4/6/8 slots or 8 racks with 12 slots each. Furthermore, the TSXP572823M includes comprehensive local signaling with LEDs for status, faults, and communication activity. The unit holds an IP20 protection rating and meets UL 508, CSA C22.2, and IEC 61131-2 standards. This ensures reliable operation within a pollution degree 2 environment.
