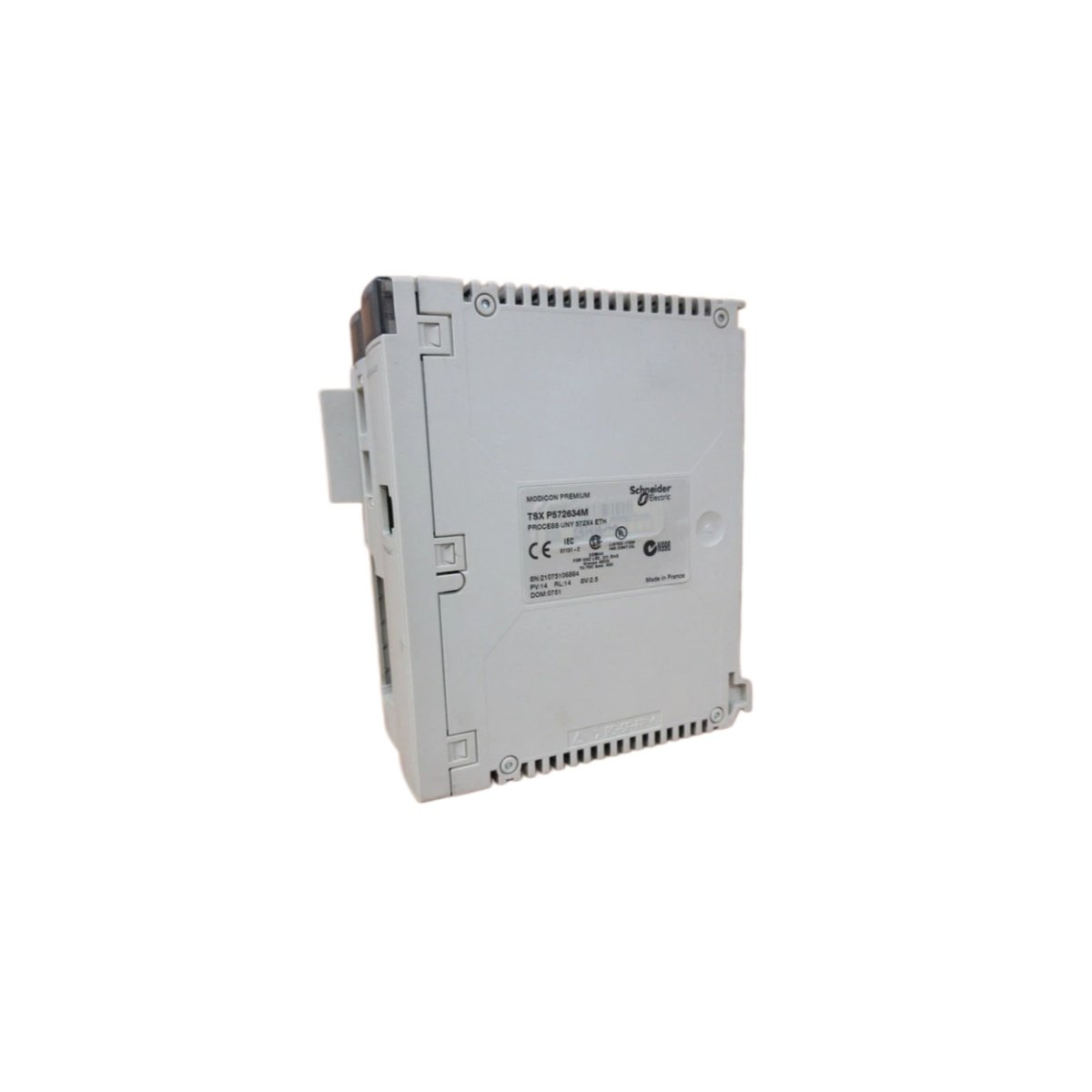

This Schneider Electric Unity processor serves as the central controller for Modicon Premium automation systems. It executes user programs and manages all I/O communications efficiently. Engineers can deploy this unit for complex machine control and process automation applications. Its high-performance architecture supports demanding real-time control requirements effectively. The processor integrates seamlessly with the Unity Pro software environment.

Physical Dimensions and Rack Mounting

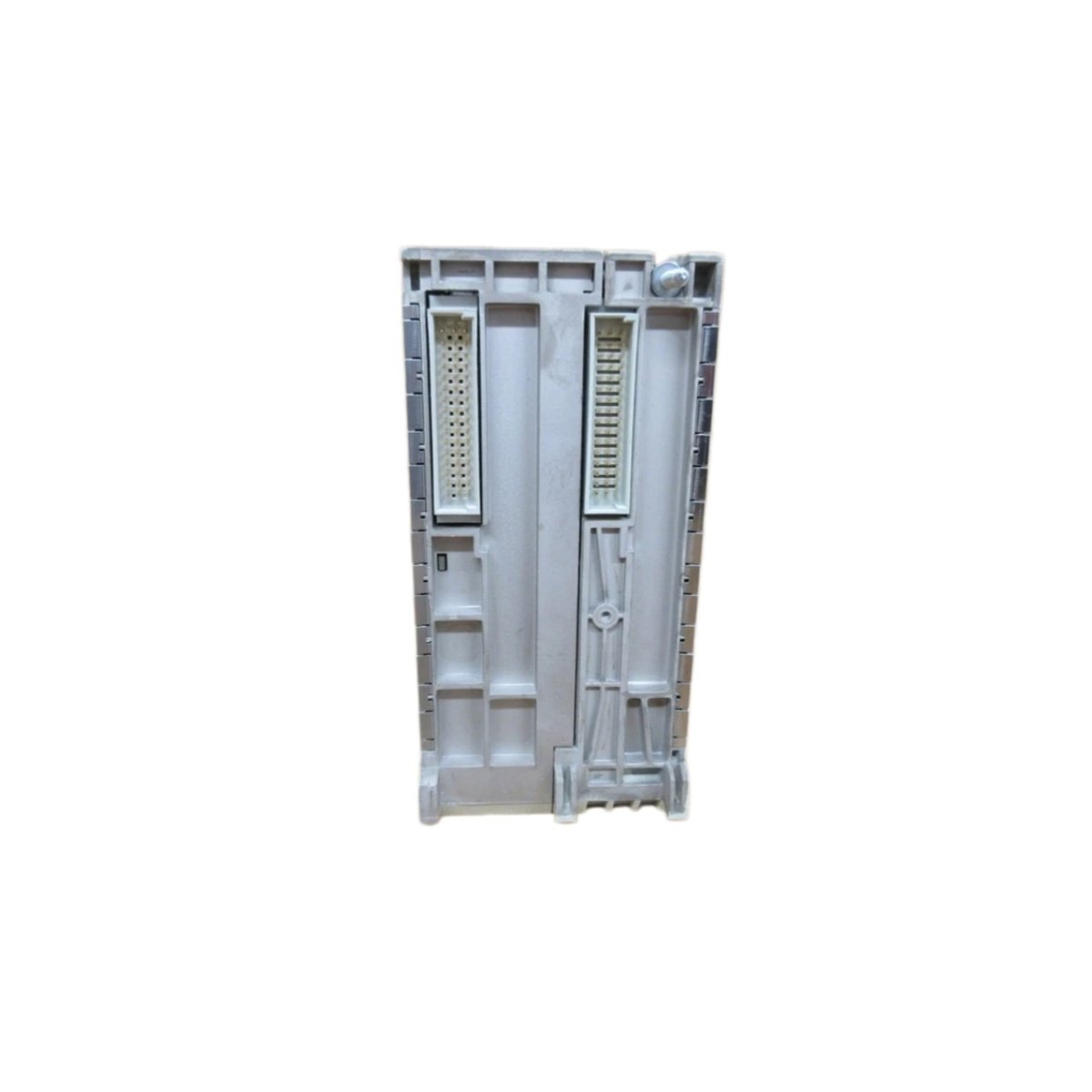

The processor measures 4.3 inches in height and 2.4 inches in width. Its sturdy housing weighs approximately 1.8 pounds for stable rack installation. A high-density connector establishes all power and backplane communication links. The unit slides into standard Premium TSX racks without special tools. This design enables straightforward replacement during system upgrades or maintenance.

Processing Performance and Memory Capacity

The unit features a 32-bit processor running at 66 MHz for fast program execution. It includes 2 MB of RAM for user program and data storage. The processor also provides 1 MB of flash memory for non-volatile application backup. This memory capacity accommodates large control programs with complex data structures. The unit supports up to 64 KB of retained data for critical variables.

Communication Ports and Network Interfaces

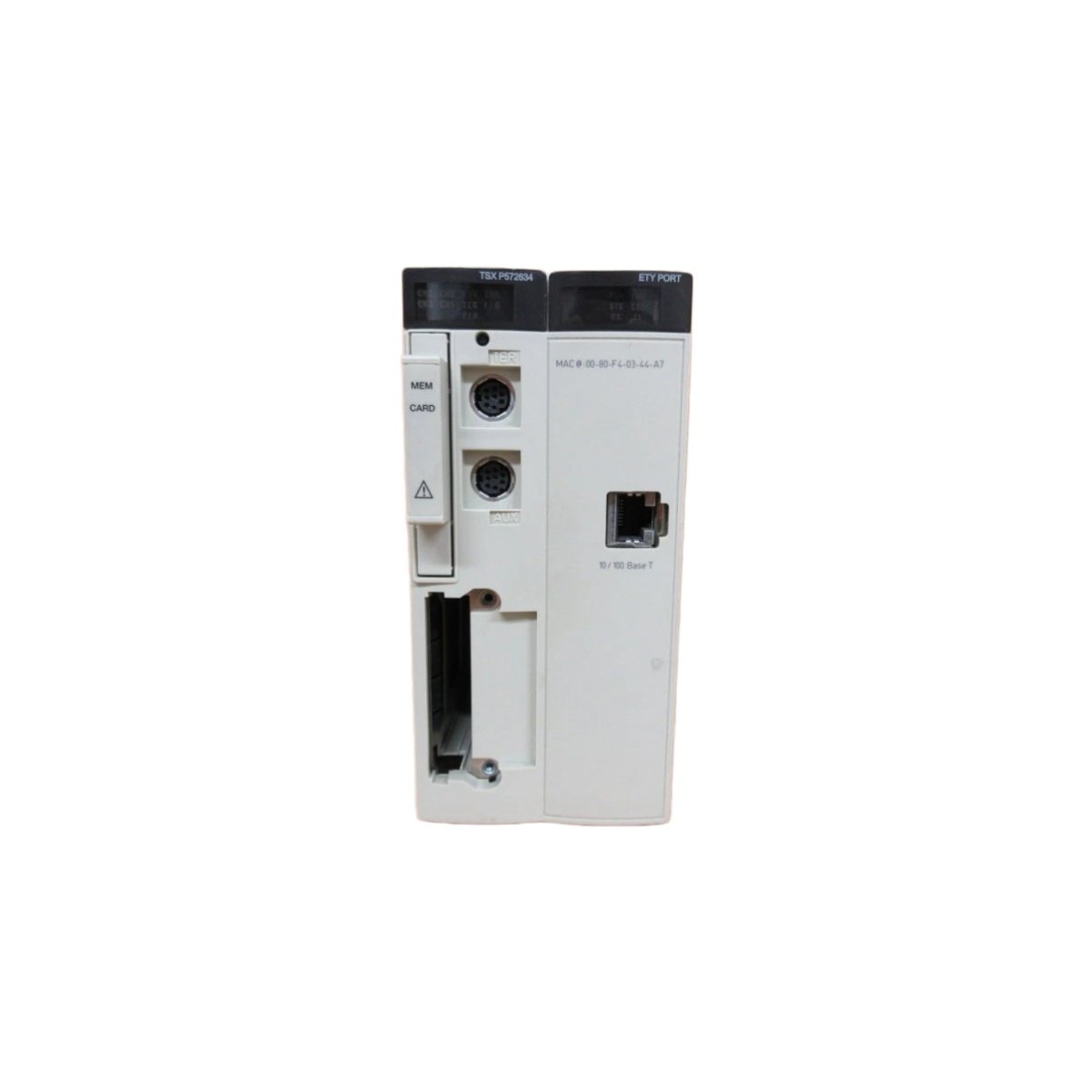

The processor includes one built-in Modbus RS-232 serial port for device connectivity. It also features one Modbus RS-485 port for multi-drop network configurations. The unit provides an Ethernet port for TCP/IP communication with plant networks. This Ethernet interface supports web server functionality and remote diagnostics. An additional USB port enables convenient program uploads and firmware updates.

Program Execution and Scan Control

The processor executes ladder logic, structured text, and function block diagrams. It achieves a typical scan time of 1 ms per 1K instructions. The unit supports up to 8 independent task priorities for time-critical routines. This multitasking capability ensures deterministic response to high-priority events. The processor handles both cyclic and periodic task scheduling effectively.

Memory Backup and Energy Storage

An internal lithium battery maintains program and data integrity during power outages. This battery provides approximately 1 year of retention without external power. The unit also includes a supercapacitor for short-term hold-up during brief interruptions. These energy storage features prevent data loss and ensure graceful restarts. The processor monitors battery status and alerts operators when replacement is needed.

Diagnostic Features and Status Indication

The front panel features 5 LED indicators for real-time system status monitoring. These LEDs display run, stop, error, battery, and communication states clearly. The processor performs continuous self-diagnostics on all internal subsystems. It logs fault events with time stamps for post-incident analysis. This diagnostic capability significantly reduces troubleshooting time and system downtime.

Environmental Ratings and Compliance Standards

The processor operates reliably from 0 to 60 degrees Celsius ambient temperature. Its conformal-coated PCB resists moisture and dust in industrial environments. The unit withstands 95% non-condensing humidity for versatile deployment. It carries CE and UL certifications for global industrial applications. These approvals facilitate equipment certification for international projects.
