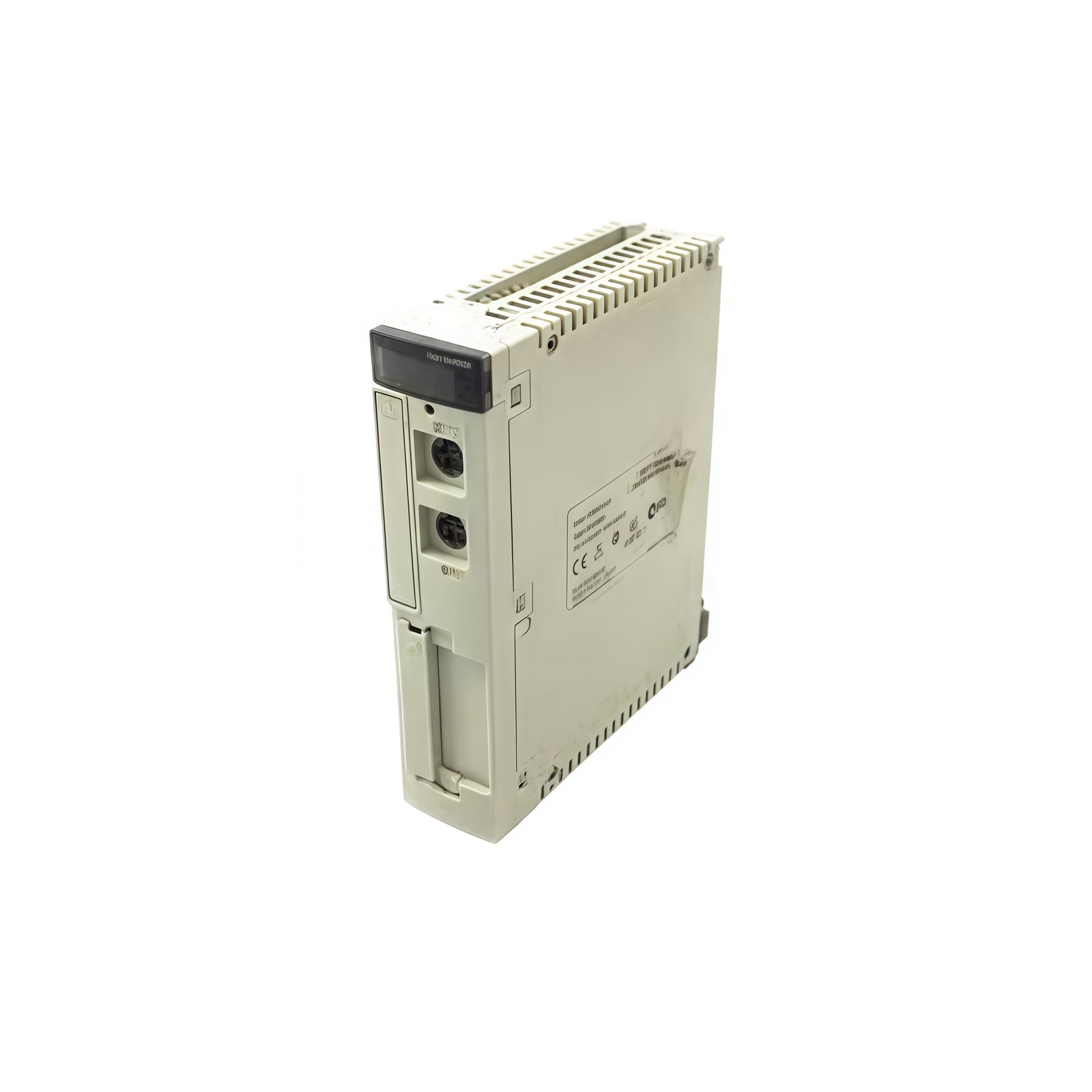

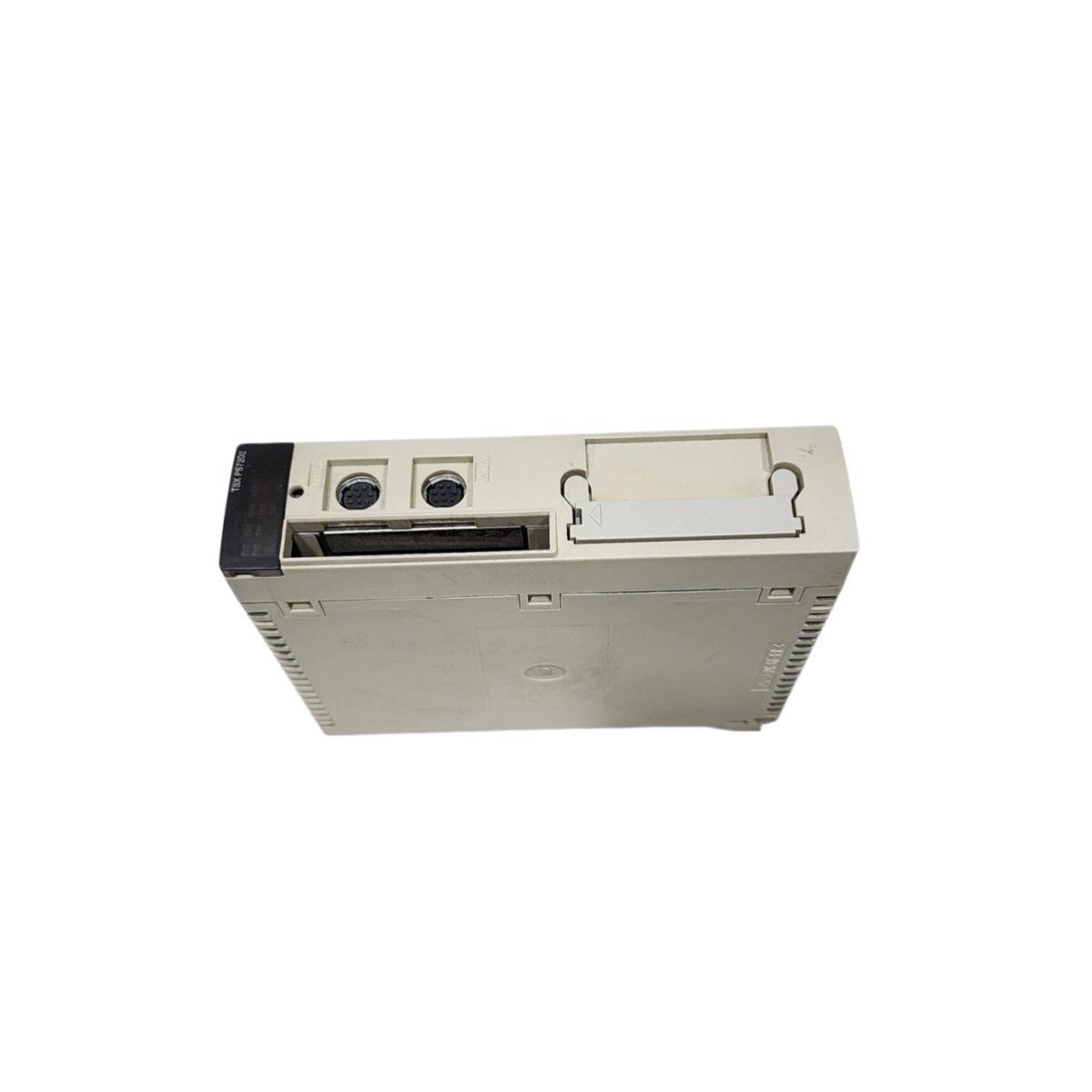

The TSXP57202M operates as a programmable logic controller module within Schneider’s Modicon Premium platform. This unit measures approximately 10.4 inches long, 1.6 inches wide, and 5.9 inches high. Moreover, it weighs roughly 1.5 pounds, which suits standard rack mounting. Engineers deploy the TSXP57202M when they need dependable process control with flexible I/O expansion.
Technical Specifications and Interface Details
The module executes PL7 application programs and therefore handles discrete and analog control tasks. Specifically, it provides 128 KB of internal RAM for program and data storage. Additionally, integrated ports support Modbus and Uni-Telway communication protocols. A backplane connector links the processor to expansion modules in the same rack.
| Parameter | Specification |
|---|---|
| Module Type | PLC Processor Module |
| Program Memory | 128 KB RAM |
| Software | PL7 programming environment |
| Dimensions | 10.4 x 1.6 x 5.9 in |
| Weight | ~1.5 lbs |
| Interfaces | Modbus, Uni-Telway |
| Mounting | Modicon Premium rack |
| Format | Double width |
Energy Storage and Program Retention
A backup battery on the TSXP57202M preserves application code during power interruptions. Consequently, the controller resumes operation without reloading programs from external media. Internal capacitors further stabilize logic voltage across brief supply dips. This buffering therefore protects critical control sequences in continuous production environments.
Installation and Compatibility Notes
Because the TSXP57202M fits directly into Modicon Premium racks, commissioning stays efficient. Technicians should confirm firmware revisions before they deploy updated applications. Furthermore, the processor accepts expansion modules for added I/O capacity. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
