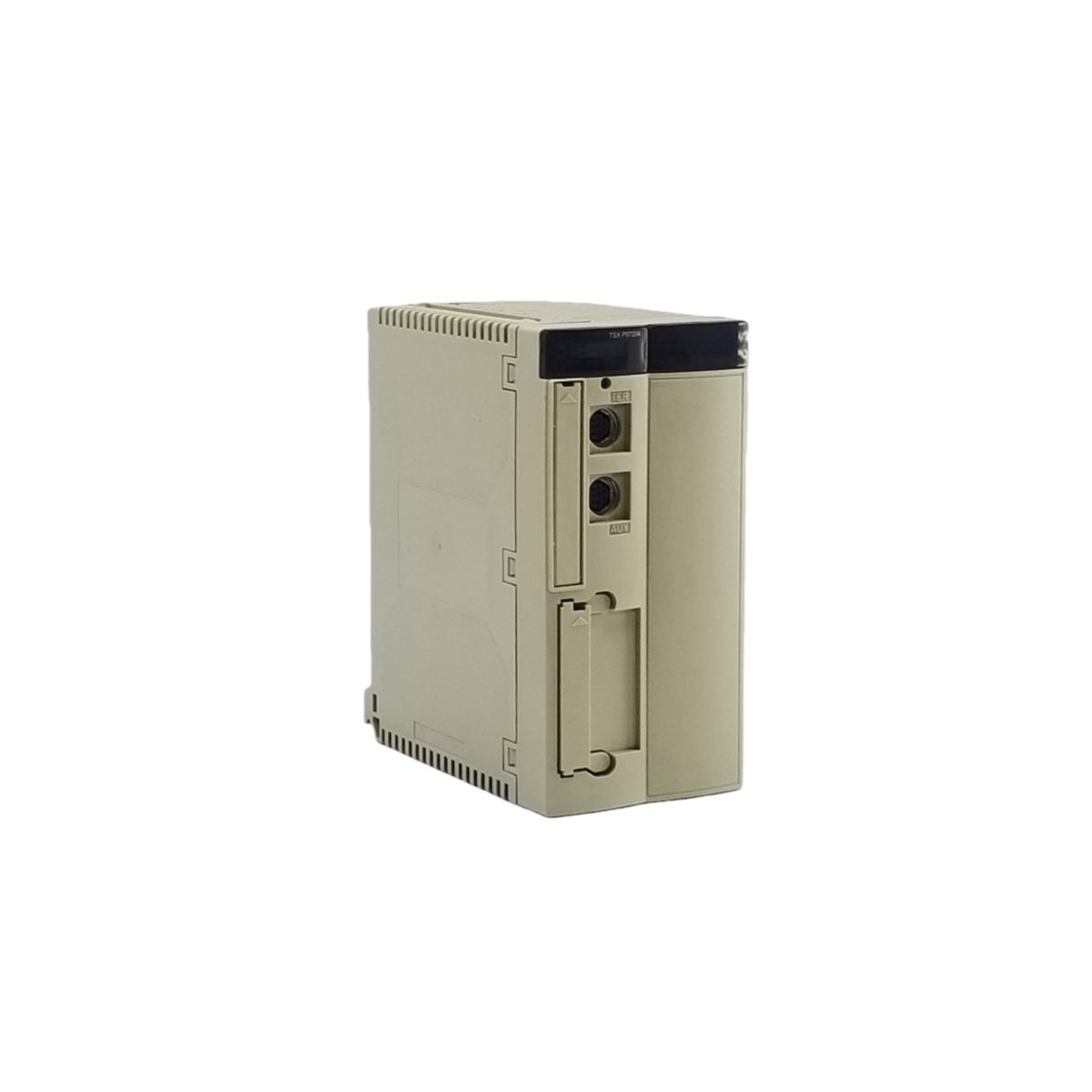

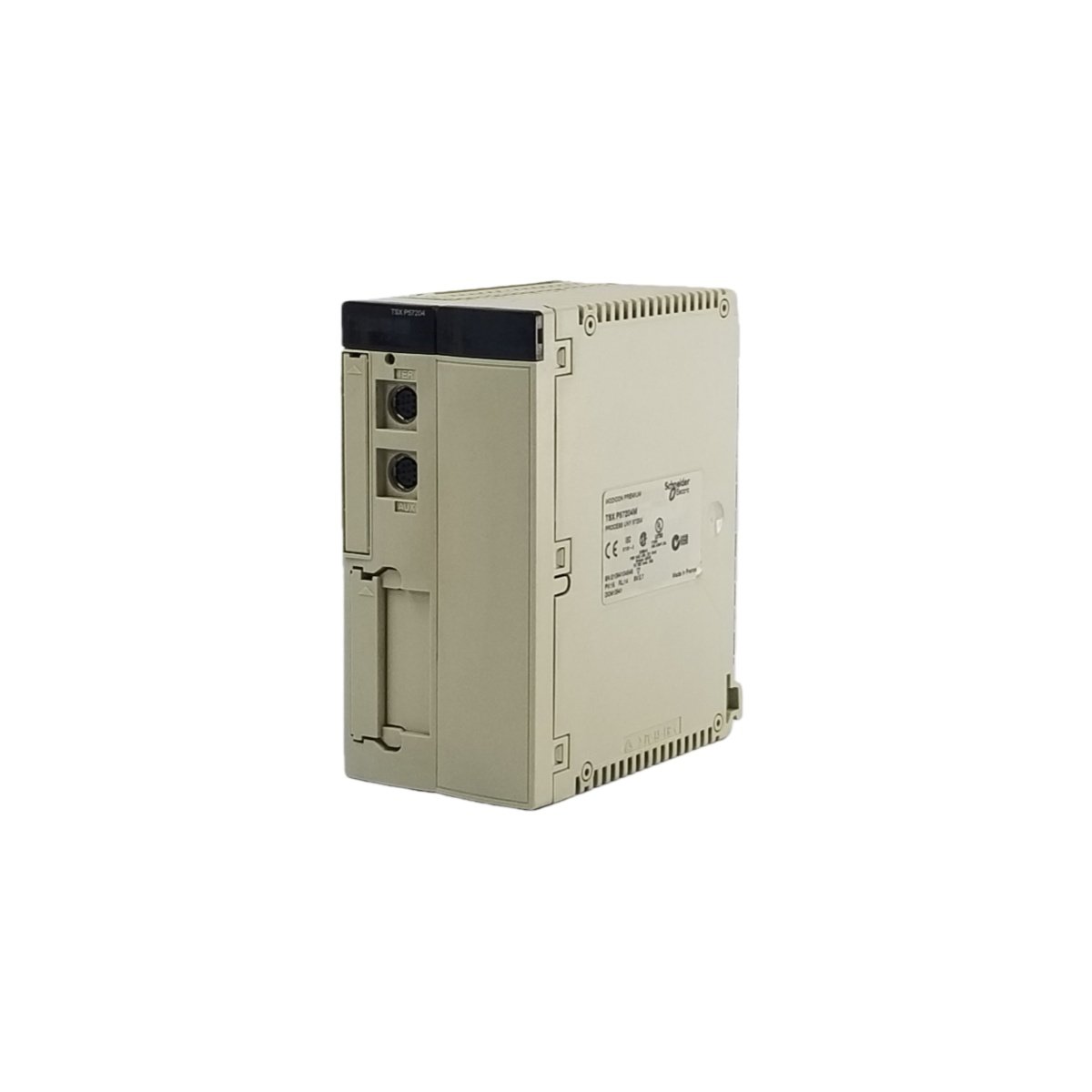

This robust programmable logic controller executes user logic for Modicon Premium systems. It manages real-time control tasks and communication for industrial automation. Therefore, this component suits demanding applications in manufacturing and process industries.

Physical Dimensions and Weight Specifications

The Schneider TSXP570244M occupies one standard slot in the Premium rack. Its housing measures 220 mm in depth for backplane connectivity. The module weighs approximately 0.68 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Schneider TSXP570244M provides one Ethernet port for plant network connectivity. A second RS-232 port supports local programming and diagnostics. The front panel carries a USB port for quick program uploads. Hence, users can access this controller with standard cables.

Component Count and Onboard Memory

This robust PLC contains one main board with a 32-bit RISC processor. The board holds 256 KB of battery-backed RAM for user programs. You will also find 1 MB of flash memory for non-volatile storage. An onboard real-time clock maintains schedule data during power cycles.

Energy Storage and Power Consumption

The Schneider TSXP570244M draws 380 mA from the 5V backplane supply. A lithium battery retains RAM data for 1,000 days without external power. This battery maintains user programs during prolonged facility shutdowns. Therefore, the controller eliminates the need for frequent reprogramming after outages.

Processing Speed and I/O Capacity

The processor executes 0.15 microseconds per basic logic instruction. It handles up to 2048 digital I/O points within a single scan. Users can store up to 4096 function blocks in the flash memory. This capacity supports complex automation for large production lines.
