Technical Overview

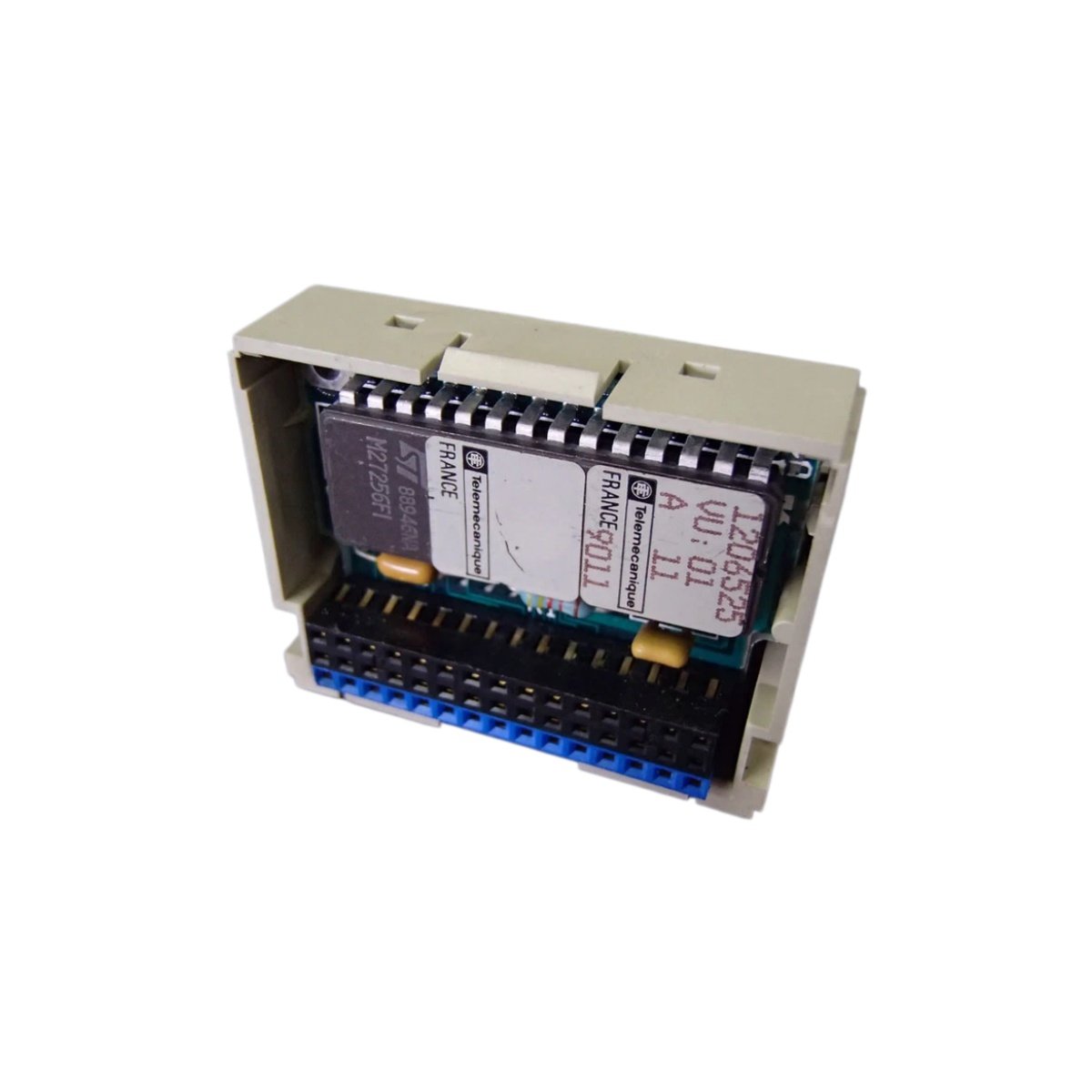

The Schneider TSXP1720FA serves as a software memory cartridge within the Modicon TSX 17 PLC series. This module provides 4 MB of memory capacity for storing program data and configuration files. We can classify this unit as an auxiliary accessory module because it primarily expands system memory rather than handling direct I/O functions. Consequently, the Schneider TSXP1720FA enhances the processing capabilities of compatible controllers, making it ideal for data-intensive applications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric (Telemecanique) |
| Product Type | Software Memory / PL7-2 Micro-Software Cartridge |
| Memory Size | 4 MB |
| Power Supply | 24 VDC |
| Current Draw | 100 mA |
| Power Dissipation | < 0.25 W |
| Mounting Type | Side-mounted / DIN rail mount |
| Communication | Internal system bus |
| Dimensions (H x W x D) | 100 x 120 x 22 mm |
| Weight | 0.03 kg (0.06 lbs) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Shock Resistance | 15 G |
| Data Retention | 10 years at 25°C |
Installation and Integration
This module uses non-volatile EEPROM/flash technology to retain critical data reliably even during power loss. The Schneider TSXP1720FA connects via the internal bus system, enabling smooth data exchange with the processor. Furthermore, its side-mounted form factor supports easy installation in space-constrained control cabinets.
Diagnostics and Environmental Resilience
Embedded LED indicators facilitate quick system diagnostics, allowing operators to verify module status at a glance. Additionally, the module operates reliably across a wide temperature range and tolerates high humidity conditions, making it suitable for diverse industrial environments. With its compact dimensions and low power consumption under 0.25W, this module offers an energy-efficient solution for memory expansion needs.
Details
| Weight | 0.03 kg |
|---|---|
| Dimensions | 100 × 120 × 22 mm |
