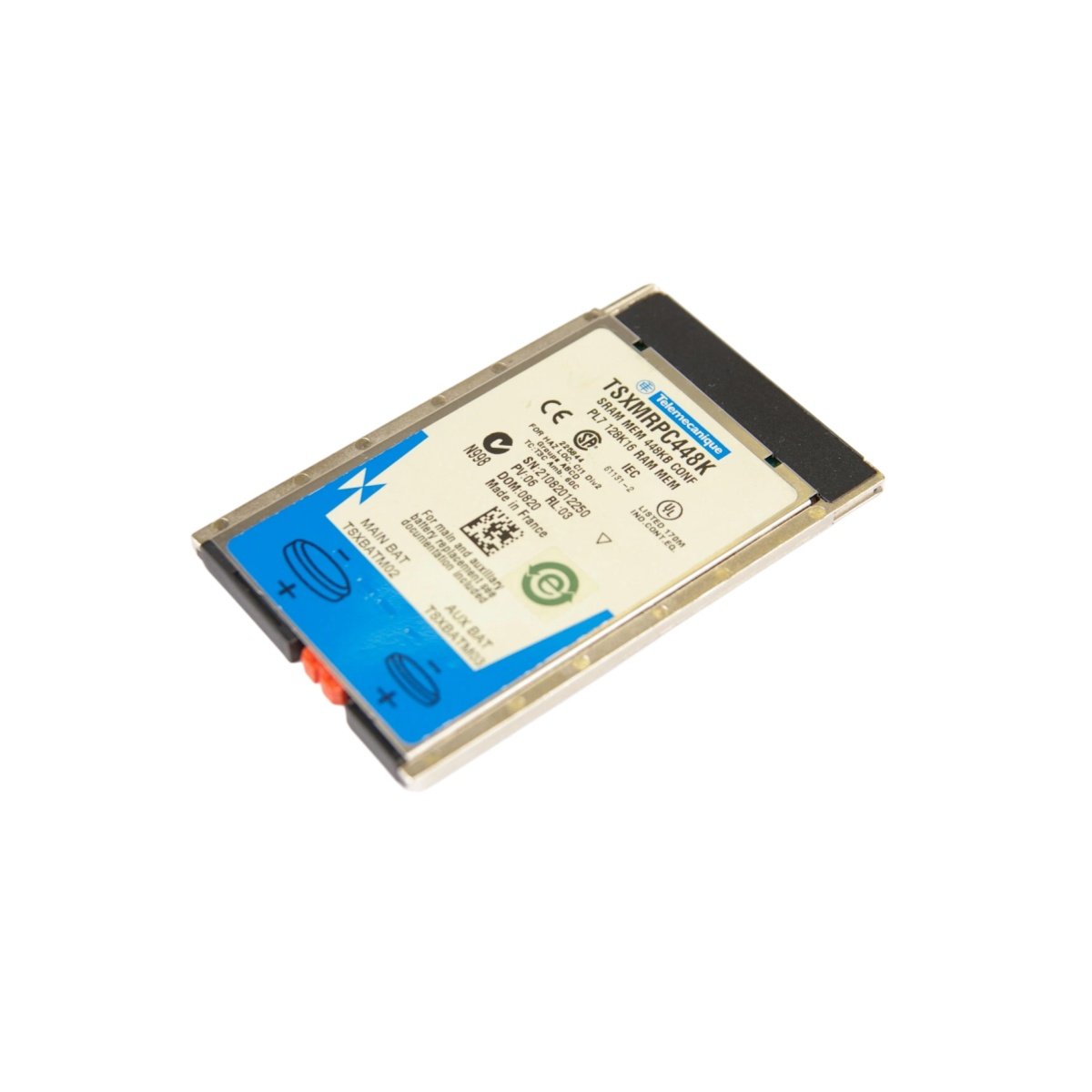

The Schneider TSXMRPC448K configurable SRAM memory extension expands storage capacity within Schneider PLC platforms. Engineers install this card to hold larger programs and retain critical process data. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

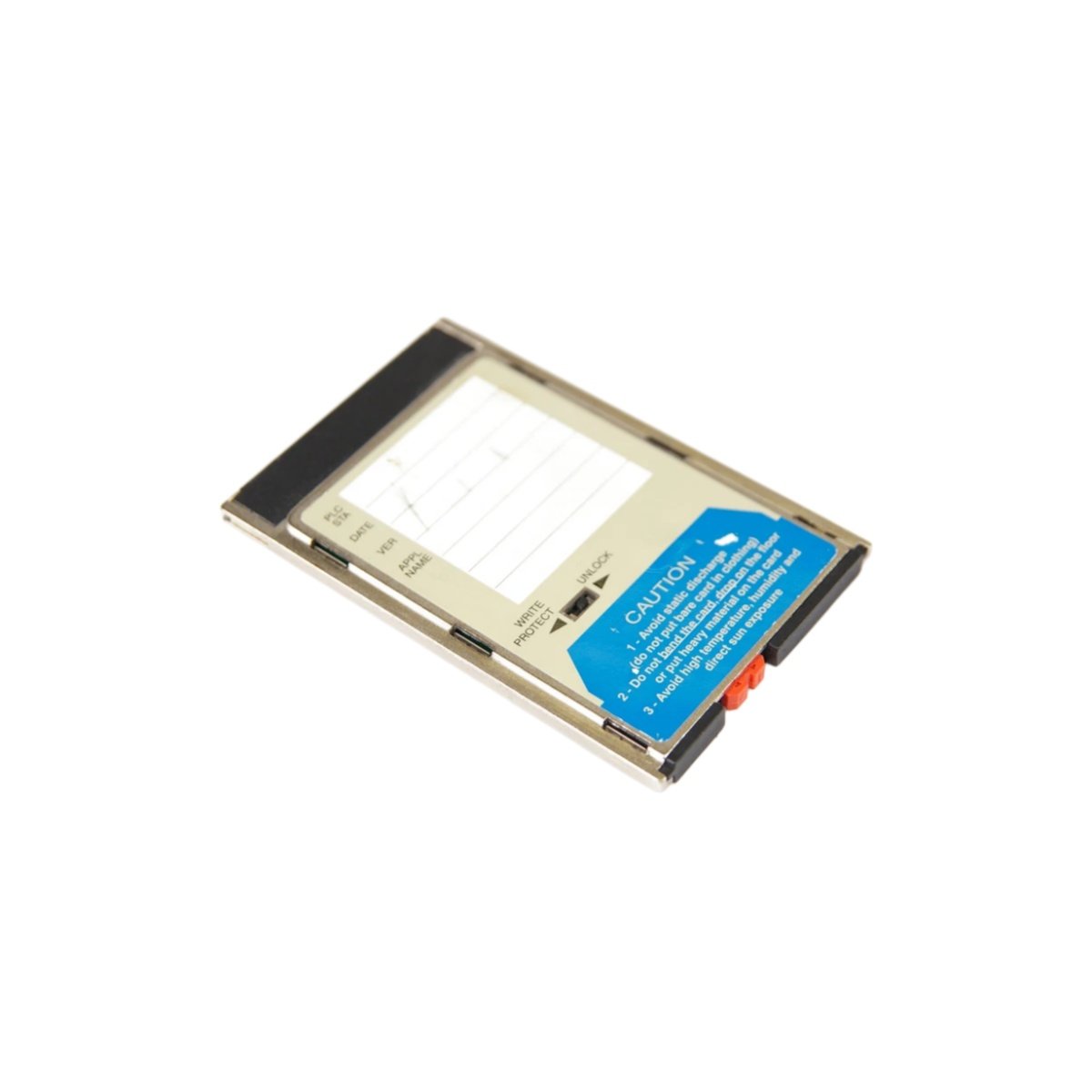

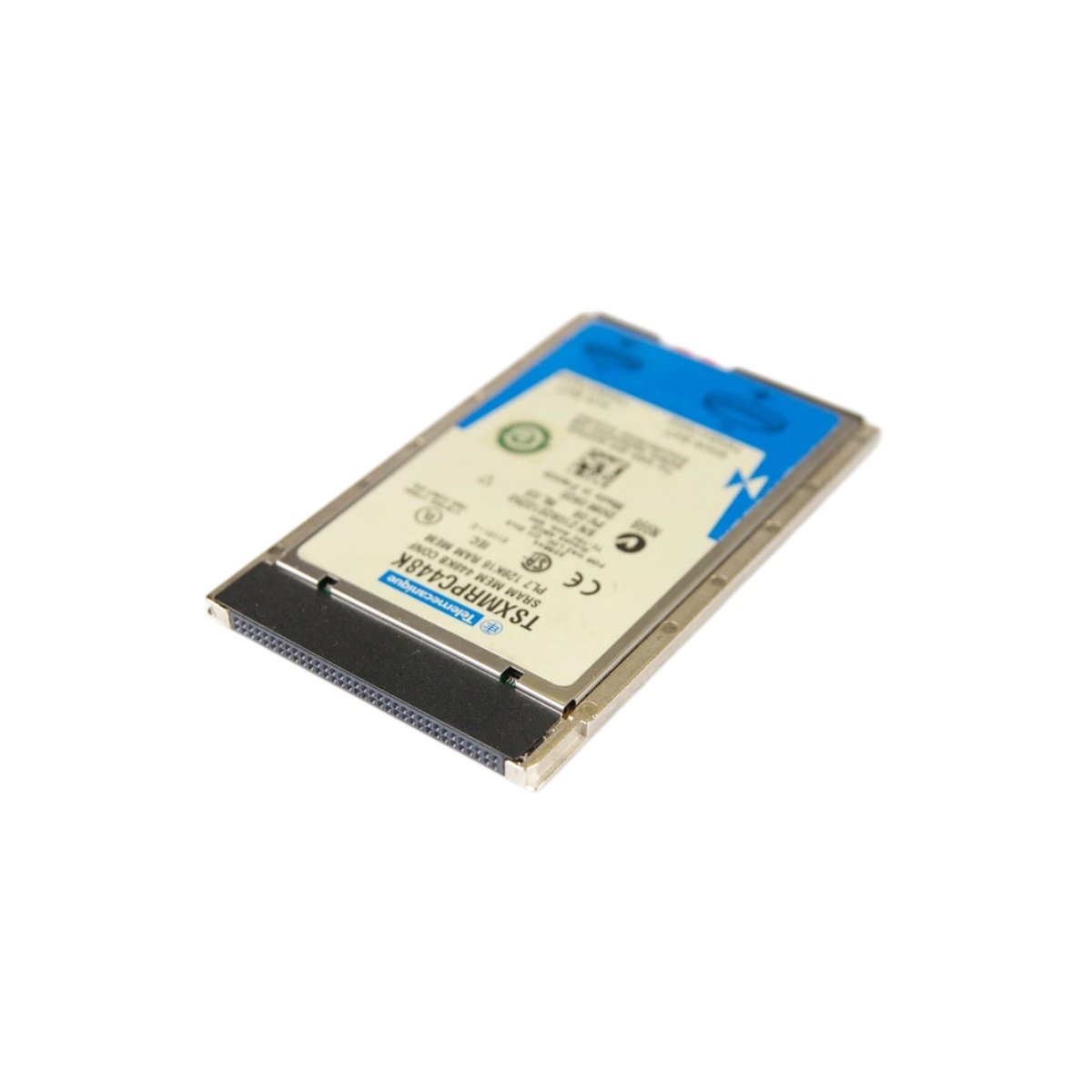

This extension card fits a dedicated memory slot on compatible Schneider processor modules. It measures roughly 90 mm long, 60 mm wide, and 15 mm thick, while it weighs about 0.1 kg. Moreover, the card carries a standard pin connector and a battery holder.

Functional Capabilities and System Integration

The card extends program memory while it retains data through battery backup. Meanwhile, the pin connector links it directly to the host processor board. Battery power preserves content, therefore data survives complete power loss.

Additionally, the design allows memory expansion without replacing the main processor. As a result, technicians upgrade capacity at low cost and minimal downtime. Clear labeling helps maintenance crews confirm memory size and battery status quickly. The compact card also fits existing slots for straightforward field installation.

Installation and Maintenance Guidelines

Technicians should ground themselves before they handle the TSXMRPC448K card. Afterward, aligning the pin connector carefully prevents bent pins and contact faults. Replacing the backup battery periodically protects stored program data. Finally, consult Schneider documentation for compatible processors and memory configuration limits.
