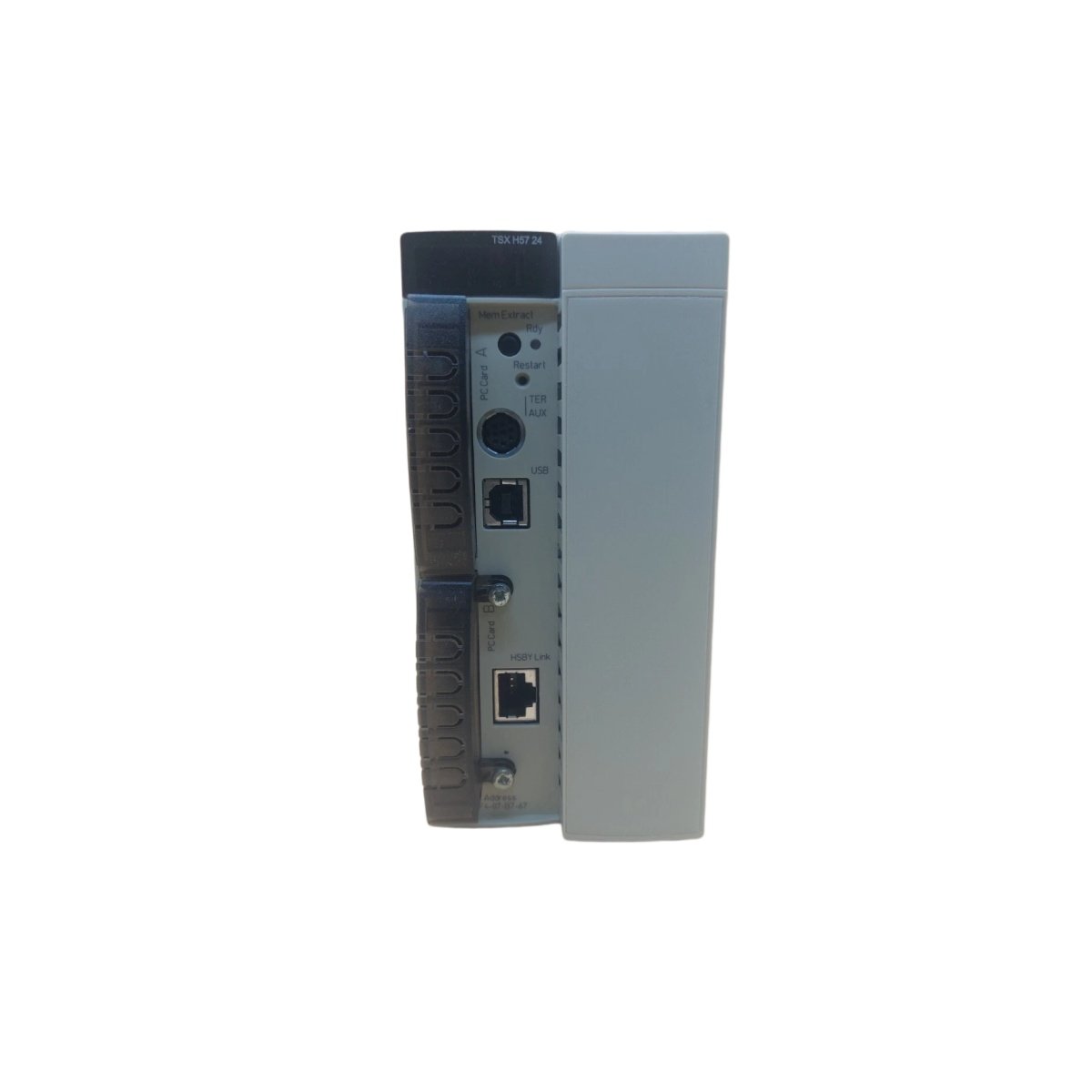

The TSXH5724M delivers redundant control inside Schneider’s Modicon Premium automation platform as a Unity hot standby processor. This controller measures roughly 10.4 inches long, 1.6 inches wide, and 5.9 inches high. Moreover, it weighs approximately 1.5 pounds, which suits standard rack installation. Engineers deploy the TSXH5724M when downtime cannot interrupt critical production processes.
Technical Specifications and Interface Details
The processor runs Unity Pro software and therefore supports IEC 61131-3 programming languages. Specifically, it provides 4 MB of internal RAM for program and data handling. Additionally, integrated ports deliver Modbus, Ethernet, and USB connectivity. A dedicated link synchronizes the primary and standby controllers continuously.
| Parameter | Specification |
|---|---|
| Module Type | Unity Hot Standby Processor |
| Program Memory | 4 MB RAM |
| Software | Unity Pro, IEC 61131-3 |
| Dimensions | 10.4 x 1.6 x 5.9 in |
| Weight | ~1.5 lbs |
| Interfaces | Modbus, Ethernet, USB |
| Redundancy | Primary and standby synchronization |
| Mounting | Modicon Premium rack |
Energy Storage and Failover Stability
A backup battery on the TSXH5724M preserves application code during power interruptions. Consequently, the standby controller assumes control without losing program state. Internal capacitors further stabilize logic voltage across brief supply dips. This buffering therefore supports seamless switchover in continuous production environments.
Installation and Compatibility Notes
Because the TSXH5724M fits directly into Modicon Premium racks, commissioning stays efficient. Technicians should confirm firmware versions before they configure redundant pairs. Furthermore, the processor accepts expansion modules for added I/O capacity. Always store spare units in anti-static packaging to protect sensitive circuitry.
