Key Technical Specifications

The TSXETZ510 module supports standard Ethernet TCP/IP networking for industrial automation systems. This unit measures 130 millimeters in height, 85 millimeters in width, and 65 millimeters in depth. The module weighs approximately 0.45 kilograms, making it suitable for compact control cabinets. It features one RJ45 Ethernet port with 10/100 Mbps auto-negotiation capability. The module includes integrated dual-port switching functionality for daisy-chain topologies. It stores configuration data using 8 megabytes of flash memory. The module supports up to 64 simultaneous Modbus TCP/IP connections. It also provides 16 kilobytes of internal buffer memory for data exchange.

Installation and Physical Characteristics

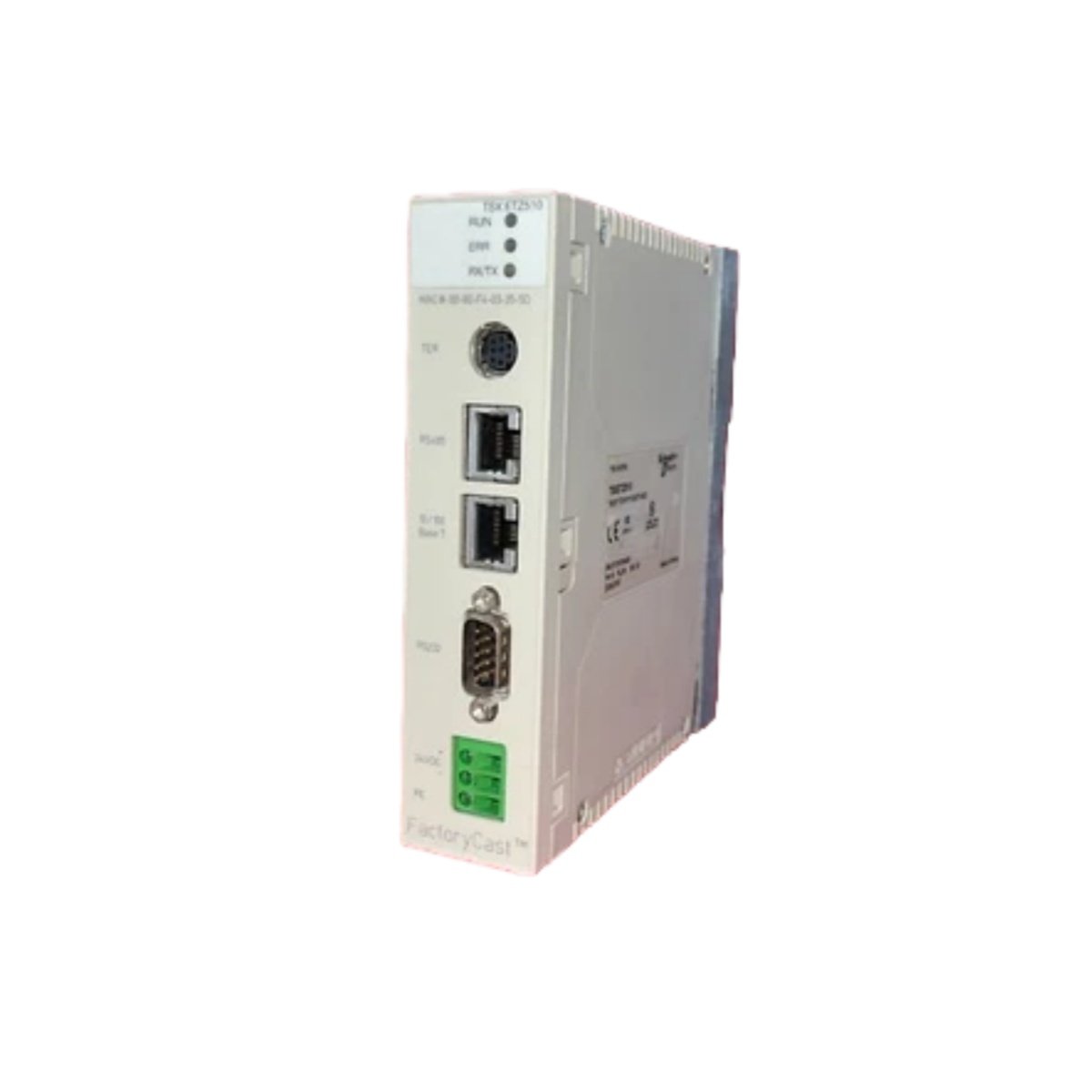

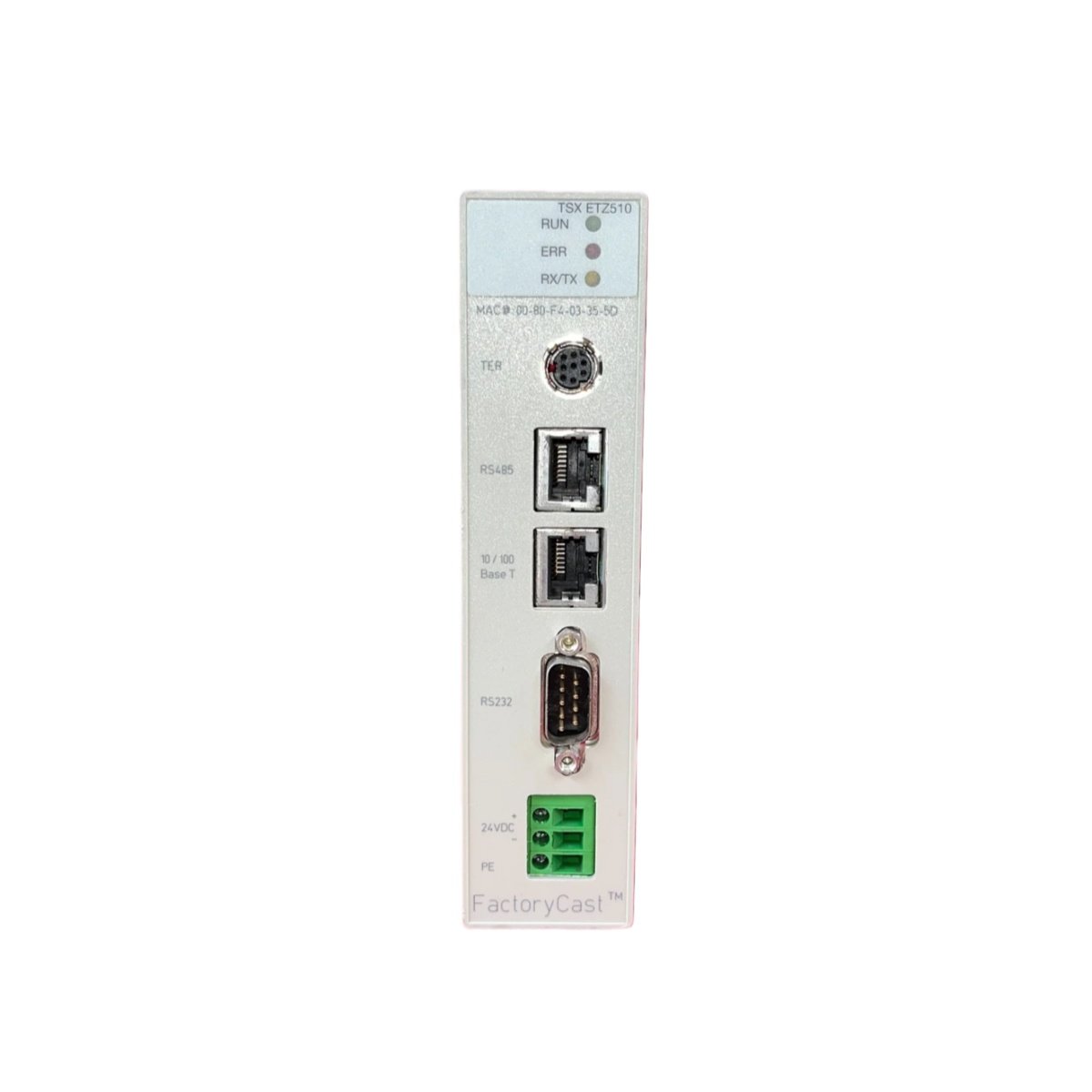

This module installs directly into a standard rack or backplane assembly. Its compact dimensions allow flexible placement within existing system architectures. The front panel includes LED indicators for network activity, module status, and communication errors. These diagnostic lights simplify troubleshooting and reduce maintenance time. The module’s lightweight construction minimizes mechanical strain on the backplane connector.

Connectivity and Data Handling

The TSXETZ510 supports both unicast and multicast message filtering for optimized network traffic. It handles cyclic data exchanges with deterministic response times below 10 milliseconds. The module maintains seamless interoperability with third-party Ethernet devices using standard TCP and UDP protocols. It manages up to 128 input words and 128 output words per scan cycle. The onboard processor offloads network management tasks from the primary controller. This design ensures efficient bandwidth utilization and stable communication under heavy loads.

Power and Environmental Specifications

The module draws a maximum current of 350 milliamperes from a 5-volt DC supply. It operates reliably within a temperature range of 0 to 60 degrees Celsius. The unit withstands relative humidity levels from 10% to 95% without condensation. Its robust construction meets IEC 61131-2 standards for industrial electromagnetic compatibility. The module includes built-in surge protection for the Ethernet port. This safeguards the module against voltage spikes and transient disturbances.

Configuration and Integration

You can configure the TSXETZ510 using web-based tools or the manufacturer’s programming software. It stores IP settings, subnet masks, and gateway addresses in non-volatile memory. The module supports automatic MDI/MDIX crossover detection for simplified cabling. It also integrates with supervisory control and data acquisition systems through standard OPC interfaces. The module offers firmware upgrade capabilities via Ethernet or direct serial connection. This keeps the device current with evolving network security protocols.
