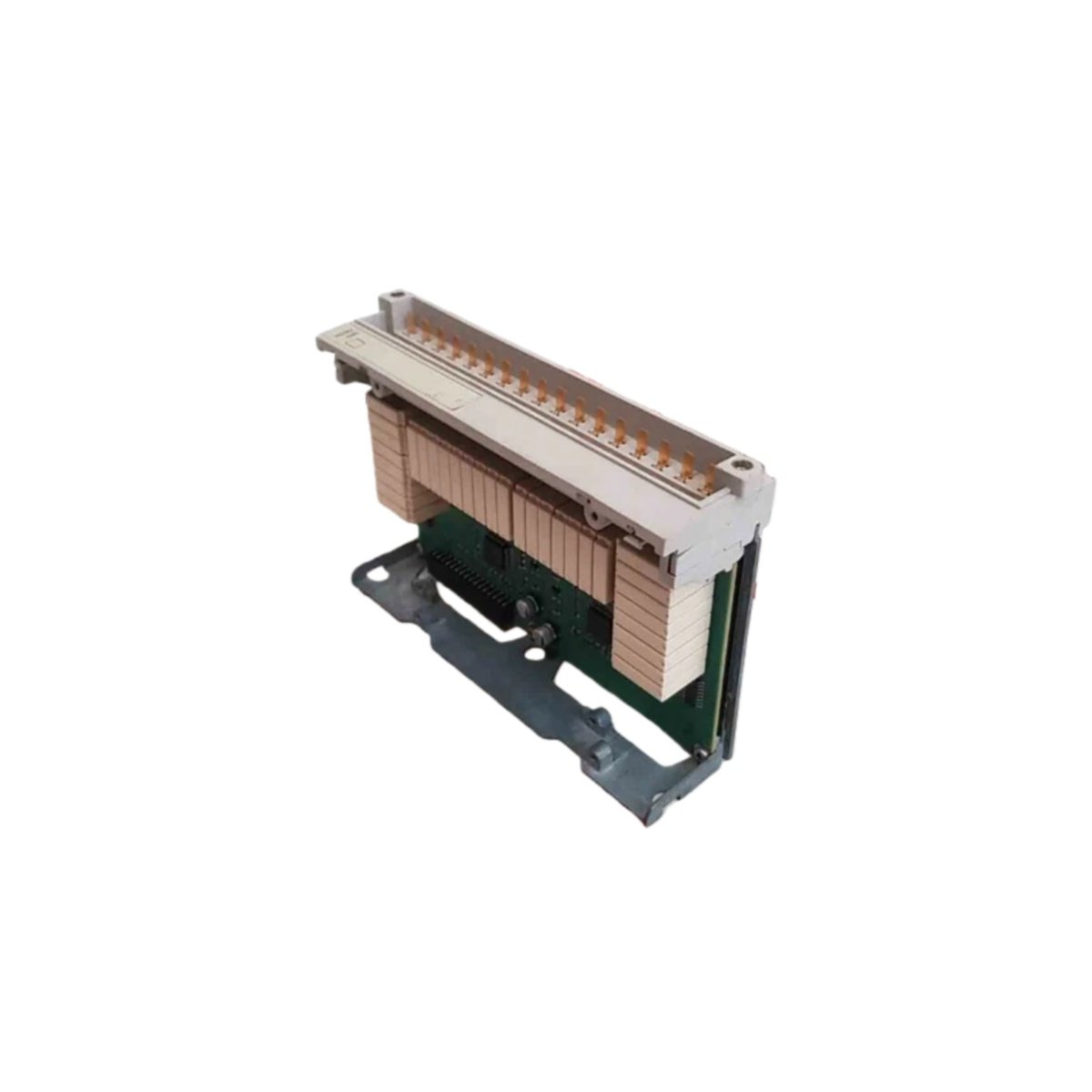

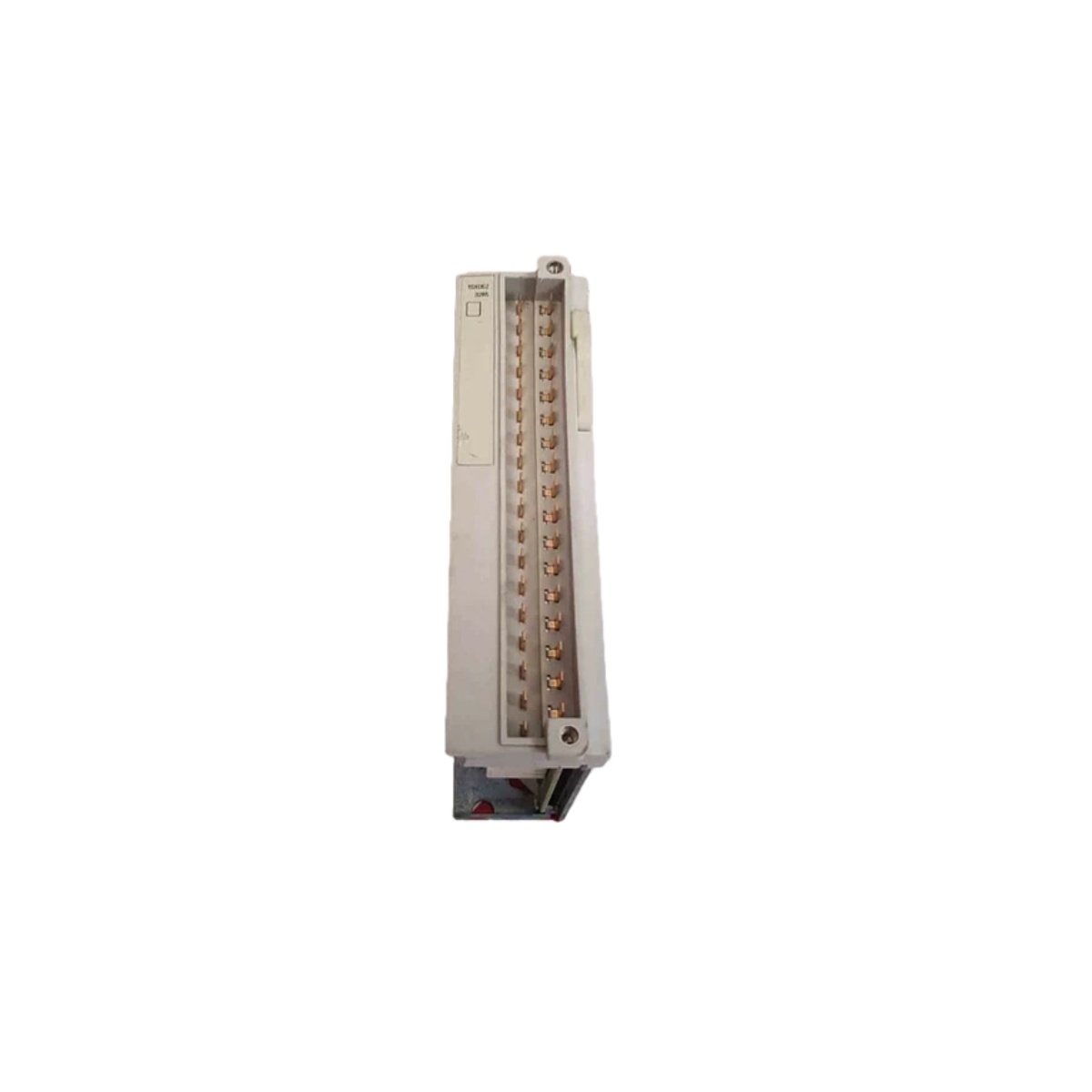

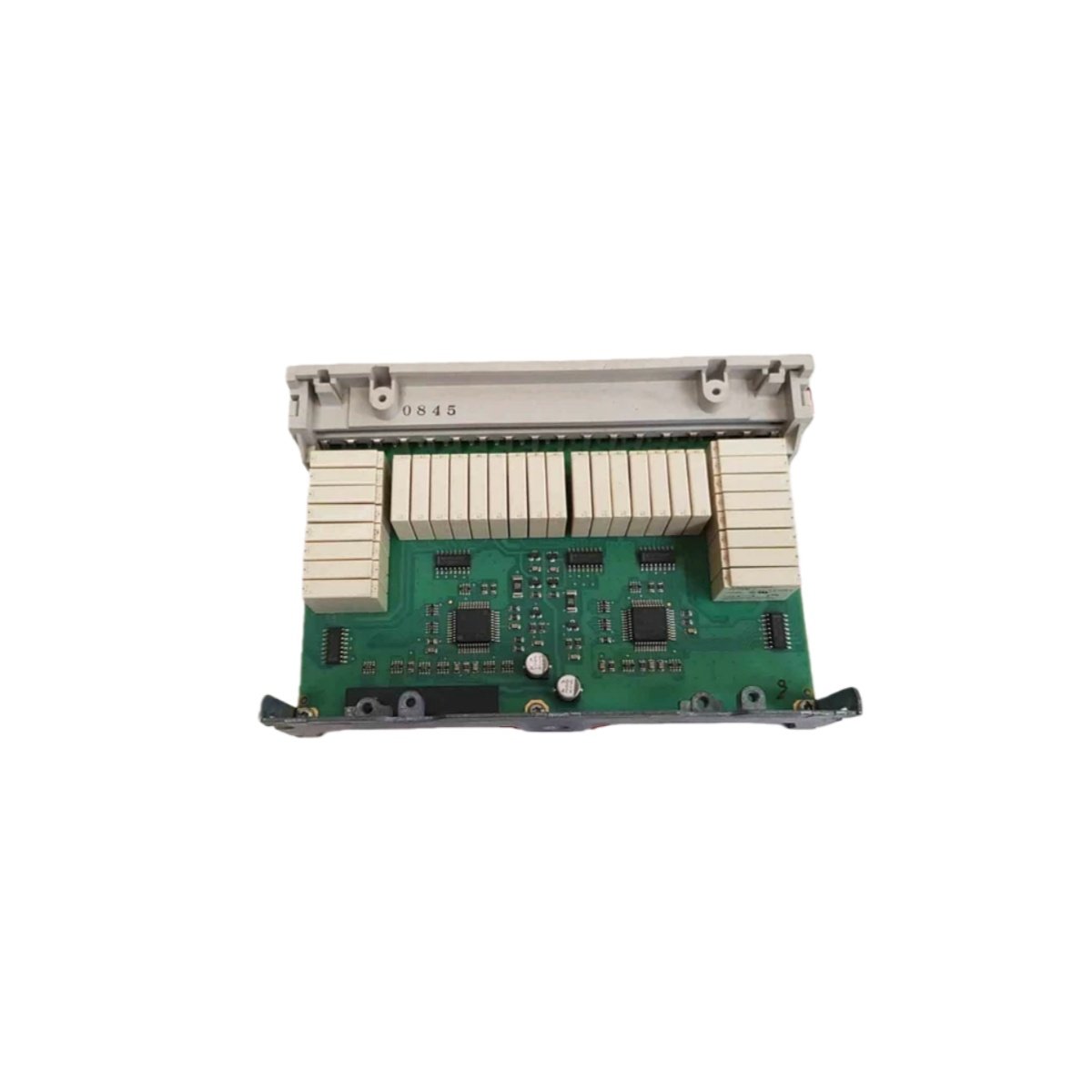

Discrete Output Control for the Modicon Premium Platform
This output module provides 32 discrete channels for the Modicon Premium automation platform. The TSXDSZ32T5 module delivers robust 24 V DC positive logic outputs for demanding industrial environments. It supports a wide input voltage range of 19 to 30 V DC, conforming fully to EN/IEC 61131-2 standards. Each output channel sources up to 0.5 A of current, with a maximum module capacity of 4 A.
Protection and Diagnostics Features
The TSXDSZ32T5 integrates comprehensive protection circuitry for reliable operation. It includes Transil diode overvoltage protection and reverse polarity protection via a reverse-mounted diode. The module also features electronic tripping for overload and short-circuit protection with automatic reactivation. In addition, the module delivers a rapid 1.2 ms response time for both activation and deactivation.
Power, Isolation, and Environmental Specifications
This module draws only 55 mA from the 5 V DC bus and dissipates a maximum of 4 W of power. It provides >10 MΩ isolation resistance at 500 V and withstands 1500 V AC dielectric strength for 60 seconds. The TSXDSZ32T5 operates reliably from 0°C to 60°C and stores safely from -25°C to 70°C. It also incorporates conformal coating (Humiseal 1A33) to protect against moisture and contaminants. The module’s compact format weighs only 0.32 kg, making it suitable for space-constrained control cabinets.
Compliance and Certifications
This module carries CE marking and complies with UL 508, CSA C22.2 No 142, and IEC 61131-2 standards. It also holds marine certifications from DNV, ABS, BV, GL, LR, RINA, and RMRS. The IP20-rated module operates at altitudes up to 2000 meters and supports 10% to 95% relative humidity without condensation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Platform | Modicon Premium |
| Product Type | Discrete Output Module |
| Output Channels | 32 |
| Output Type | Solid State Protected |
| Output Voltage | 24 V DC positive (19-30 V) |
| Current per Channel | 0.5 A |
| Max Current per Module | 4 A |
| Leakage Current | < 0.5 mA at state 0 |
| Residual Voltage | < 1.2 V |
| Response Time | 1.2 ms |
| Overvoltage Protection | Transil diode |
| Overload Protection | Electronic trip (auto-reactivation) |
| Insulation Resistance | >10 MΩ at 500 V |
| Power Dissipation | 4 W max |
| Current Consumption | 55 mA at 5 V DC |
| Dielectric Strength | 1500 V AC for 60 s |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Weight | 0.32 kg |
| Protective Treatment | Conformal coating (Humiseal 1A33) |
| IP Rating | IP20 |
| Certifications | CE, UL, CSA, DNV, ABS, BV, GL, LR, RINA, RMRS |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
