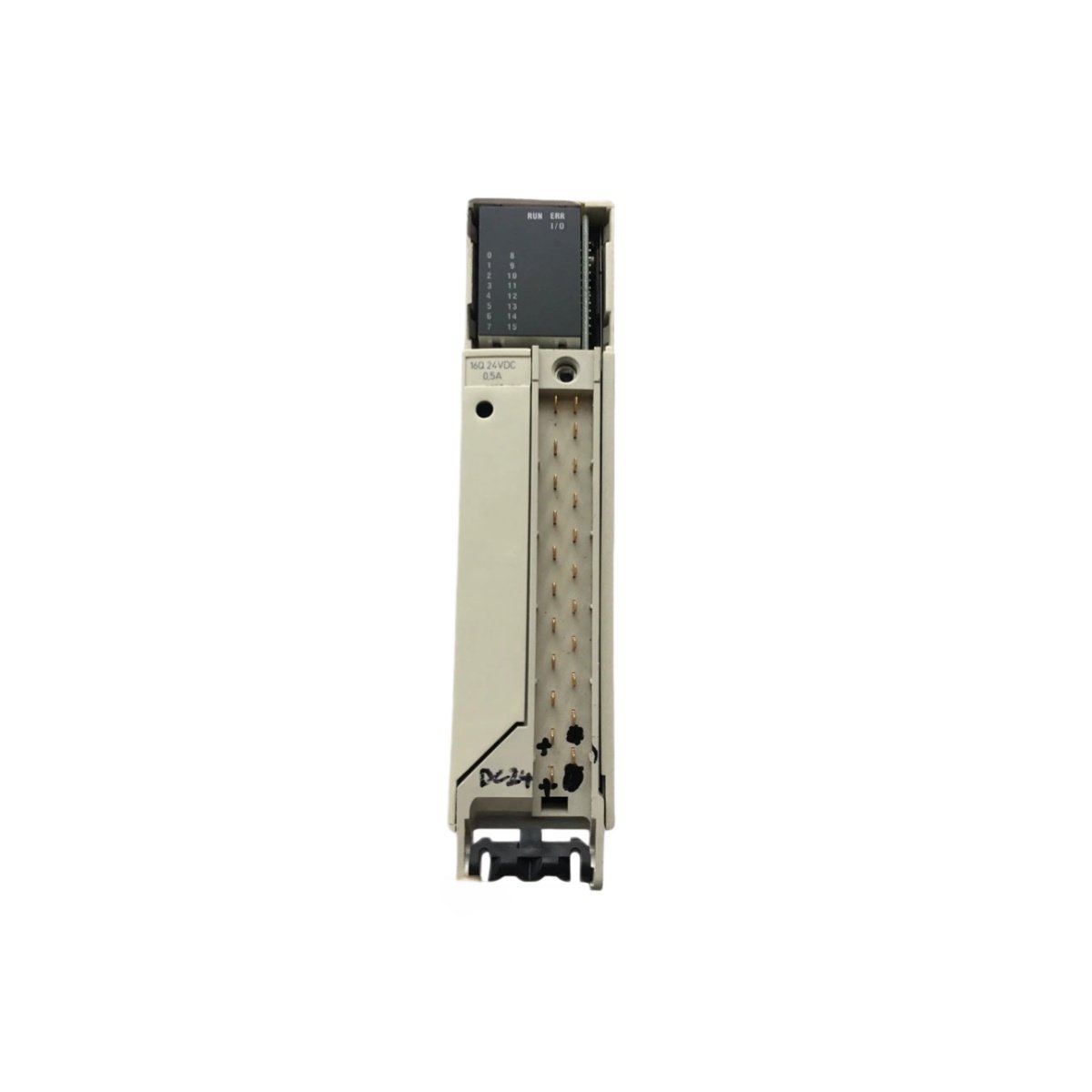

Overview of the Schneider TSXDSY16T2 Discrete Output Module
The TSXDSY16T2 operates as a discrete output module within Schneider’s Modicon Premium automation line. This unit drives field actuators through solid-state transistor switching channels. Engineers deploy it in manufacturing plants that demand fast, reliable ON/OFF control.
Key Technical Specifications of the TSXDSY16T2
The TSXDSY16T2 combines a rugged housing with a secure field wiring interface. Below you will find the core parameters that define this module’s performance envelope.
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Platform | Modicon Premium |
| Output Channels | 16 discrete outputs |
| Output Type | Transistor, positive logic |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Response Time | Under 1 ms typical |
| Isolation | Optical isolation per channel |
| Number of Terminals | 20 screw terminals |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approximately 4 W |
| Dimensions | 140 mm × 100 mm × 30 mm |
| Weight | Approximately 280 g |
| Interface | Screw terminals and backplane bus |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
Physical Design and Interface Details
The TSXDSY16T2 adopts a compact footprint that fits standard Premium racks. Its dimensions measure 140 mm in length, 100 mm in width, and 30 mm in depth. Moreover, the module weighs roughly 280 grams, which simplifies rack installation and field replacement. Twenty screw terminals secure field wiring without specialized tooling.
Performance and Switching Capabilities
This module provides sixteen discrete output channels for flexible actuator control. Each channel handles 24 V DC at 0.5 A, therefore driving relays, solenoids, and indicator lamps. Optical isolation separates field circuits from internal logic, which protects sensitive control electronics. Additionally, the response time stays under 1 ms for fast switching cycles. Consequently, the unit suits high-speed discrete applications in automated plants.
Power and Environmental Considerations
The TSXDSY16T2 operates on a 24 V DC nominal power supply. Power consumption remains approximately 4 W during normal operation. The operating temperature range spans 0°C to 60°C for industrial environments. Storage temperature extends from -25°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
