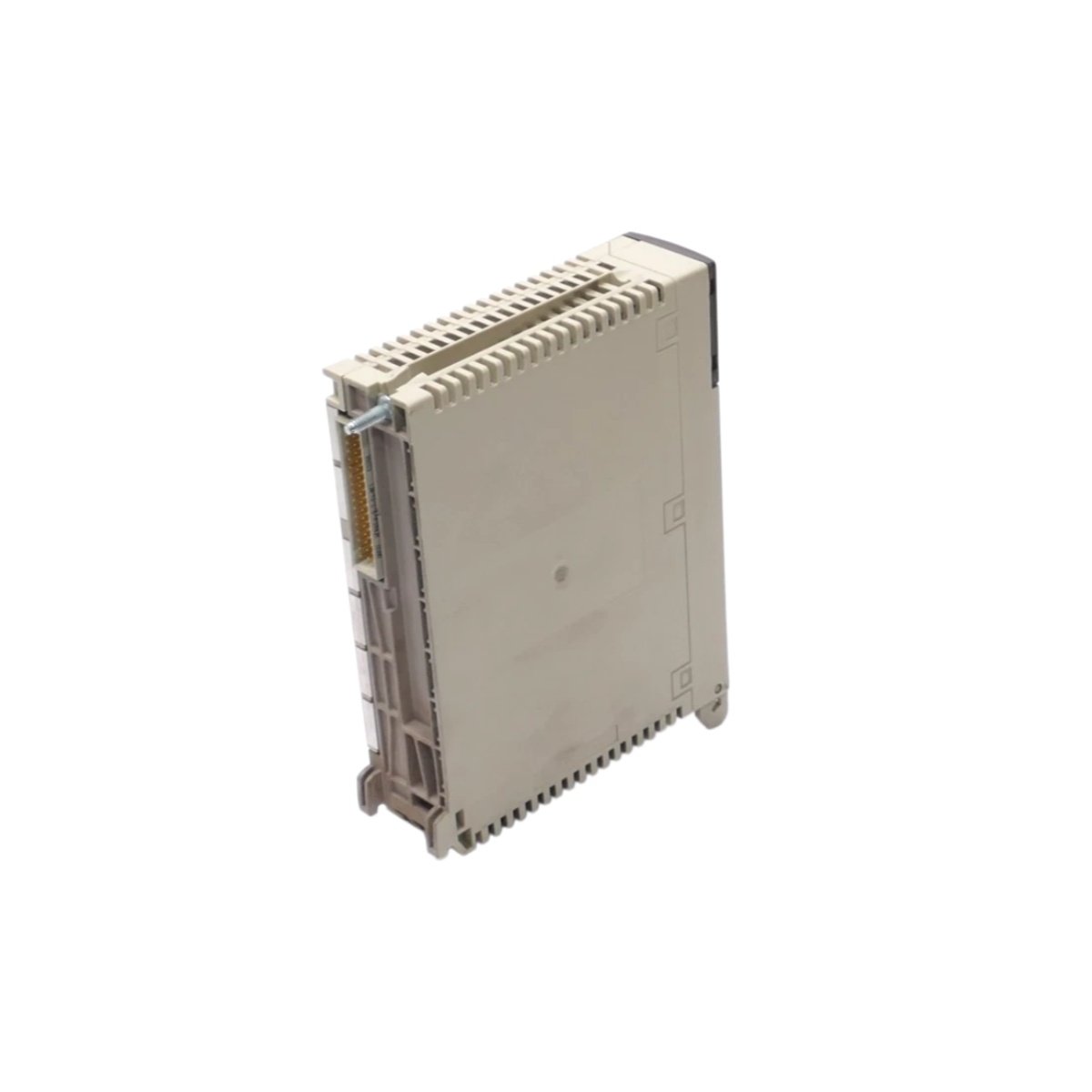

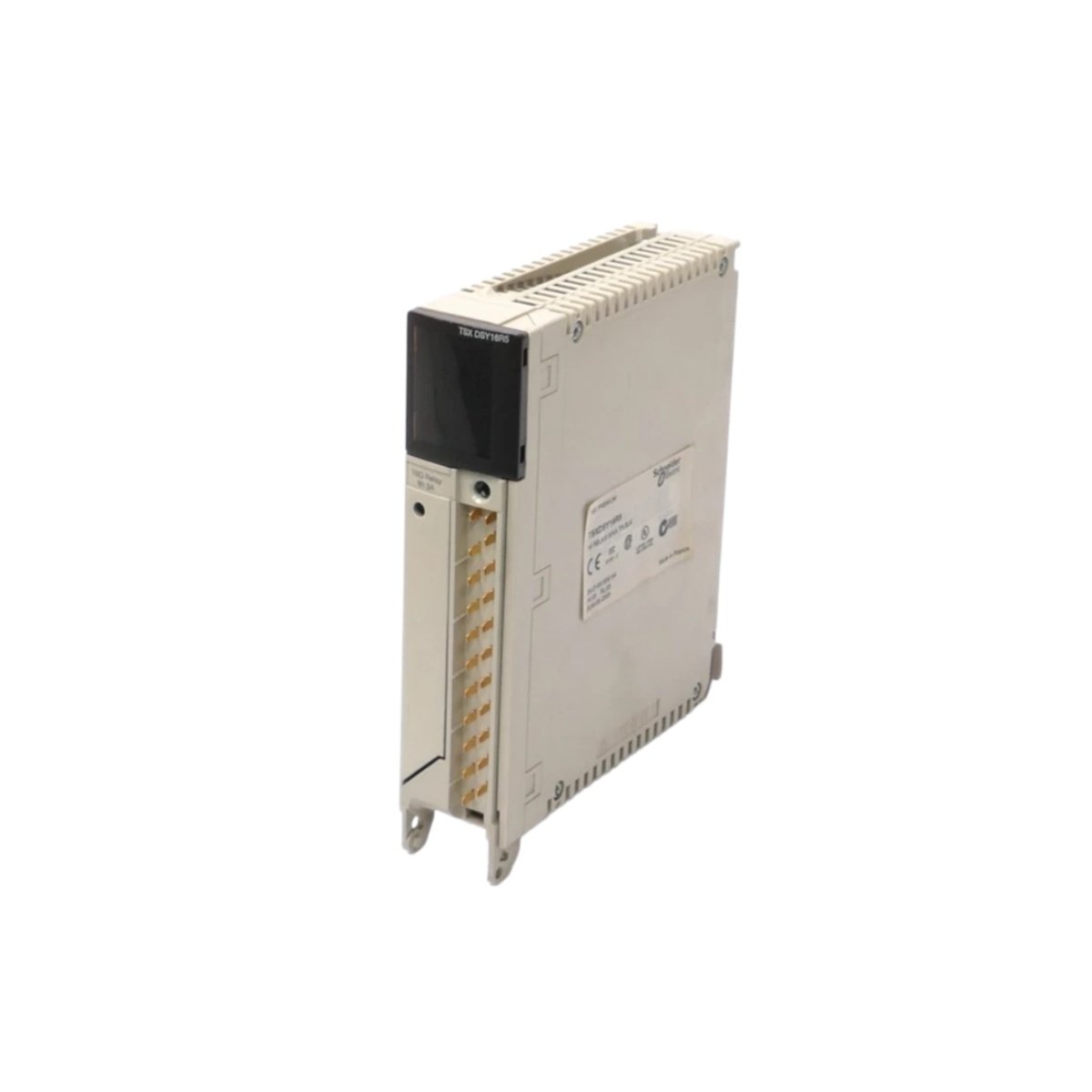

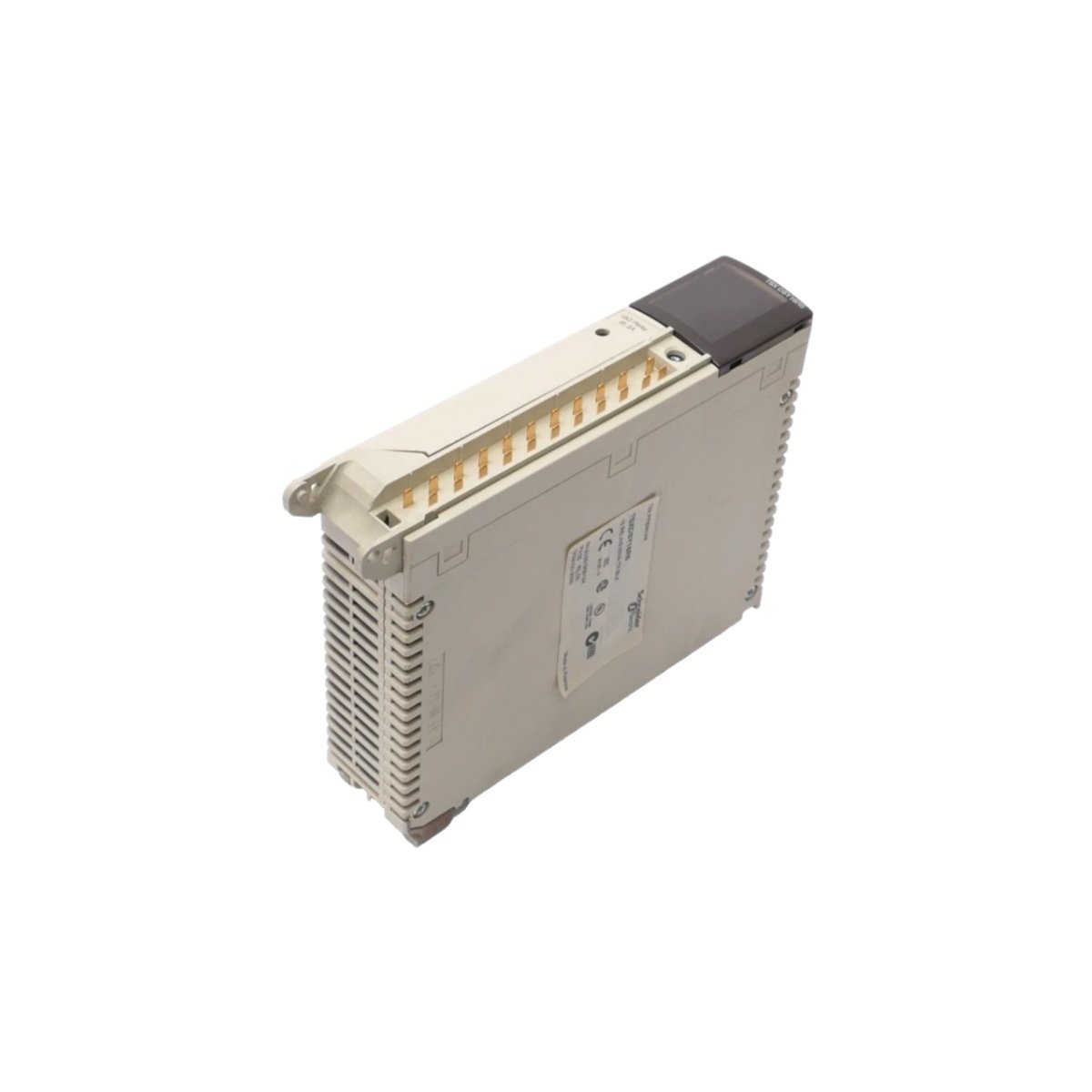

The TSXDSY16R5 switches discrete field loads inside Schneider’s Modicon Premium automation platform. This module measures roughly 9.4 inches long, 1.0 inch wide, and 5.1 inches high. Moreover, it weighs about 0.6 pounds, which keeps cabinet layouts efficient. Engineers select the TSXDSY16R5 when they need dependable relay switching for valves, lamps, and contactors.
Technical Specifications and Interface Details
The unit drives sixteen relay output points and therefore handles both AC and DC loads. Specifically, each channel switches up to 2 A at 250 VAC or 30 VDC. Additionally, a front-facing terminal block simplifies wiring and routine maintenance. Status LEDs reveal per-channel activity during commissioning and troubleshooting.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Relay Output |
| Outputs | 16 relay points |
| Contact Rating | 2 A at 250 VAC / 30 VDC |
| Dimensions | 9.4 x 1.0 x 5.1 in |
| Weight | ~0.6 lbs |
| Interface | Modicon Premium backplane |
| Terminal Block | Front-mounted |
| Indicators | Per-channel status LEDs |
Energy Storage and Contact Reliability
Internal capacitors on the TSXDSY16R5 supply local energy storage for stable coil drive. Consequently, the module handles inductive loads without excessive contact arcing. This buffering also protects driver circuits during rapid on-off cycling. The relay stages therefore deliver consistent performance across long service intervals.
Installation and Compatibility Notes
Because the TSXDSY16R5 slides into standard Modicon Premium racks, technicians complete installation quickly. They should verify load voltage before they connect wiring to the terminals. Furthermore, the module integrates smoothly with existing Premium control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
