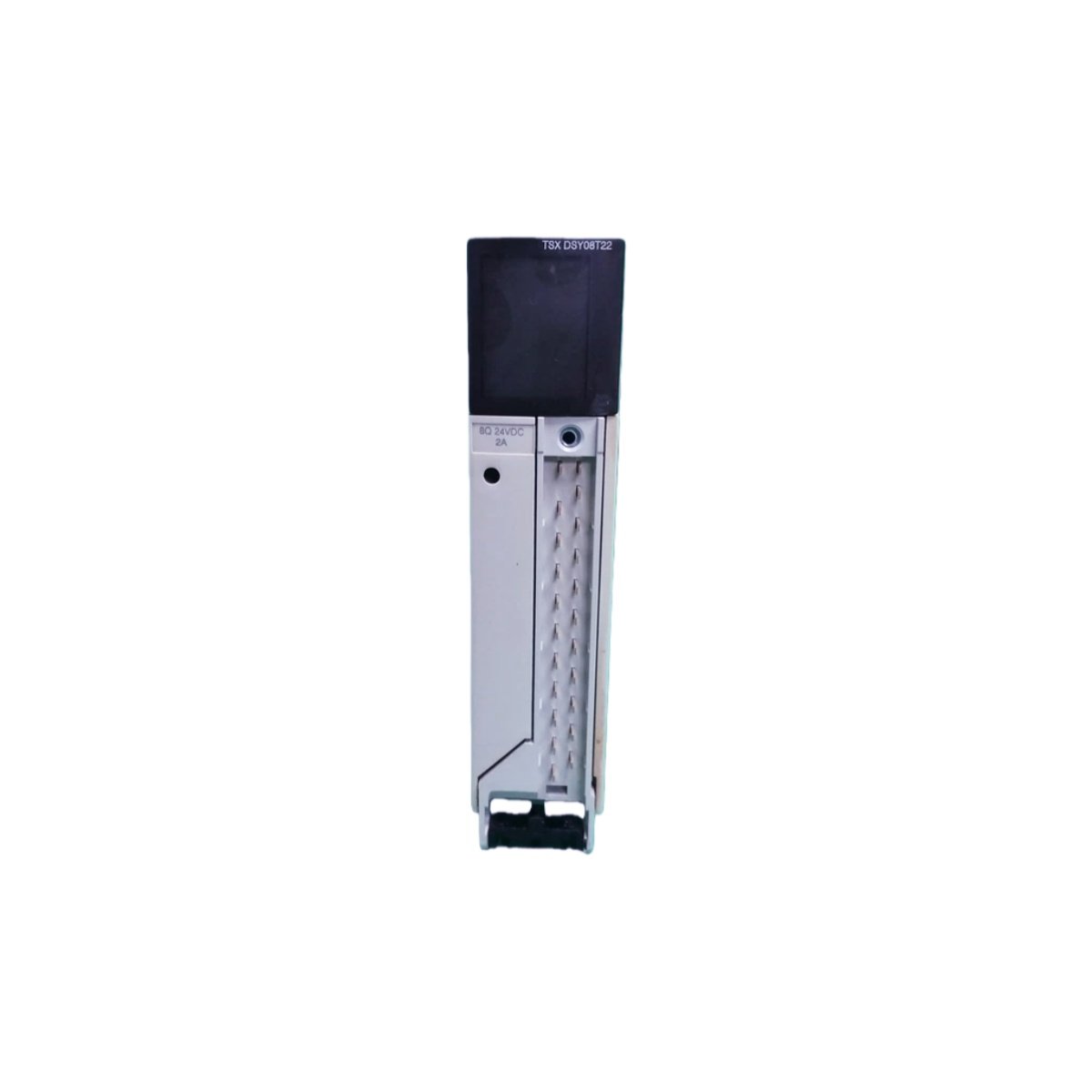

The Schneider TSXDSY08T22 provides 8 transistor output channels for PLC systems. This output module weighs 0.55 kilograms for stable rack mounting. Its dimensions measure 130 mm in height and 100 mm in depth. The width stands at 32 mm for standard TSX rack installation.

Technical Specifications of TSXDSY08T22

The Schneider TSXDSY08T22 delivers transistor outputs rated at 1 amp per channel. Each output handles up to 24 V DC loads directly. The module operates on a 5 V DC supply from the backplane. It draws only 250 milliamps during full load operation. Therefore, this output module suits high-speed switching applications very well.

Below is a complete breakdown of key parameters:

Output Features and Protection

The Schneider TSXDSY08T22 includes built-in short-circuit protection per channel. Each output also features an individual LED status indicator. The module achieves a maximum switching frequency of 1 kHz. Consequently, you can control fast-acting solenoids and actuators precisely. The unit stores no internal energy or backup battery.

Installation and System Integration

You can install this module into any TSX series rack slot. It automatically maps its outputs during system configuration. The Schneider TSXDSY08T22 works seamlessly with TSX Premium PLCs. For similar industrial output solutions, see the RMS-TSG-TZ-C static trip unit. That unit provides reliable protection for power distribution systems. However, the TSXDSY08T22 focuses specifically on high-speed discrete output control.

Performance and Durability Features

This output module supports unlimited mechanical life since it has no moving parts. It offers a response time of only 0.5 milliseconds. The Schneider TSXDSY08T22 tolerates output short circuits without permanent damage. Moreover, its robust transistor design withstands inductive load kickback voltages. These features make it ideal for positioning systems and high-speed counting applications.
