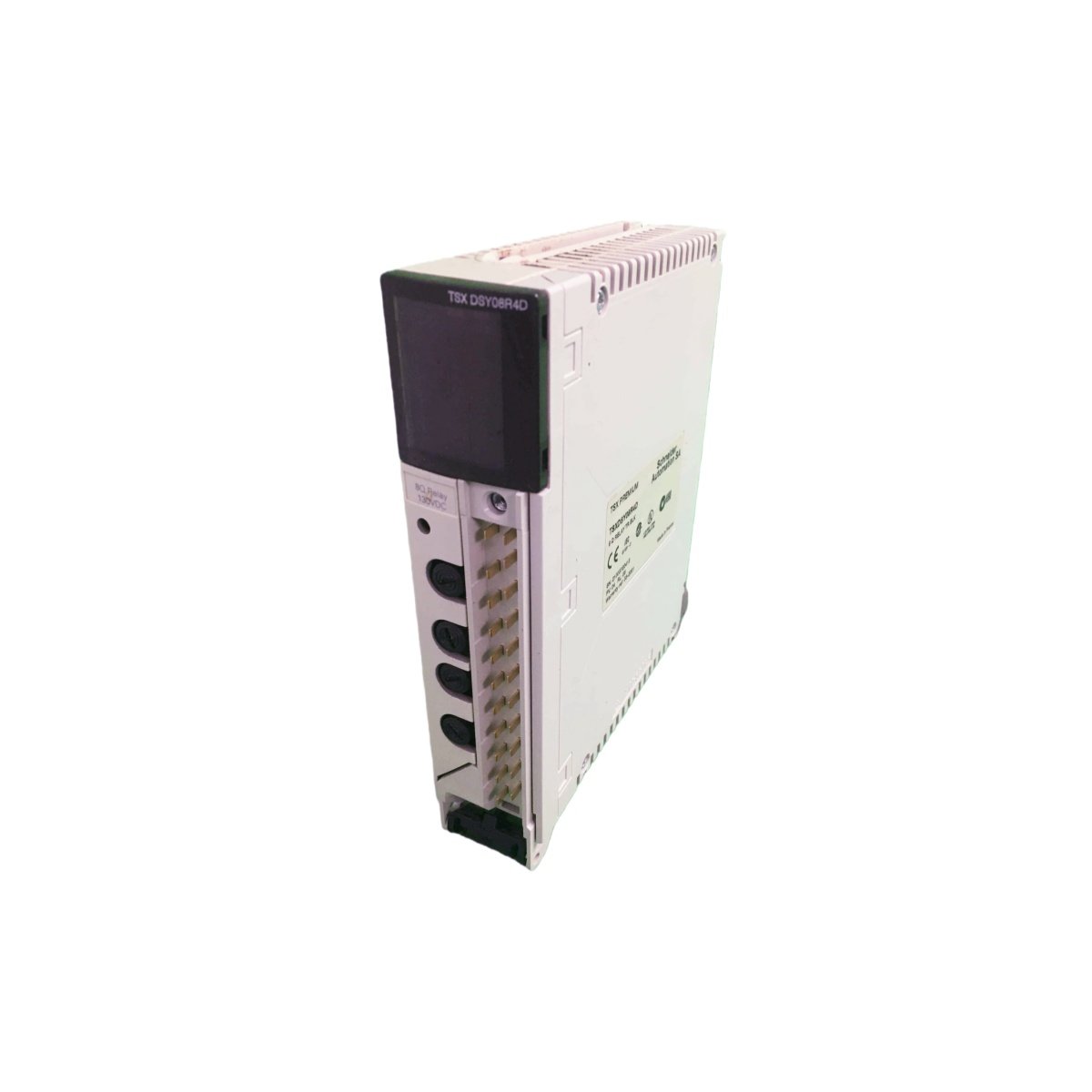

The Schneider TSXDSY08R4D provides 8 relay output channels for PLC systems. This output module weighs 0.55 kilograms for stable rack mounting. Its dimensions measure 130 mm in height and 100 mm in depth. The width stands at 32 mm for standard TSX rack installation.
Technical Specifications of TSXDSY08R4D
The Schneider TSXDSY08R4D delivers relay outputs rated at 2 amps per channel. Each relay switches up to 240 V AC or 30 V DC loads. The module operates on a 5 V DC supply from the backplane. It draws only 200 milliamps during full load operation. Therefore, this output module suits mixed voltage control applications very well.
Below is a complete breakdown of key parameters:
| Parameter | Value |
|---|---|
| Product Model | TSXDSY08R4D |
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Module |
| Number of Outputs | 8 |
| Output Type | Relay (Form C) |
| Contact Rating | 2 A at 240 V AC / 30 V DC |
| Backplane Supply | 5 V DC |
| Current Draw | 200 mA |
| Weight | 0.55 kg |
| Dimensions (H x W x D) | 130 x 32 x 100 mm |
| Connector Type | 20-pin screw terminal |
| Operating Temperature | 0°C to +55°C |
Relay Features and Isolation
The Schneider TSXDSY08R4D includes 8 individually replaceable relays. Each relay provides 1500 V AC isolation between coil and contact. The module features mechanical relay status indicators on the front panel. Consequently, you can monitor each output’s state at a glance. The unit stores no internal energy or backup battery.
Installation and System Integration
You can install this module into any TSX series rack slot. It automatically maps its outputs during system configuration. The Schneider TSXDSY08R4D works seamlessly with TSX Premium PLCs. For similar industrial output solutions, see the RMS-TSG-TZ-C static trip unit. That unit provides reliable protection for power distribution systems. However, the TSXDSY08R4D focuses specifically on discrete relay output control.
Performance and Durability Features
This output module supports a mechanical life of 20 million operations. It offers an electrical life of 100,000 operations at rated load. The Schneider TSXDSY08R4D tolerates surge voltages up to 2.5 kV. Moreover, its robust relay contacts withstand inrush currents up to 5 amps. These features make it ideal for motor control and solenoid applications.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
