Core Technical Specifications

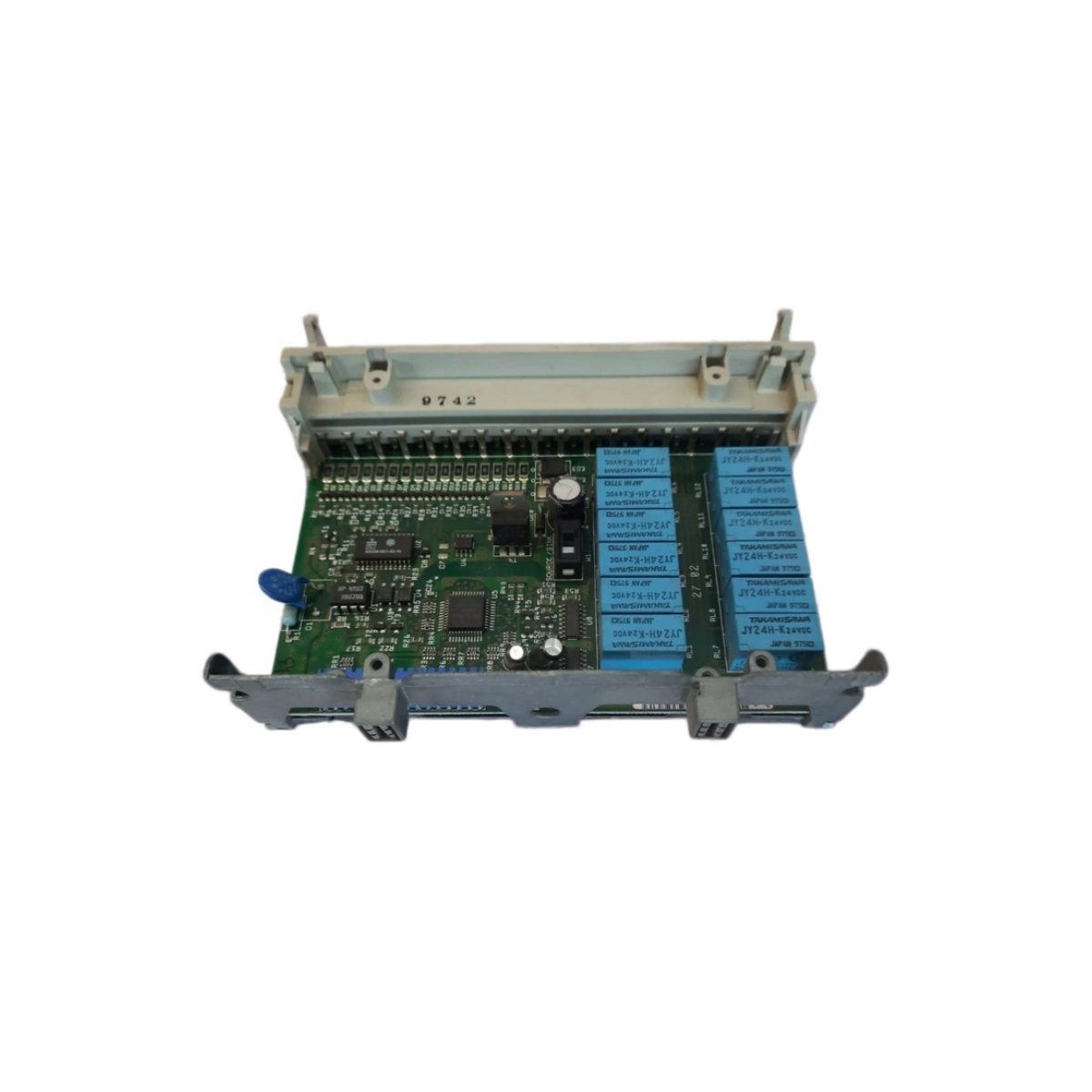

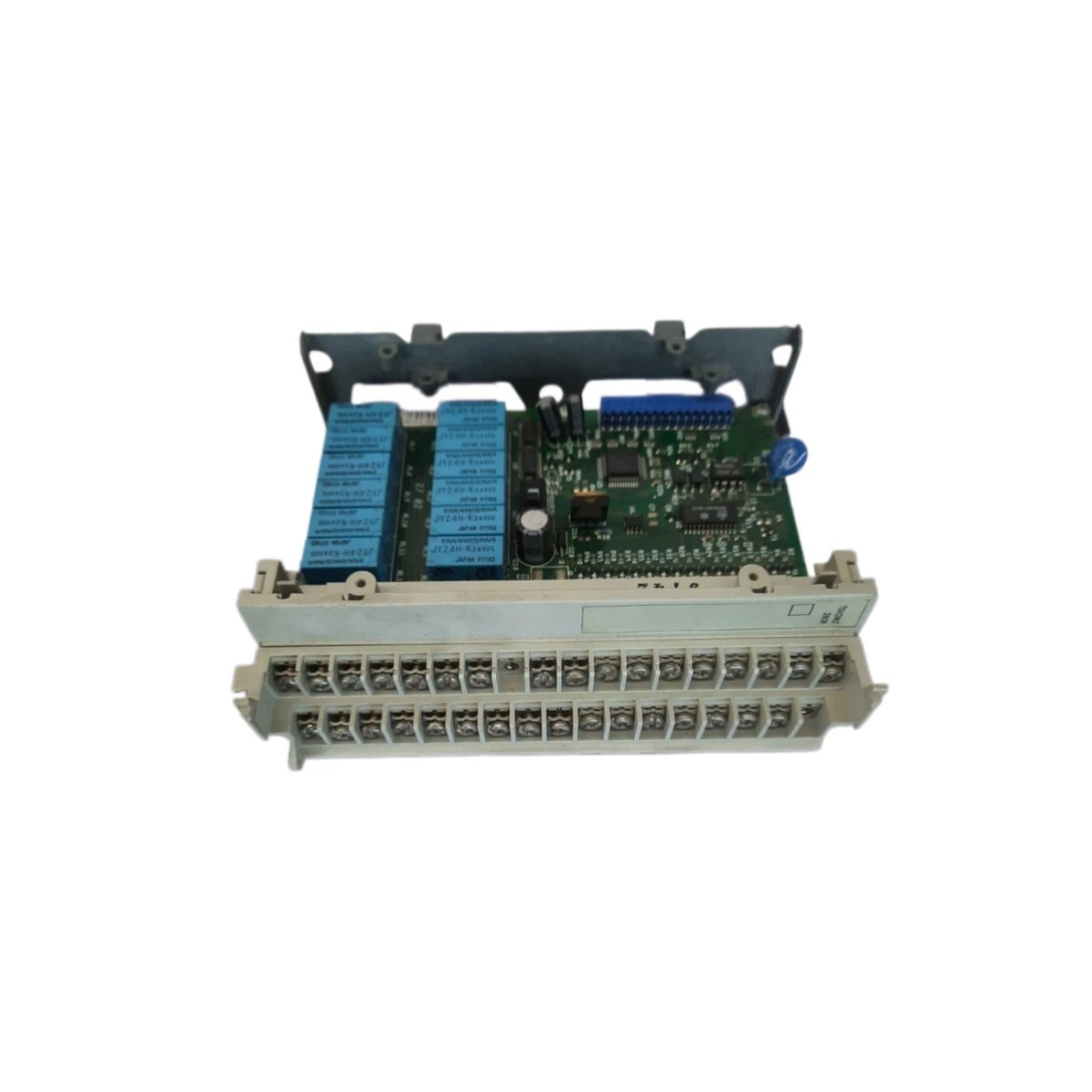

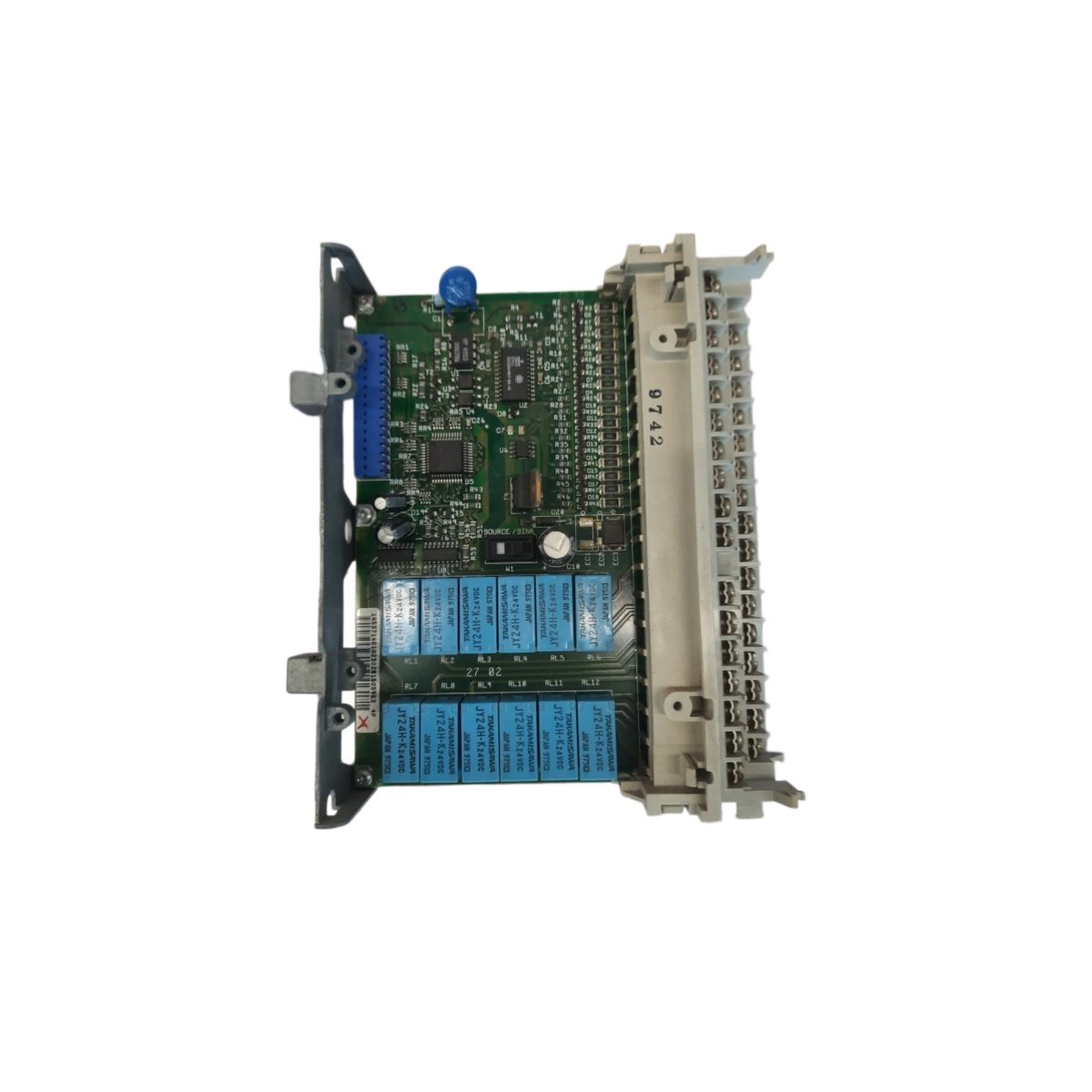

This remote I/O module extends your control system’s reach to field devices across the factory floor. We engineered the TSXDMZ28DR to provide reliable distributed I/O capabilities for complex automation networks.
| Parameter | Specification |
|---|---|
| Product Type | Remote I/O Module |
| Dimensions | 130 mm x 100 mm x 45 mm (W x H x D) |
| Weight | 0.40 kg |
| Supply Voltage | 24 V DC nominal (range: 19.2 V to 30 V) |
| Power Consumption | 4.5 W typical |
| Digital Inputs | 16 channels, 24 V DC, sinking/sourcing |
| Digital Outputs | 12 channels, 24 V DC, 0.5 A per channel, solid-state |
| Input Current | 7 mA typical per channel |
| Communication Port | 1 x RS-485 (Modbus) |
| Communication Speed | 19.2 kbps maximum |
| Network Length | 1,200 meters maximum (with repeaters) |
| Address Range | 64 input bits, 48 output bits (configurable) |
| Diagnostics | 8 status LEDs (power, run, fault, port activity) |
| Isolation | 500 V AC (field-to-logic) |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | DIN-rail mounted |
| Certifications | CE, UL, and CSA approved |
Distributed I/O Capability
The TSXDMZ28DR positions I/O points exactly where you need them on the factory floor. This module reduces long cable runs by locating processing close to sensors and actuators. The 16 digital inputs accept standard 24 V DC signals from proximity sensors and limit switches. The 12 digital outputs drive solenoids, relays, and indicator lamps with 0.5 A per channel.
Robust Communication Network
This remote I/O module communicates with the main PLC through the RS-485 Modbus network. The module supports network lengths up to 1,200 meters, covering large facilities effectively. You can install repeaters to extend this distance further if required. The communication speed of 19.2 kbps ensures timely data updates for your control application.
Flexible Addressing and Configuration
The TSXDMZ28DR uses configurable addressing for input and output data mapping. The module allocates 64 bits for input status and 48 bits for output commands. This flexible addressing simplifies integration with existing control programs and HMI systems. Consequently, you can expand your I/O capacity without rewriting extensive portions of your logic.
Diagnostic Visibility and Status Monitoring
This remote I/O module includes eight status LEDs for rapid fault identification. These indicators show power, run mode, communication activity, and individual channel conditions. The module also reports diagnostic data back to the PLC over the network. This visibility allows your control program to detect and respond to module or wiring faults immediately.
Compact and Reliable Construction
The TSXDMZ28DR weighs just 0.40 kg and measures 130 x 100 x 45 mm. This compact form factor saves valuable cabinet space for other essential components. The module mounts securely on standard DIN rails, simplifying installation and maintenance. The 500 V AC isolation protects the communication network from field wiring faults and electrical noise.
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 130 × 100 × 45 mm |
