Core I/O Expansion Function for TSX Micro Systems

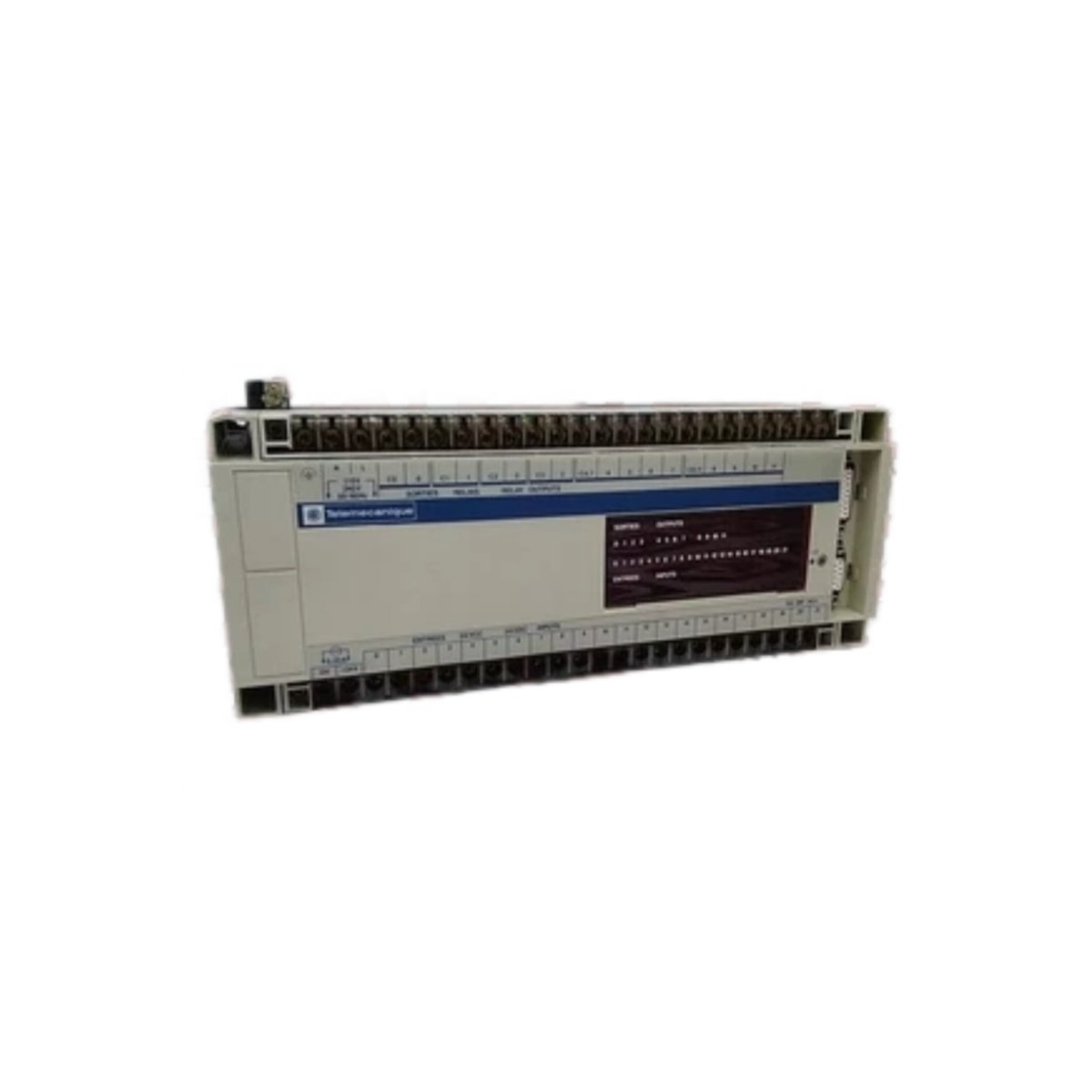

The Schneider TSXDMF342A is an expansion unit for the Modicon TSX Micro programmable logic controller family. This module provides 32 discrete inputs and operates on a 24 V DC voltage, with each input drawing 3.5 mA for efficient control . It is a core component for expanding the I/O capacity of compact TSX Micro automation systems.
Designed for Modular System Expansion
The TSXDMF342A connects to the TSX Micro base unit via the I/O bus, enabling a scalable automation architecture . Its HE-10 connector type ensures compatibility with standard TSX Micro cabling and accessories . Furthermore, the module’s compact design allows for efficient use of space in control cabinets .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Schneider Electric / Modicon TSX Micro |
| Product Model | TSXDMF342A |
| Module Type | Expansion Unit / Discrete Input Module |
| Input Channels | 32 Discrete Inputs |
| Input Voltage | 24 V DC |
| Input Current per Channel | 3.5 mA |
| Connector Type | HE-10 |
| Product Weight | 1.50 kg |
| Compatibility | Modicon TSX Micro PLC Systems |
Application in Legacy System Support
Engineers use this expansion unit to maintain and support existing Modicon TSX Micro installations . It is a critical component for industries where these legacy controllers remain in daily operation. The Schneider TSXDMF342A is essential for lifecycle management of classic Schneider Electric automation platforms. Therefore, sourcing tested units from specialized suppliers is crucial for ensuring long-term system reliability .
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
Reviews
There are no reviews yet.
