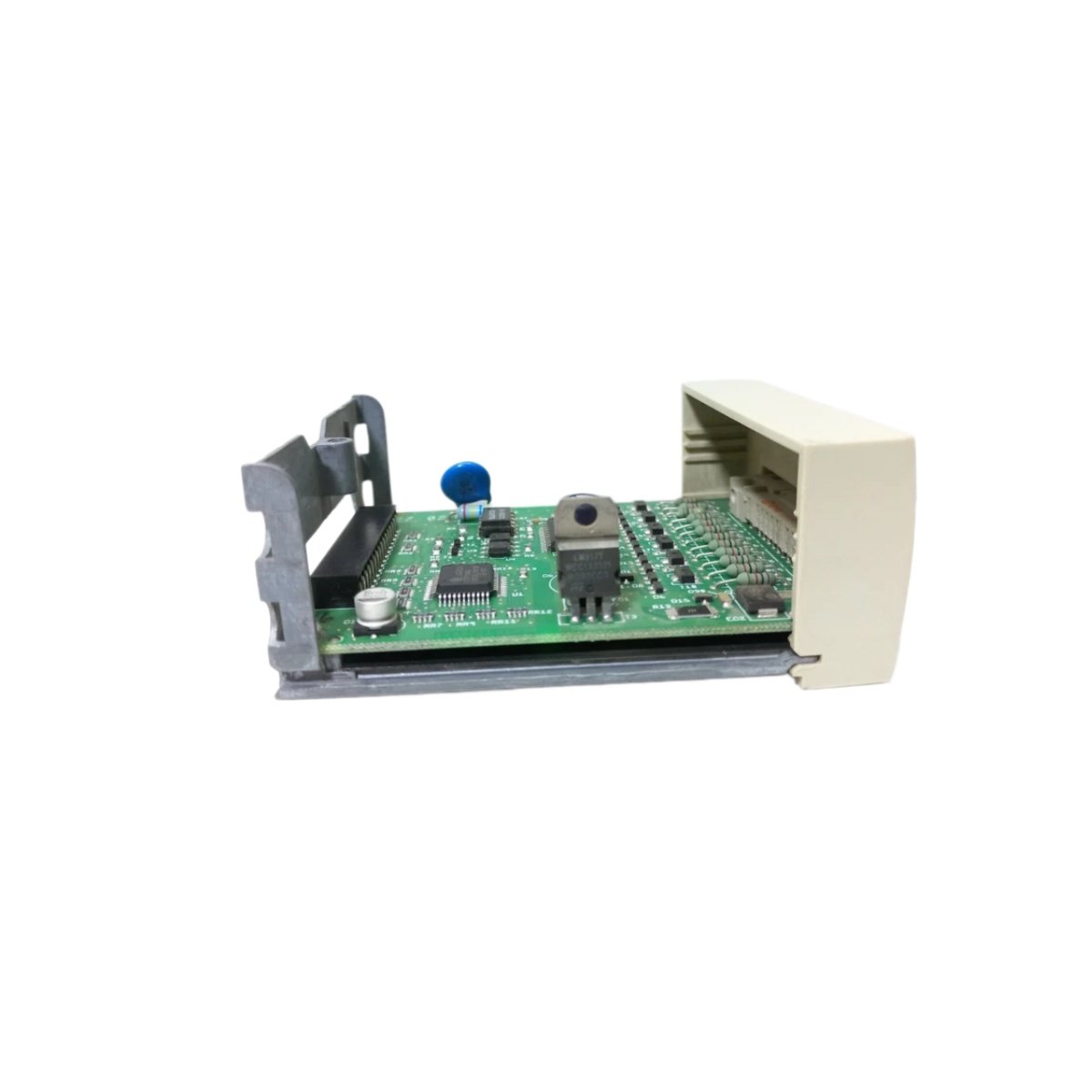

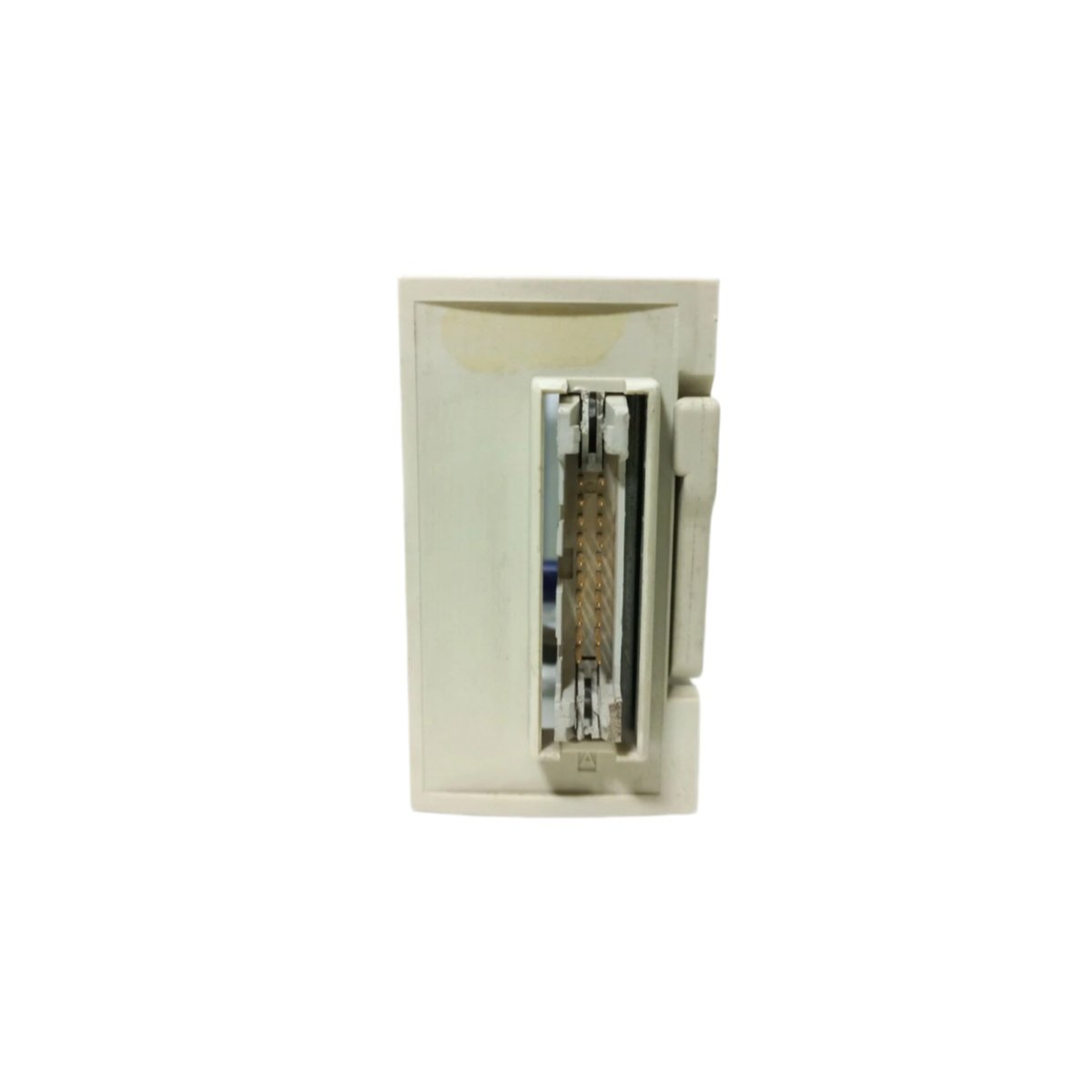

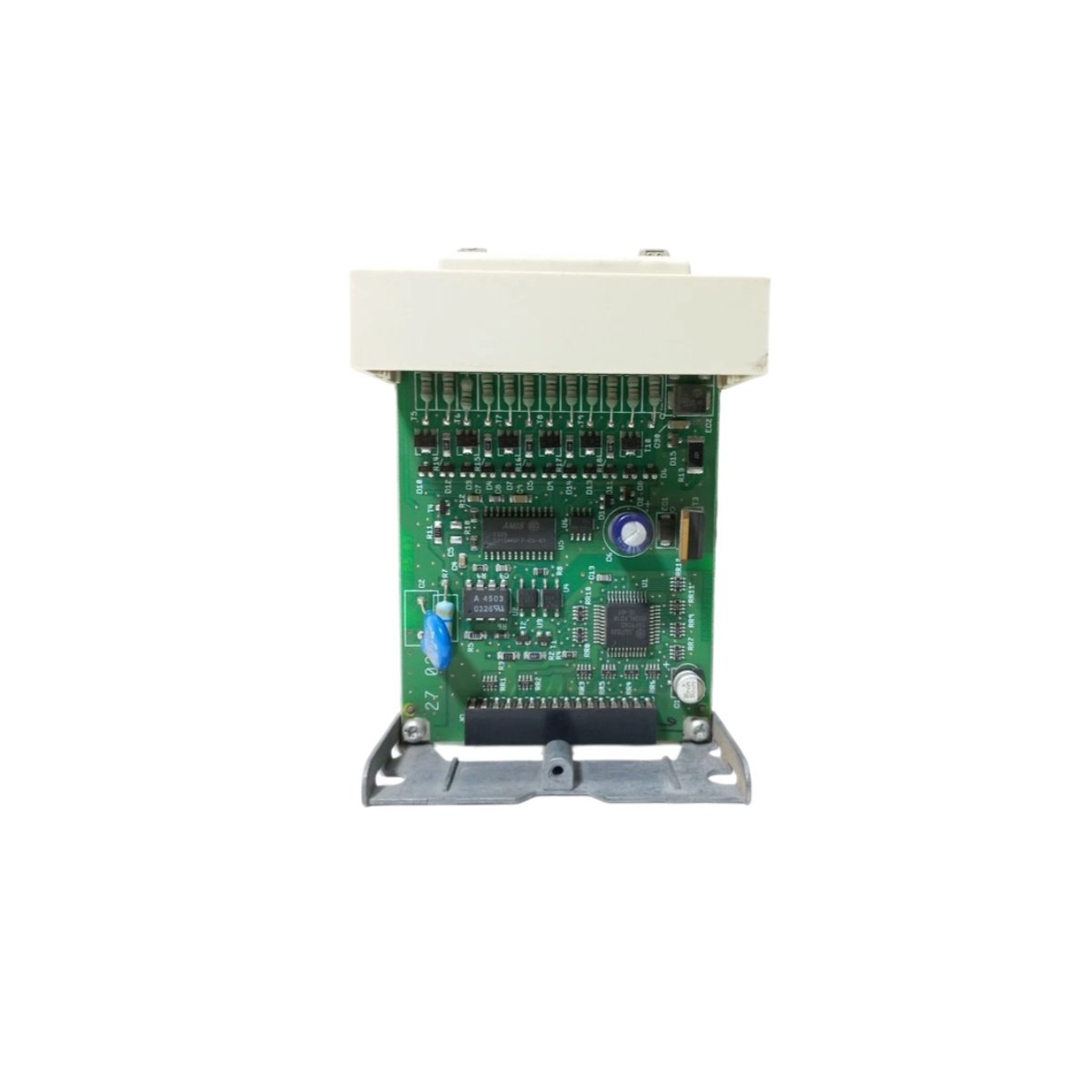

The TSXDEZ12D2K captures discrete field signals inside Schneider’s Modicon Premium automation platform. This module measures roughly 9.4 inches long, 1.0 inch wide, and 5.1 inches high. Moreover, it weighs about 0.6 pounds, which keeps cabinet layouts efficient. Engineers select the TSXDEZ12D2K when they need dependable sensing of switches, contacts, and proximity devices.
Technical Specifications and Interface Details
The unit reads discrete sensor states and therefore supports limit switches, pushbuttons, and relay contacts. Specifically, it provides sixteen input points with defined logic thresholds. Additionally, a front-facing terminal block simplifies wiring and routine maintenance. Status LEDs reveal per-channel activity during commissioning and troubleshooting.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input Module |
| Inputs | 16 points |
| Input Voltage | 24 VDC nominal |
| Dimensions | 9.4 x 1.0 x 5.1 in |
| Weight | ~0.6 lbs |
| Interface | Modicon Premium backplane |
| Terminal Block | Front-mounted |
| Indicators | Per-channel status LEDs |
Energy Storage and Signal Conditioning
Internal capacitors on the TSXDEZ12D2K provide local energy storage for clean input thresholds. Consequently, the module rejects electrical noise from motors and contactors nearby. This filtering keeps logic readings stable in demanding plant environments. The input stages therefore respond consistently across repeated switching cycles.
Installation and Compatibility Notes
Because the TSXDEZ12D2K slides into standard Modicon Premium racks, technicians complete installation quickly. They should verify field voltage before they connect wiring to the terminals. Furthermore, the module integrates smoothly with existing Premium control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
