High-Speed Axis Control for Precision Automation

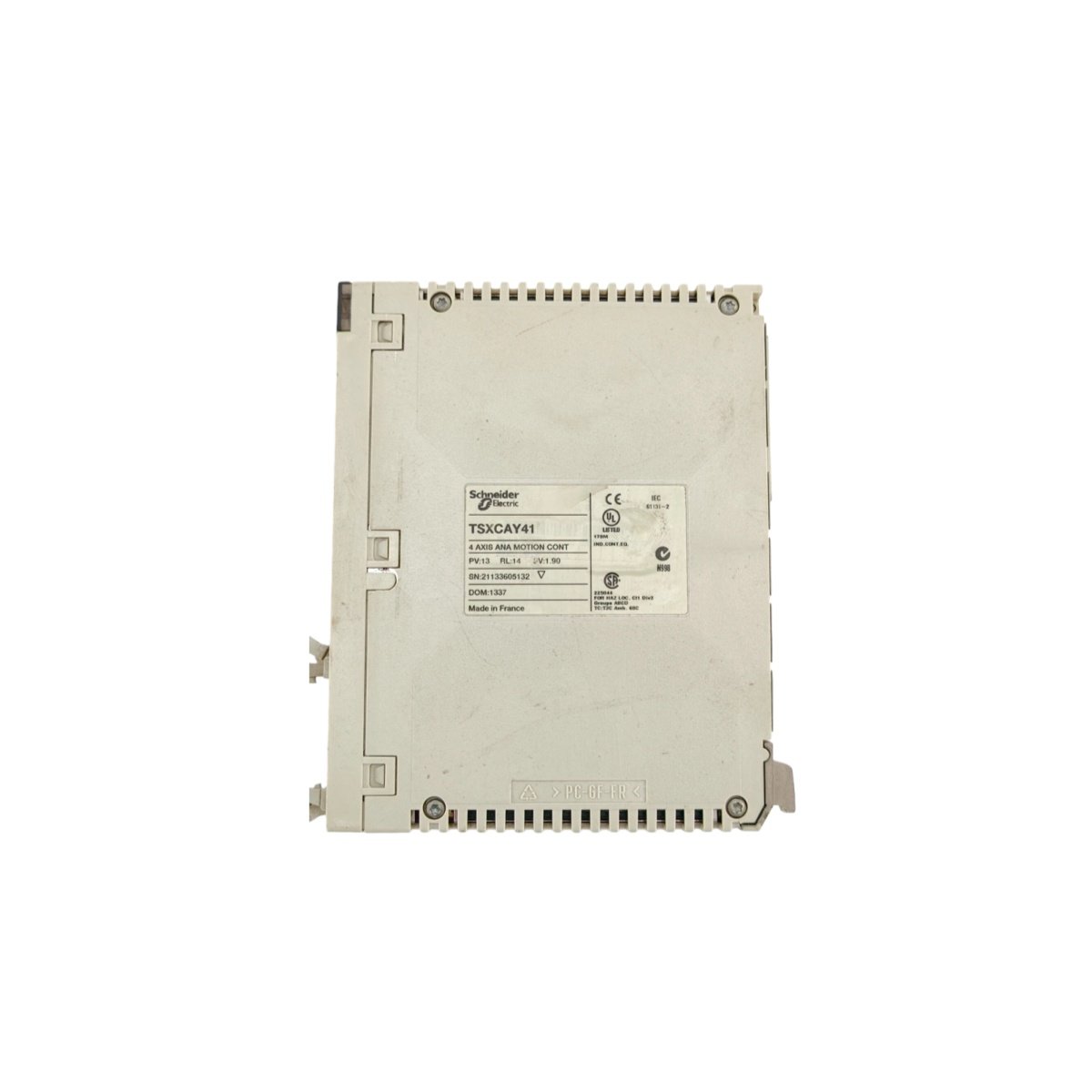

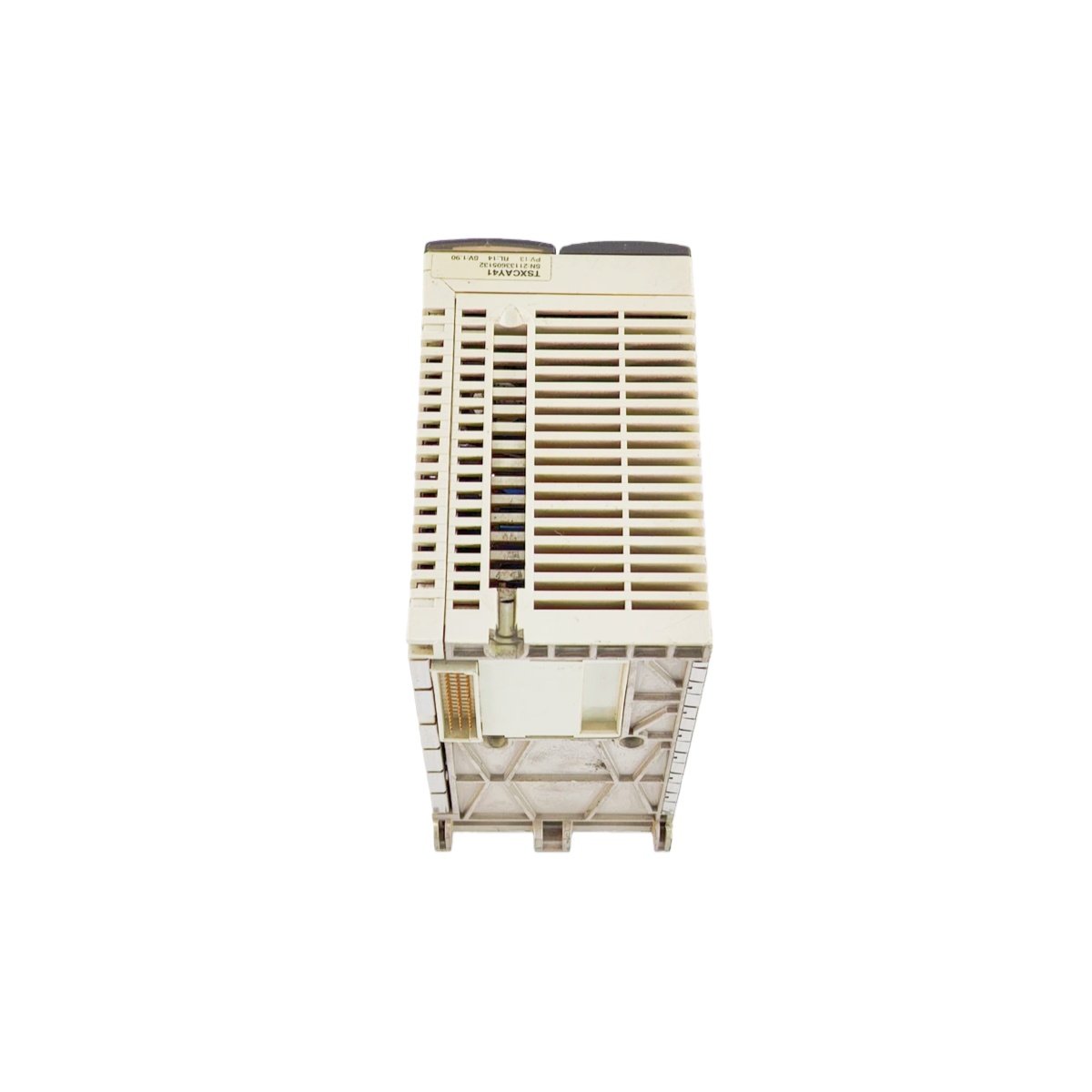

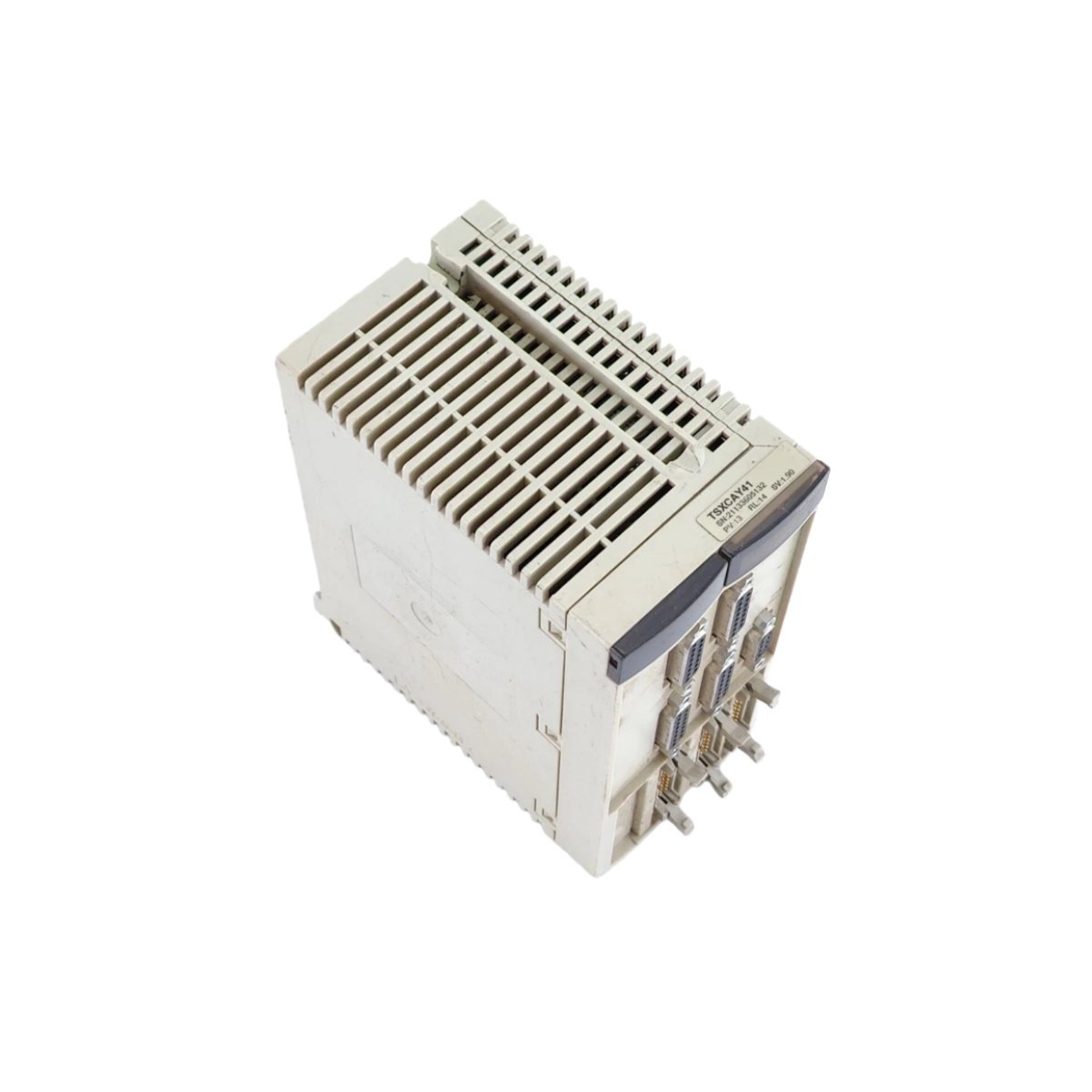

The Schneider TSXCAY41C motion control module provides four independent axes of high-speed positioning and interpolation for Premium PLC systems. This module generates pulse train outputs (PTO) and pulse width modulation (PWM) signals for controlling servo drives and stepper motors. It supports linear interpolation between any two axes for coordinated motion in complex applications. The module also accepts incremental encoder feedback for closed-loop position verification. Furthermore, it includes dedicated inputs for home, limit, and emergency stop functions. Integrated software configuration tools simplify setup and commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Motion Control Module |
| Product Line | Premium Series |
| Control Axes | 4 independent axes |
| Output Signal | PTO (pulse train) and PWM |
| Pulse Frequency | Up to 200 kHz |
| Output Voltage | 5V or 24V DC (configurable) |
| Encoder Inputs | 4 channels (differential A/B/Z) |
| Encoder Frequency | Up to 500 kHz |
| Position Feedback | Incremental encoder (RS-422) |
| Interpolation | Linear interpolation (2 axes) |
| Dedicated Inputs | Home, limit (±), emergency stop |
| Power Supply | 24V DC ±20% |
| Power Consumption | 250 mA typical |
| Electrical Isolation | 500V between I/O and bus |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W x H x D) | 120 x 100 x 45 mm |
| Weight | 0.4 kg |
| Mounting | DIN-rail |
| Certifications | CE, UL, CSA |
| Product Origin | France |
Application and System Integration
Engineers commonly deploy the Schneider TSXCAY41C in packaging machines, labeling systems, and pick-and-place equipment. This module integrates with Premium PLCs through the standard backplane and supports seamless data exchange. It provides precise speed and position control for multi-axis synchronization. The module supports electronic gearing and cam profiling for advanced motion applications. Consequently, machine builders achieve higher throughput and improved product quality with reliable motion control.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
