4-Channel Analog Output Module for Modicon Premium Systems

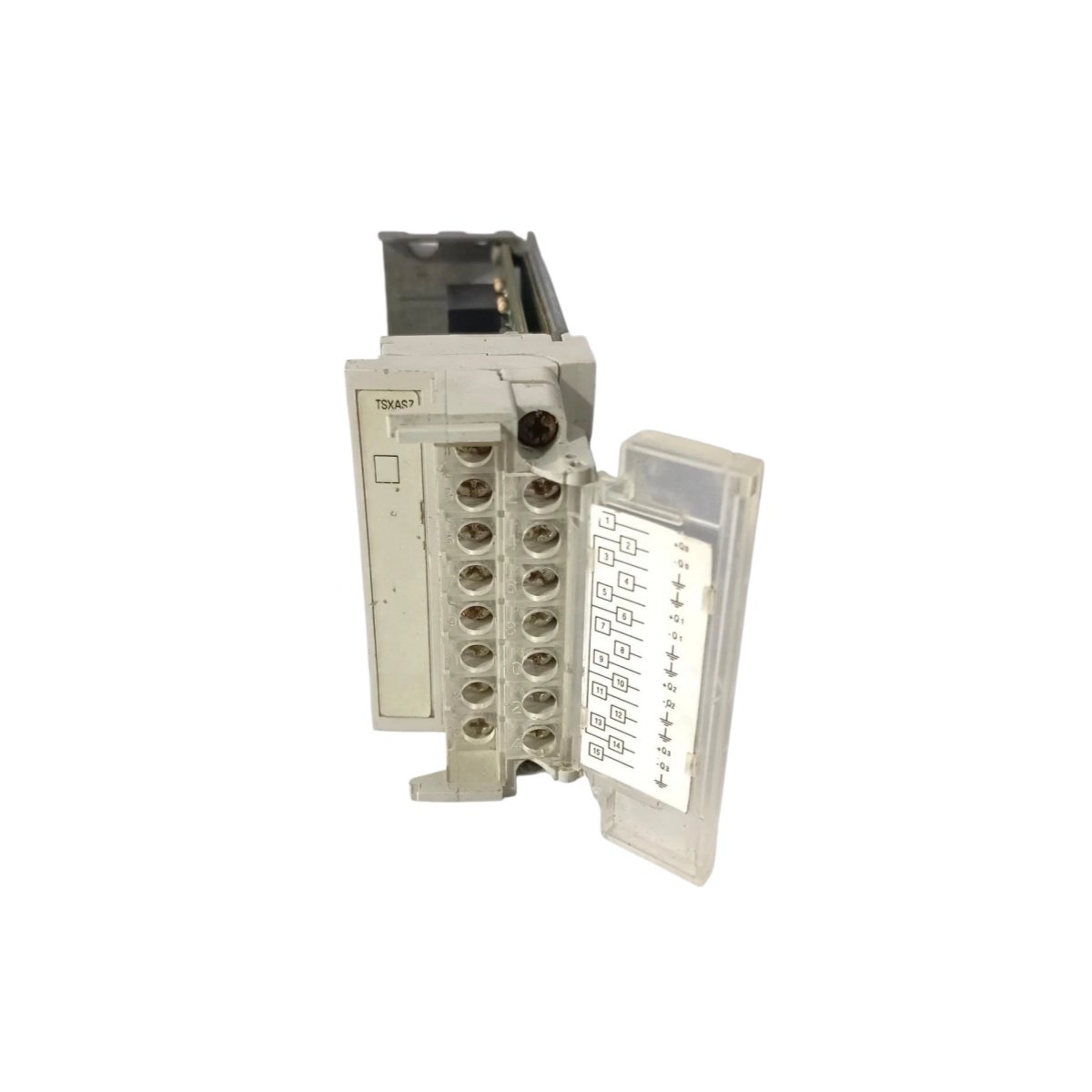

The Schneider TSXASZ401 functions as an analog output module within the Modicon Premium automation platform. This module converts digital values from the controller into precise analog signals for field actuators. Its 4-channel design supports multi-loop control of valves, drives, and process instruments.
Output Configuration and Signal Ranges
This analog output module provides 0 to 10 VDC and 4 to 20 mA signals with 12-bit resolution. Users can individually configure each channel for voltage or current operation. A built-in short-circuit protection safeguards the outputs against wiring faults. Furthermore, the module achieves a high accuracy of ±0.5% for reliable process control. Consequently, operators can trust the output stability for critical regulation tasks.
Protection and Diagnostic Features
The TSXASZ401 features 1500 VAC isolation between the outputs and the backplane. This isolation protects the bus from electrical noise and transient surges. Front-panel LEDs provide clear channel status indication for each output. Additionally, the module supports hot-swapping for minimal system downtime. For this reason, troubleshooting becomes quick and straightforward for maintenance personnel.
Physical Specifications and Environmental Ratings
This analog output module mounts directly on the Premium backplane. Its dimensions fit standard Premium rack slots for straightforward installation. The module draws 200 mA from the backplane supply for normal operation. Furthermore, it operates reliably from 0 °C to 60 °C ambient temperature. Consequently, this module provides a dependable analog output solution for Premium-based systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXASZ401 |
| Type | Analog Output Module |
| Platform | Modicon Premium |
| Number of Channels | 4 |
| Output Ranges | 0 to 10 VDC, 4 to 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.5% of full scale |
| Protection | Short-circuit |
| Isolation | 1500 VAC (channel to bus) |
| Backplane Current | 200 mA |
| Hot-Swap | Yes |
| Dimensions | 100 x 80 x 110 mm |
| Weight | 0.30 kg (approx.) |
| Operating Temp | 0 °C to 60 °C |
| Compliance | UL, CSA, CE |
Details
| Weight | 0.03 kg |
|---|---|
| Dimensions | 100 × 120 × 22 mm |
