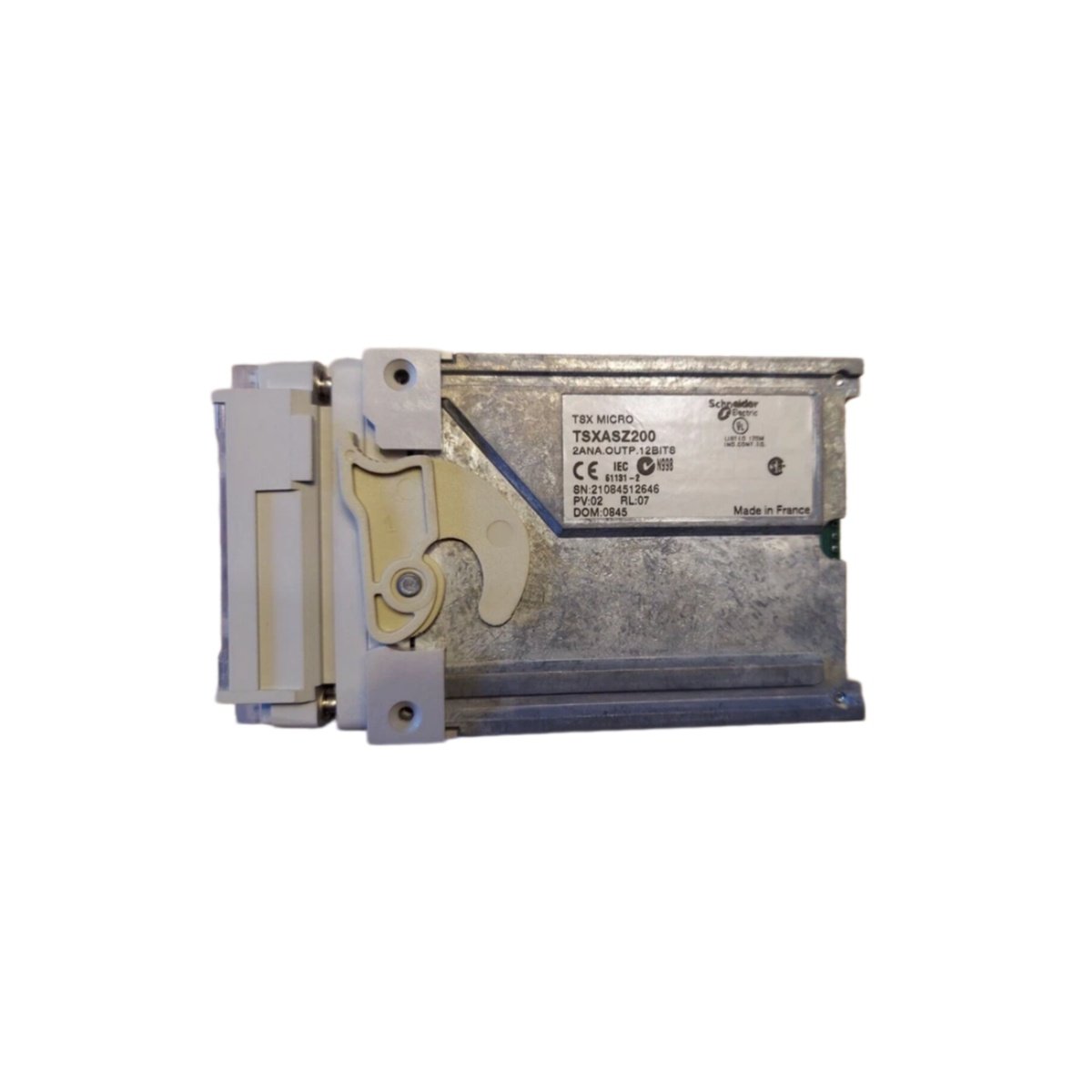

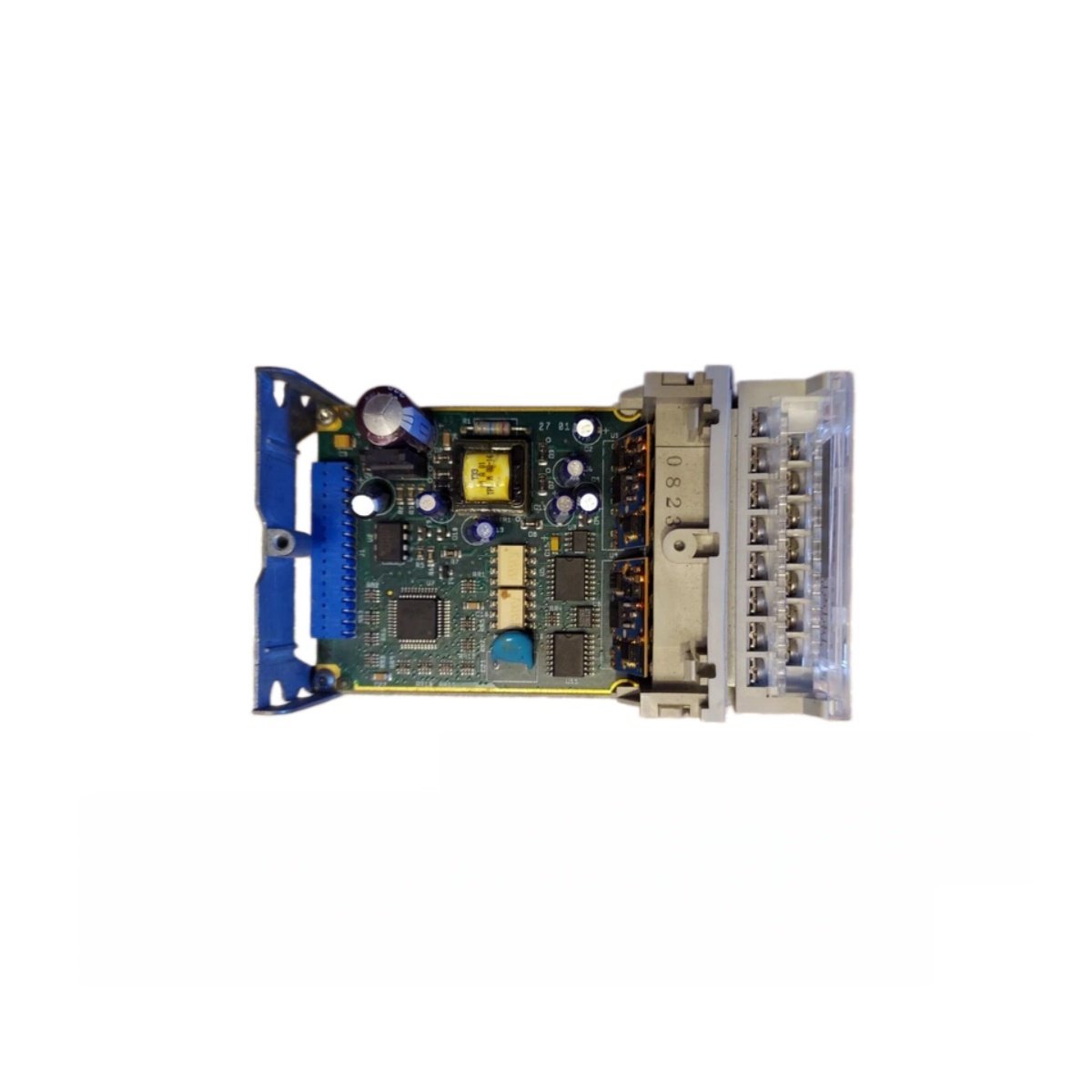

Precision Control with the TSXASZ200
This analog output module delivers four isolated channels for high-accuracy signal generation. The TSXASZ200 produces output signals in either 0–20 mA or 4–20 mA current loops. Each channel offers 12-bit resolution, ensuring fine-grained control over connected actuators. Furthermore, the module provides galvanic isolation between the internal bus and each output channel. This isolation protects your PLC system from ground loops and electrical noise. The TSXASZ200 integrates seamlessly into the Modicon Premium platform for unified control solutions.
Technical Specifications and Physical Dimensions
The TSXASZ200 operates within a temperature range of 0 °C to 60 °C for consistent industrial performance. It measures 102 mm in height and 99 mm in depth, matching the standard Premium module footprint. The unit weighs approximately 0.28 kg, contributing minimally to your system’s total weight. Each output channel features a load impedance range of 0 to 500 ohms for flexible field device compatibility. Moreover, the module exhibits an output accuracy of ±0.5% of full scale for reliable process control. The update time per channel reaches 5 ms, enabling responsive analog adjustments.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Analog Output Module |
| Part Number | TSXASZ200 |
| Number of Outputs | 4 (isolated) |
| Output Signal | 0–20 mA / 4–20 mA |
| Resolution | 12 bits |
| Load Impedance | 0 to 500 Ω |
| Accuracy | ±0.5% of full scale |
| Update Time | 5 ms per channel |
| Isolation | Galvanic (bus to channel) |
| Dimensions (H x D) | 102 mm x 99 mm |
| Weight | Approx. 0.28 kg (0.62 lb) |
| Operating Temp. | 0 °C to 60 °C |
Installation and Configuration Guidelines
This module provides precise analog control for variable-speed drives and valve positioners. First, power down the system before inserting the TSXASZ200 into the backplane slot. Then, connect the output wires to the appropriate terminals using shielded twisted-pair cables. Proper shielding minimizes electromagnetic interference in sensitive analog circuits. For best accuracy, always route analog wiring away from high-power AC cables. Additionally, configure the output ranges using the programming software to match your field devices. The TSXASZ200 complies with IEC 61131-2 standards, guaranteeing reliable operation in demanding environments.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
