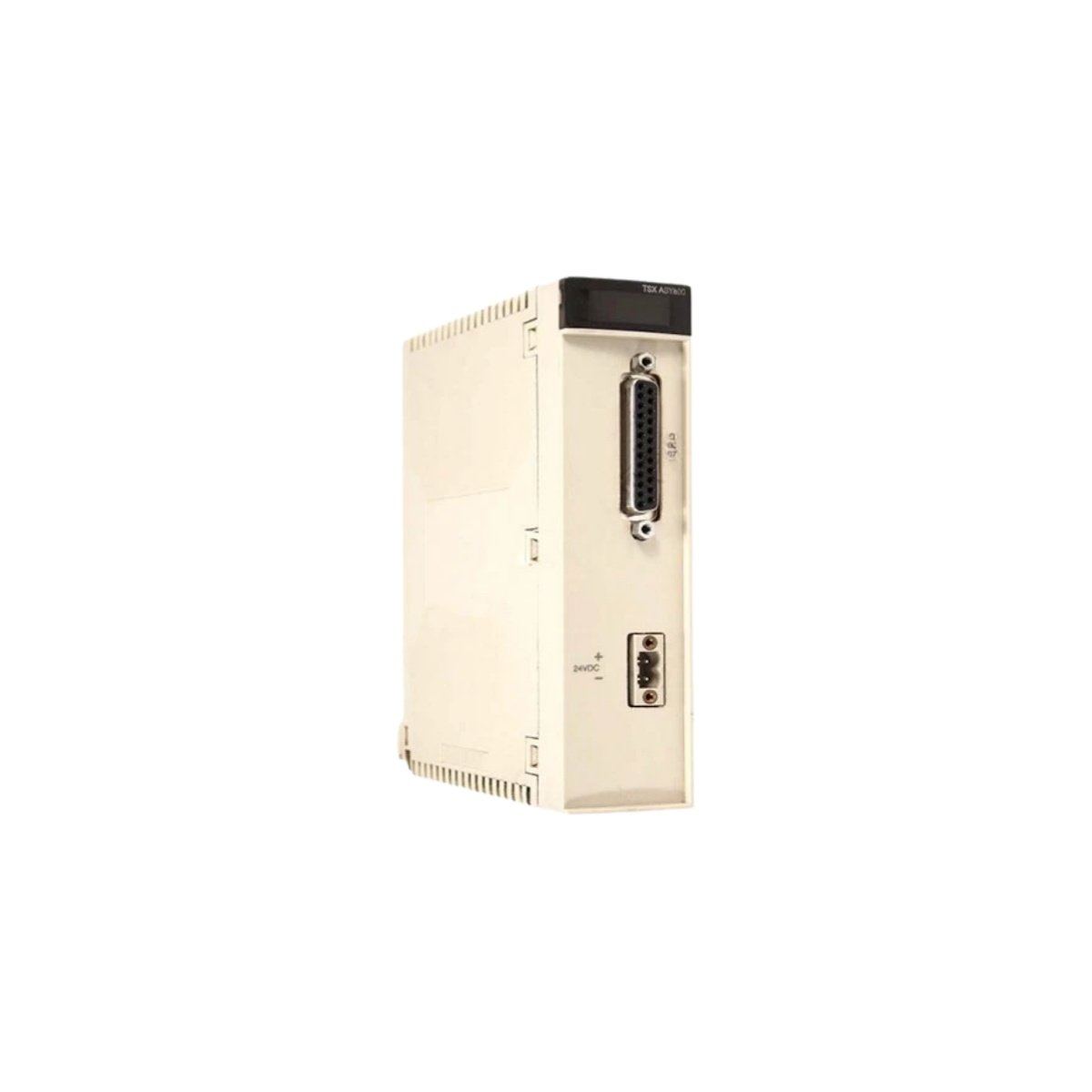

The Schneider TSXASY800 generates analog output signals inside Modicon Premium automation systems. Engineers specify this module when precise current or voltage control drives field actuators. Consequently, the unit delivers reliable signal conversion across continuous plant operations.

Physical Dimensions and Weight Data

Cabinet space often limits how technicians arrange analog hardware along the backplane. Therefore, this module keeps a compact profile while preserving full channel density. It weighs roughly 0.7 kg and measures 250 mm in length. Additionally, its width spans 100 mm with a depth of 120 mm.

Interfaces and Connectivity Features

Reliable analog control depends on secure terminations at every output point. The unit provides screw terminals that accept wires up to 2.5 mm². Furthermore, front-panel LEDs let technicians verify channel and fault status instantly. The module mates directly with Premium backplane connectors without additional adapters.

Component Count and Construction Details

Internal construction shapes both measurement stability and service life. This module carries more than 210 discrete components across its output stages. Moreover, isolation barriers separate field circuits from internal logic. The housing material meets flame-retardant standards for industrial panels.

Key Technical Specifications

Output Accuracy and Compliance

Stable analog output directly influences overall control loop precision. The module holds accuracy within ±0.1% across the full signal range. Meanwhile, isolation voltage reaches 1500 VDC between field wiring and internal logic. Diagnostic coverage exceeds 99%, which strengthens fault detection.

Industrial sites also demand strict safety certifications before deployment. The module complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
